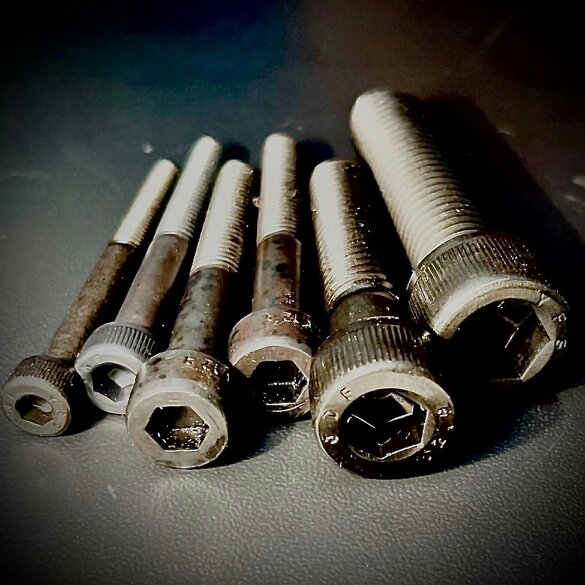

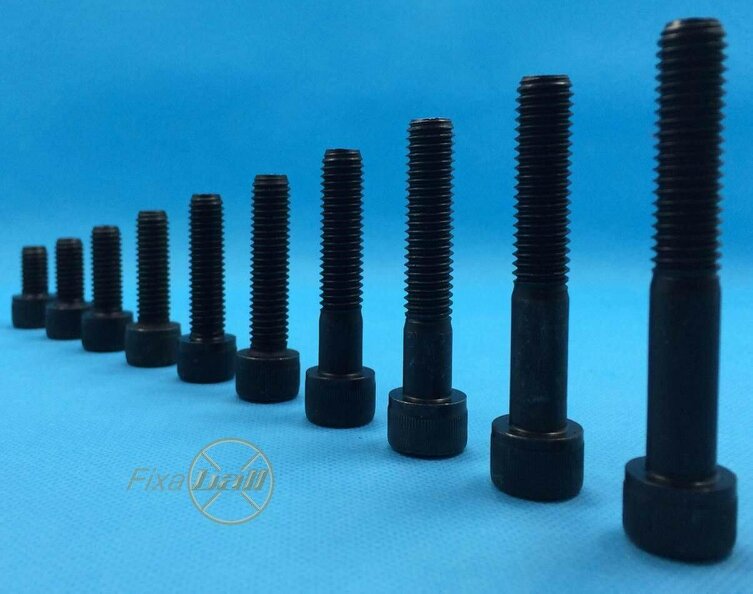

Fixaball M22 Socket Cap Allen Screw Bolt 12.9 Self Colour

For high-tensile fastening applications, the Fixaball M22 socket cap screw bolt is manufactured from Grade 12.9 steel with a self colour black finish. It features a cylindrical cap head with an Allen/hexagon socket and a metric coarse M22 x 2.5mm pitch thread.

Produced to DIN 912 and ISO 4762, this fixing is available in a range of lengths with fully threaded and partially threaded options. Bolt lengths do not include the head.

Key features

• High Tensile Steel Grade 12.9
• Self colour/black finish

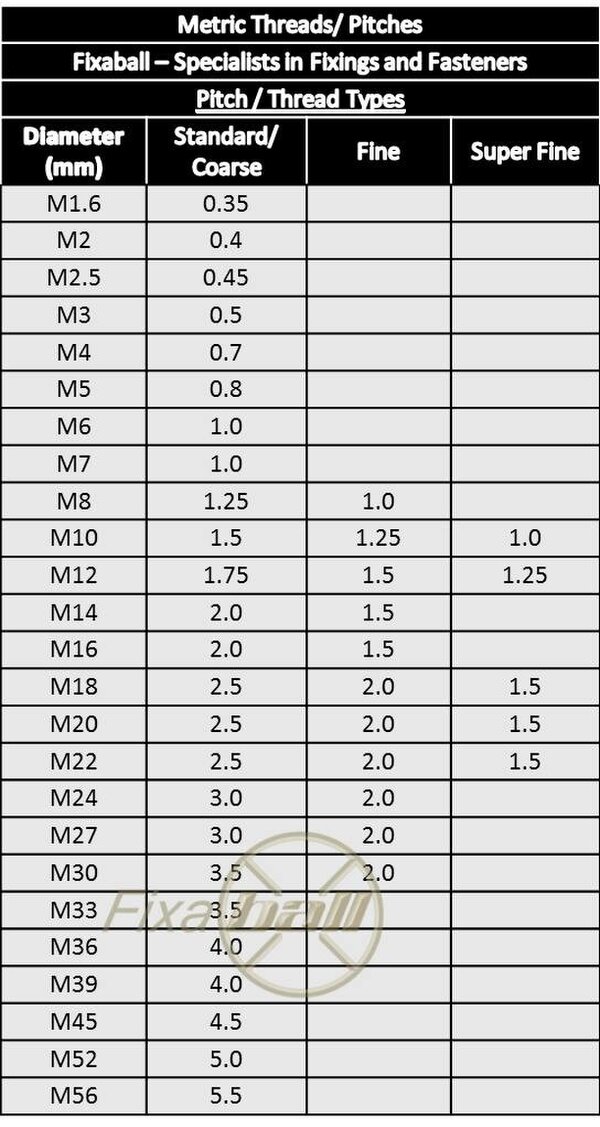

• Metric coarse thread: M22 x 2.5mm pitch
• DIN 912 and ISO 4762

Specifications

• Head diameter: 33.18mm
• Head height: 22.4mm

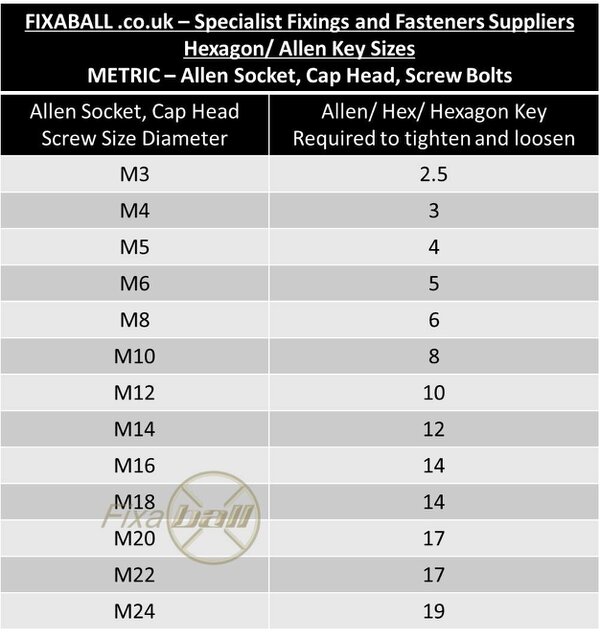

• Allen key size: 17mm

Available options

• 40mm - fully threaded
• 45mm - fully threaded
• 50mm - fully threaded
• 55mm - fully threaded
• 60mm - fully threaded
• 65mm - fully threaded
• 70mm - fully threaded
• 75mm - fully threaded
• 80mm - partially threaded
• 90mm - partially threaded
• 100mm - partially threaded
• 110mm - partially threaded
• 120mm - partially threaded
• 130mm - partially threaded
• 140mm - partially threaded
• 150mm - partially threaded
• 160mm - partially threaded
• 180mm - partially threaded
• 190mm - partially threaded
• 200mm - partially threaded
• 220mm - partially threaded

Sizing

• Head diameter 33.18mm
• Head height 22.4mm

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : A9I7BNJD1I
