Fixaball 5mm Spring Tension Pin Stainless Coiled Roll Slotted Heavy

Fixaball 5mm Spring Tension Pin Stainless Coiled Roll Slotted Heavy

Name: Fixaball 5mm Spring Tension Pin Stainless Coiled Roll Slotted Heavy
Brand: Fixaball
SKU: 6LXD8TXY8J
Price: 13.24 GBP
Availability: InStock

From £4.86

Fast & Free Delivery *

Backed by the Rackhams Guarantee

Easy Returns

& UK Customer Support

Rated Excellent by Customers on Google

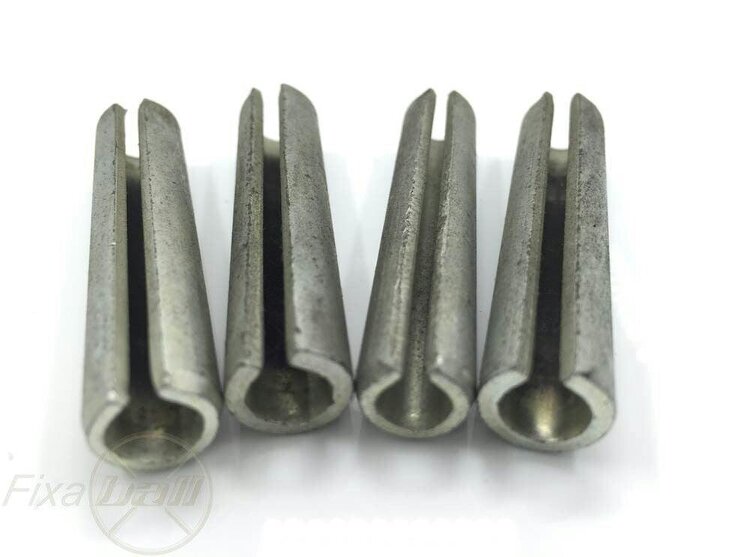

For fastening machine components in position, this Fixaball slotted spring pin is made from A1 stainless steel in a heavy type format. With a 5mm diameter, it is produced to ISO 8752 and DIN 1481 standards.

The pin has a slotted body with a diameter larger than the hole diameter, along with a chamfer on one or both ends to help start insertion. As it is driven into the hole, the pin compresses to fit and applies radial force against the hole wall for a self-retaining hold. It is suitable for double shear applications.

Available options

5.0 x 12
5.0 x 14
5.0 x 16
5.0 x 18
5.0 x 20
5.0 x 24
5.0 x 26
5.0 x 28
5.0 x 30
5.0 x 32
5.0 x 36
5.0 x 40

Key features

5mm diameter
A1 stainless steel
Heavy type
Slotted spring pin
Self-retaining fastener
Suitable for double shear applications
Manufactured to ISO 8752 and DIN 1481

Sizing

5.0 x 12
5.0 x 14
5.0 x 16
5.0 x 18
5.0 x 20
5.0 x 24
5.0 x 26
5.0 x 28
5.0 x 30
5.0 x 32
5.0 x 36
5.0 x 40

Rackhams Reference : 6LXD8TXY8J

Type

Spring Pin

Colour

Silver
