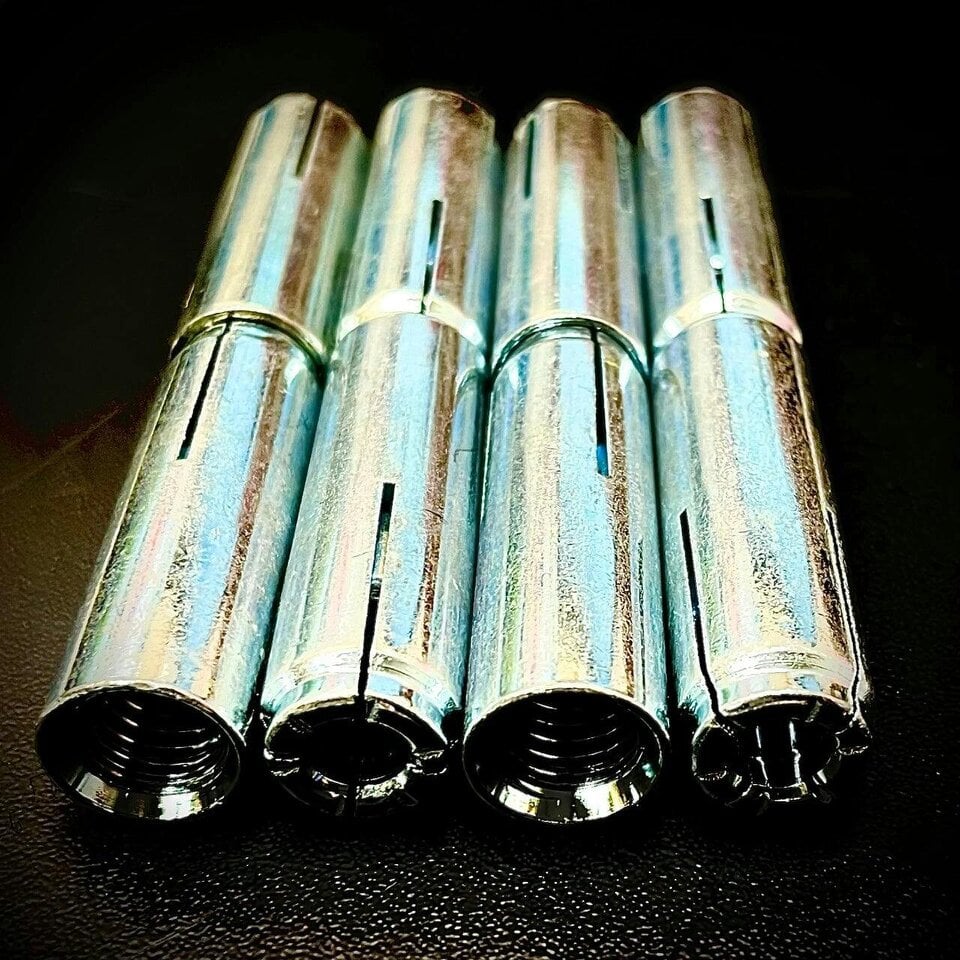

Fixaball M20 Drop In Masonry Concrete Anchor Zinc

For flush-fit anchoring in solid concrete and masonry, this Fixaball drop-in anchor features an M20 internal thread and a zinc-plated finish. It provides an internally threaded fixing point for use with bolts or threaded rod, with the anchor remaining in place when the fixture is removed.

Suitable for light to heavy-duty applications in solid concrete, it is used across mechanical and electrical services, suspension systems, cable trays, signs and hand rails. Full expansion is achieved with the correct shouldered setting punch, while setting tool stamp marks allow a visual check of complete expansion.

Key features

• Internal thread diameter: M20
• Zinc plated
• Suitable for masonry, brick, concrete and non-porous stone
• For use with bolts or threaded rod of any length
• Flush fitting with no protrusion when not in use
• Permanent anchorage point in solid concrete, brick or masonry

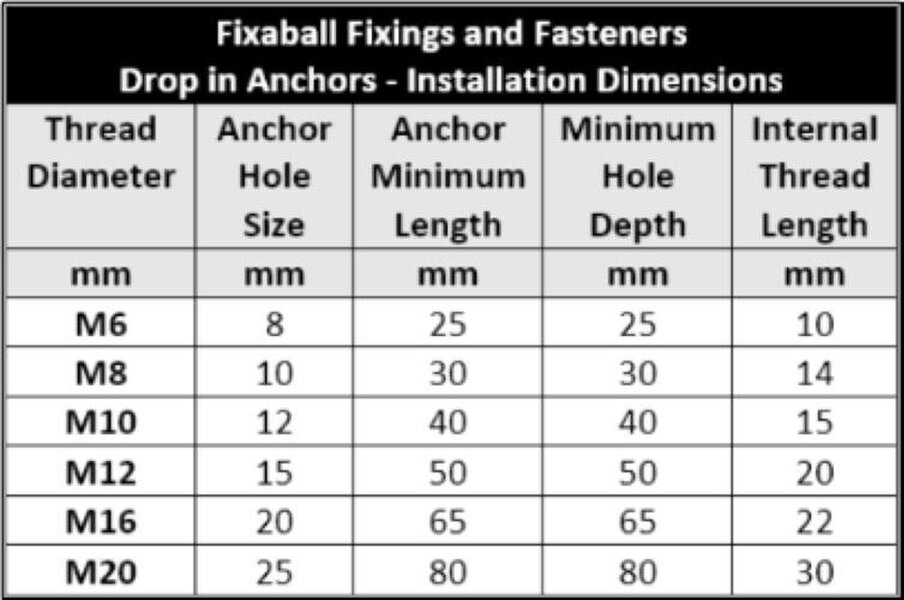

Specifications

• Anchor hole size: 25mm
• Minimum hole depth: 80mm
• Internal thread length: 30mm

Sizing

• Anchor length: 80mm

Safety information

• Use a hammer drill and a carbide tipped masonry drill bit matched to the outside diameter of the anchor.
• Hole depth must exceed the minimum embedment by around 5%.
• Clear the hole of debris with a brush and blow out pump before installation.
• Use the relevant setting tool of the same diameter as the anchor until it contacts the cone.
• Tighten to the recommended torque using a torque wrench.
