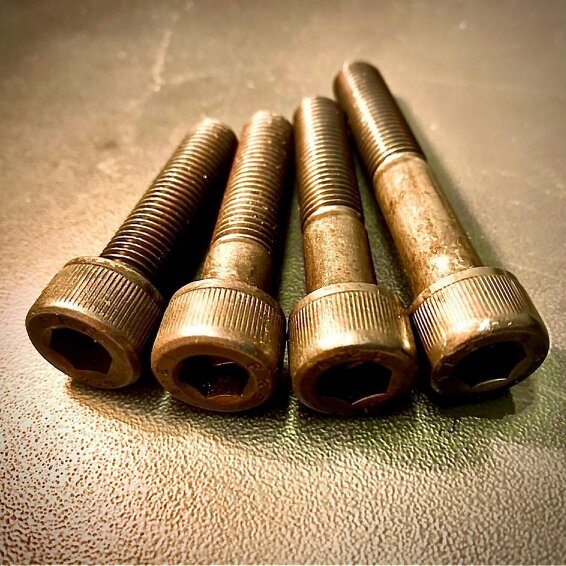

Fixaball M20x1.5 Extra Fine Socket Cap Screw High Tensile 12.9

For fine-thread fastening applications, this Fixaball socket cap screw features an M20 x 1.5mm extra fine metric thread and a high tensile steel Grade 12.9 construction. Finished in self colour black, it is made to DIN 912 and uses a hexagonal socket drive.

The cylindrical cap head has a 30mm head diameter, a 20mm head height and takes a 17mm Allen key. Length options are available from 40mm to 80mm, with bolt length measured excluding the head.

Available options

• 40mm
• 50mm
• 60mm
• 70mm
• 80mm

Key features

• High tensile steel Grade 12.9
• Self colour black finish
• Metric fine thread: M20 x 1.5mm pitch
• Hexagonal socket cap head
• Standard: DIN 912

Sizing

• Head diameter: 30mm
• Head height: 20mm
• Allen key size: 17mm
• Available lengths: 40mm, 50mm, 60mm, 70mm, 80mm

Specifications

• Thread type: metric fine
• ISO 4762 / DIN 912
• Bolt lengths do not include the head

Rackhams Reference : 5Z7CM1AD2K
