Fixaball Tech Cladding Self Drilling Screw High Thread EPDM Washer Heavy

Fixaball Tech Cladding Self Drilling Screw High Thread EPDM Washer Heavy

Name: Fixaball Tech Cladding Self Drilling Screw High Thread EPDM Washer Heavy
Brand: Fixaball
SKU: 1E8XCNGURK
Price: 495.55 GBP
Availability: InStock

From £35.56

Fast & Free Delivery *

Backed by the Rackhams Guarantee

Easy Returns

& UK Customer Support

Rated Excellent by Customers on Google

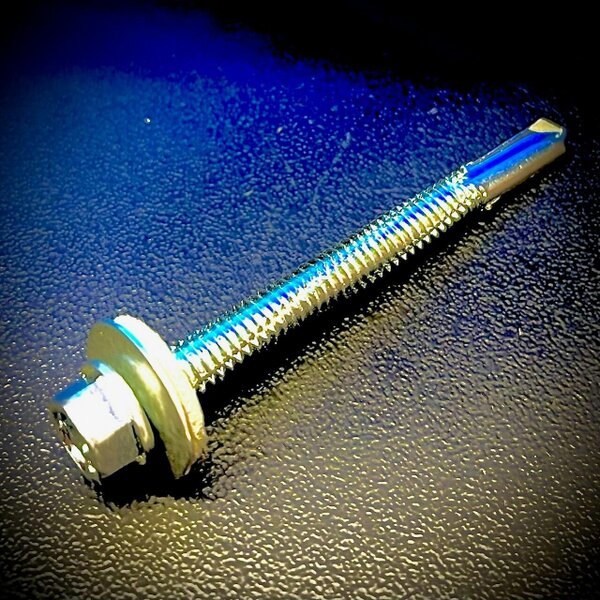

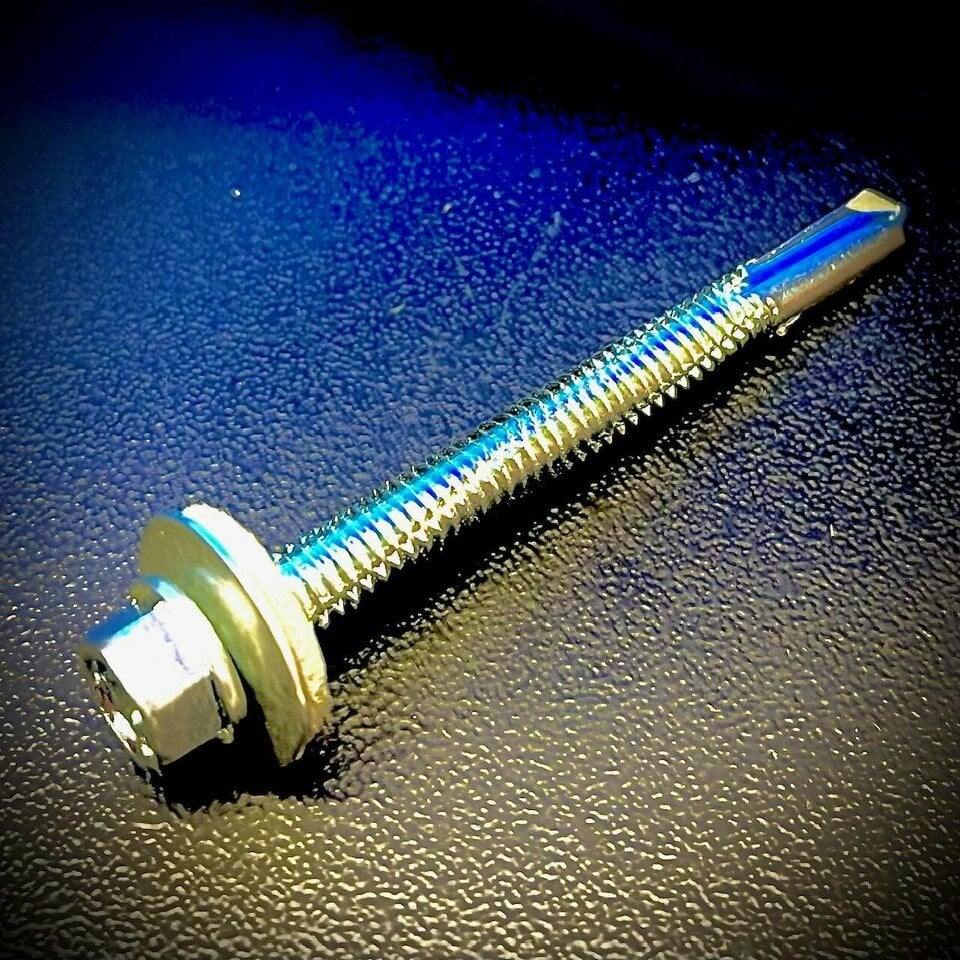

For roofing and cladding applications on heavy section steel, the JCP Metalfix high thread sheet screw is a self-drilling fixing with a zinc plated finish and EPDM washer. It is suitable for steel-to-steel fixing on thick sections from 4mm to 12.5mm and is used for constructing industrial units.

Each screw has a hexagon head for an 8mm socket and a 19mm washer with EPDM rubber seal. Under pressure, the rubber washer beneath the aluminium flange expands to form a permanent weather seal. This range covers 5.5mm diameter screws in 75mm, 105mm and 130mm lengths.

Available options

5.5 x 75mm
5.5 x 105mm
5.5 x 130mm

Key features

Thread diameter: 5.5mm
Finish: zinc plated
Suitable for steel to steel fixing
Steel thickness: 4mm-12mm
19mm washer with EPDM rubber seal
Hexagon head with 8mm socket

Specifications

Material section thickness: Heavy
Point type: 3
Minimum coating: 8µm
Application: composite panel fixing to heavy section steel, e.g. I beams and other structural supports

Sizing

5.5 x 75mm
5.5 x 105mm
5.5 x 130mm

Rackhams Reference : 1E8XCNGURK

Colour

Gold, Silver

Material

Steel

Length

75mm, 130mm, 105mm
