Fixaball Tech Cladding Self Drilling Screw High Thread EPDM Washer Light

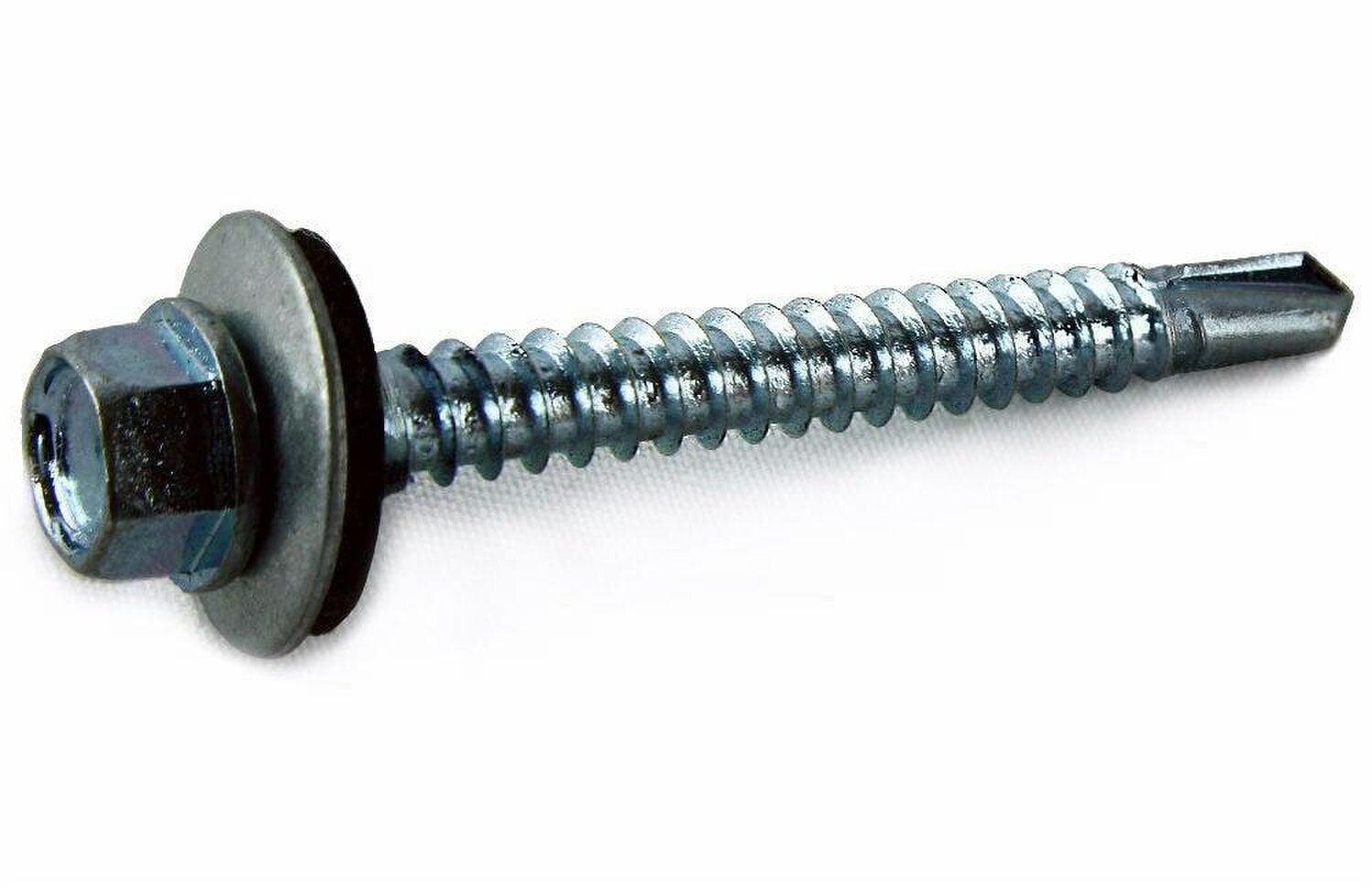

For roofing and cladding applications, the JCP Metalfix high thread sheet screw is a self-drilling fixing for steel to steel installation in light section material. This zinc plated screw is supplied with a 19mm washer and EPDM seal, with an 8mm hexagon head socket.

It is suited to thin and light steel sections from 1.2mm to 3.6mm thick, including composite panel fixing to light section steel such as I beams and other structural supports. The aluminium flange and 19mm rubber washer expand under pressure to form a permanent weather seal.

Available options

• 5.5 x 65mm
• 5.5 x 70mm
• 5.5 x 75mm
• 5.5 x 85mm
• 5.5 x 100mm
• 5.5 x 125mm
• 5.5 x 150mm

Key features

• Thread diameter: 5.5mm
• Finish: zinc plated
• Suitable for steel to steel fixing in thin and light sections
• Steel thickness: 1.2mm-3mm
• 19mm washer with EPDM seal
• Hexagon head with 8mm socket
• Point type: 3

Specifications

• Minimum coating: 8µm
• Application: constructing industrial units
• Composite panel fixing to light section steel, e.g. I beams and other structural supports

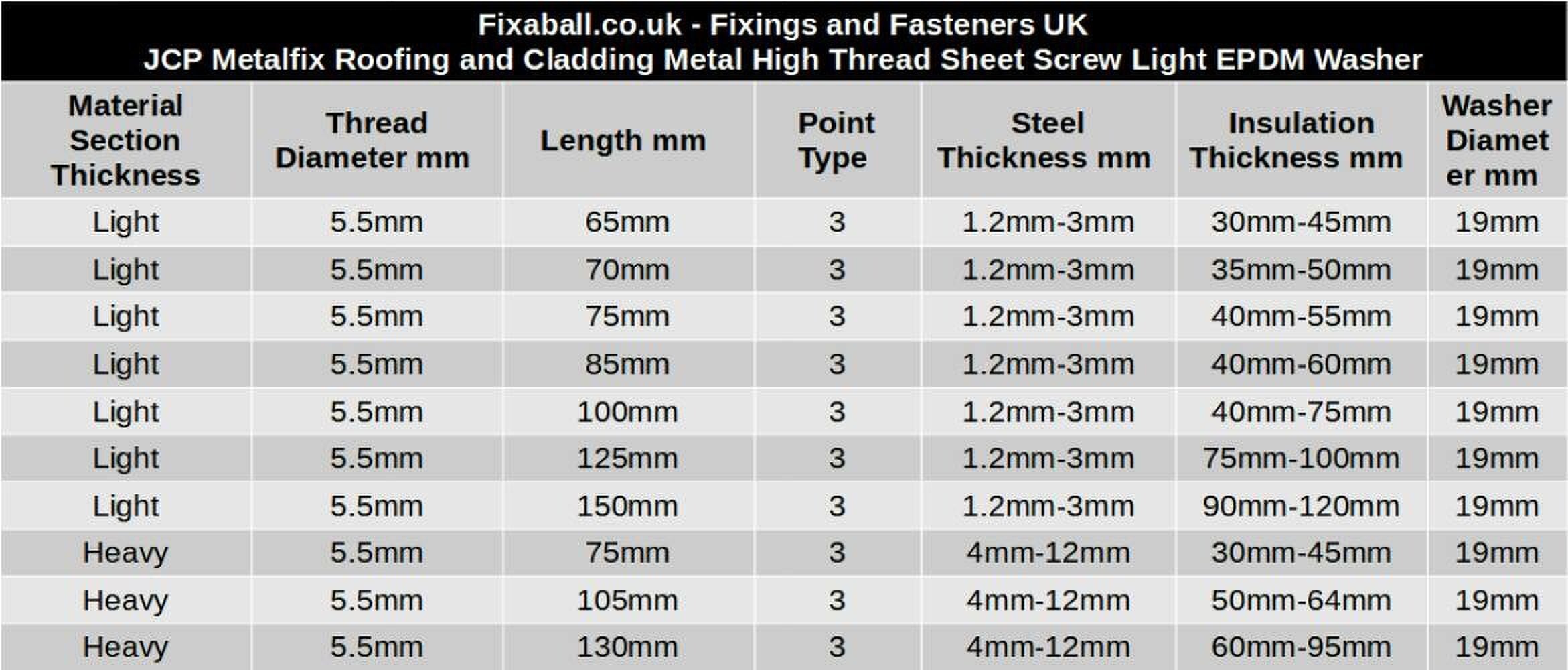

Sizing

• 5.5 x 65mm
• Steel thickness 1.2mm-3mm, insulation thickness 30mm-45mm, washer diameter 19mm
• 5.5 x 70mm
• Steel thickness 1.2mm-3mm, insulation thickness 35mm-50mm, washer diameter 19mm
• 5.5 x 75mm
• Steel thickness 1.2mm-3mm, insulation thickness 40mm-55mm, washer diameter 19mm
• 5.5 x 85mm
• Steel thickness 1.2mm-3mm, insulation thickness 40mm-60mm, washer diameter 19mm
• 5.5 x 100mm
• Steel thickness 1.2mm-3mm, insulation thickness 40mm-75mm, washer diameter 19mm
• 5.5 x 125mm
• Steel thickness 1.2mm-3mm, insulation thickness 75mm-100mm, washer diameter 19mm
• 5.5 x 150mm
• Steel thickness 1.2mm-3mm, insulation thickness 90mm-120mm, washer diameter 19mm
