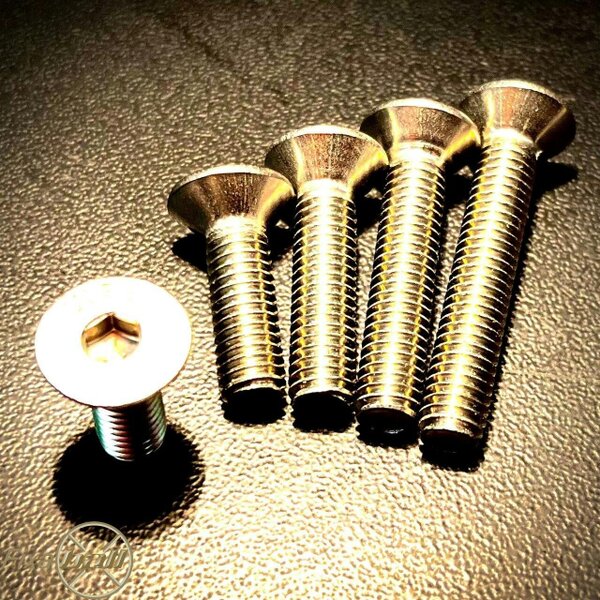

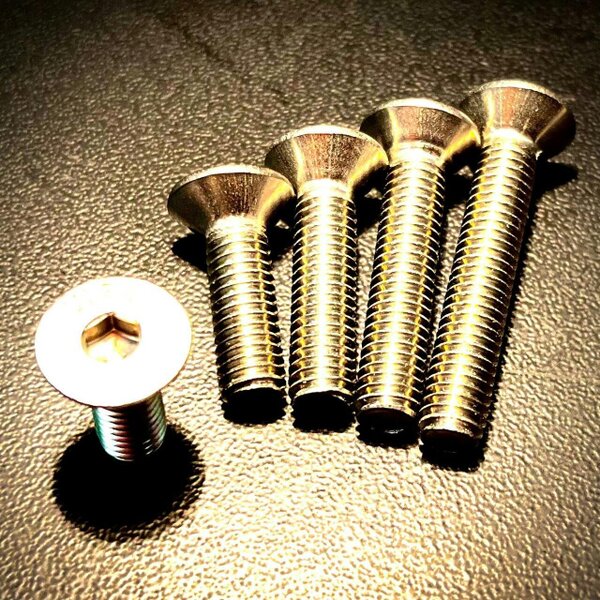

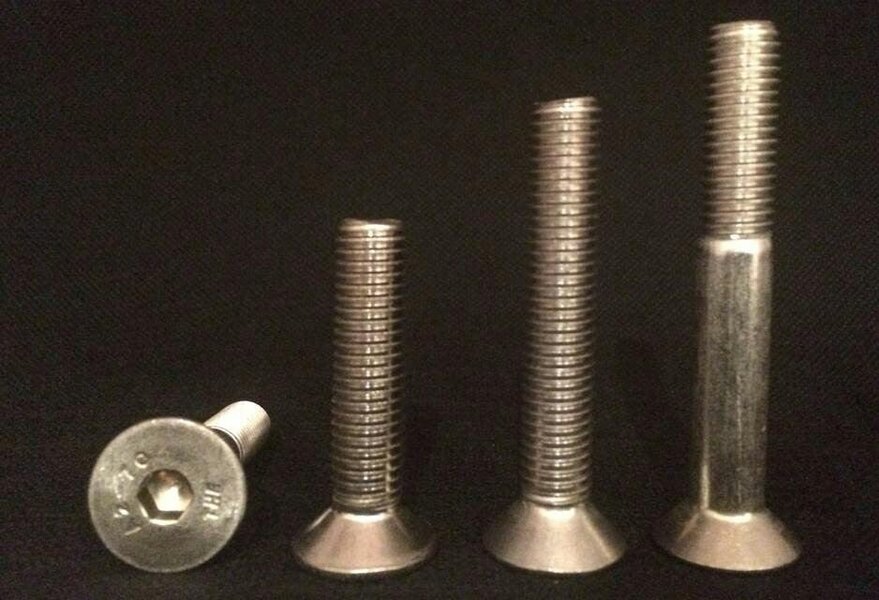

Fixaball M6 Countersunk Socket Screw A2 Stainless DIN7991

For flush-fitting fastening, the Fixaball M6 countersunk socket screw is manufactured in A2/304 stainless steel with a hex or Allen socket drive. This DIN 7991 and ISO 10642 fixing sits level with the connecting surface when fully tightened, making it suitable where a neat, low-profile finish is required.

The thread diameter is 6mm with a 1.0mm thread pitch. Length on this countersunk fixing is measured from the tip to the top.

Available options

• M6 x 10
• M6 x 12
• M6 x 16
• M6 x 20
• M6 x 25
• M6 x 30
• M6 x 35
• M6 x 40
• M6 x 45
• M6 x 50
• M6 x 55
• M6 x 60
• M6 x 65
• M6 x 70
• M6 x 75
• M6 x 80

Key features

• Thread diameter: 6mm
• Material and finish: A2/304 stainless steel
• Standards compliance: DIN 7991, ISO 10642
• Hex key size: 4mm
• Appearance: dull grey
• Level of corrosion resistance: good
• Typical applications: hygiene, external with intermittent weathers

Specifications

• Thread pitch: 1.0mm
• Head diameter: 12mm
• Head height: 3.3mm
• Grade: A2-70

Sizing

• M6 x 10
• M6 x 12
• M6 x 16
• M6 x 20
• M6 x 25
• M6 x 30
• M6 x 35
• M6 x 40
• M6 x 45
• M6 x 50
• M6 x 55
• M6 x 60
• M6 x 65
• M6 x 70
• M6 x 75
• M6 x 80

Rackhams Reference : KV7YTRZUZJ
