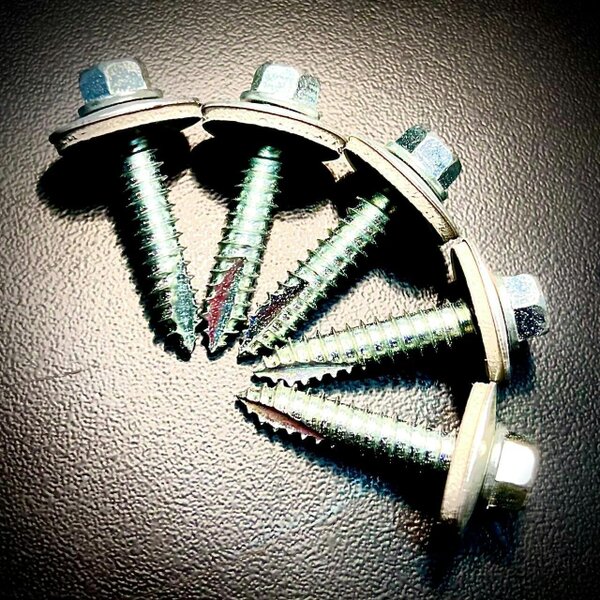

Fixaball Tech Cladding Tech Wood Gash Screws EPDM Washer

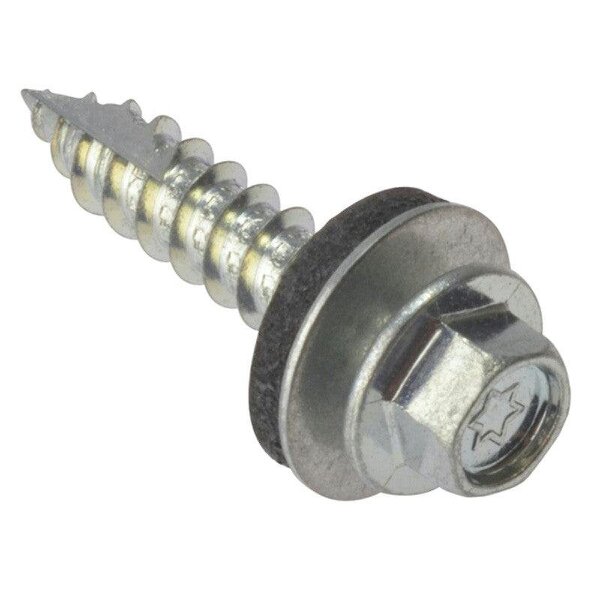

For sheet-to-timber fixing, JCP Metalfix roofing screws feature a self-drilling gash point with a cutting edge for use with wooden timber. This zinc-plated fixing is supplied with either a 16mm or 19mm washer and an EPDM seal, which expands beneath the aluminium flange under pressure to create a permanent weather-seal.

An 8mm hexagon head allows installation with the corresponding socket. These screws are used for constructing industrial units and are available in a range of lengths and washer sizes to suit different fixture thicknesses.

Available options

• 16mm washer, 6.3 x 25mm
• 19mm washer, 6.3 x 25mm
• 16mm washer, 6.3 x 32mm
• 19mm washer, 6.3 x 32mm
• 16mm washer, 6.3 x 45mm
• 19mm washer, 6.3 x 45mm
• 16mm washer, 6.3 x 60mm
• 19mm washer, 6.3 x 60mm
• 16mm washer, 6.3 x 80mm
• 19mm washer, 6.3 x 80mm
• 16mm washer, 6.3 x 100mm
• 16mm washer, 6.3 x 125mm
• 19mm washer, 6.3 x 100mm
• 19mm washer, 6.3 x 125mm
• 19mm washer, 6.3 x 150mm

Key features

• Thread diameter: 6.3mm
• Finish: zinc plating
• Self-drilling gash point with cutting edge
• For wooden timber and sheet-to-timber fixing
• 15mm timber insertion
• 16mm or 19mm washer with EPDM seal
• Hexagon head with 8mm socket
• Application: constructing industrial units

Specifications

• Steel thickness: 0.7mm-1.4mm
• EPDM rubber washer beneath the aluminium flange expands under pressure and forms a permanent weather-seal
• Max fixture thickness varies by selected size

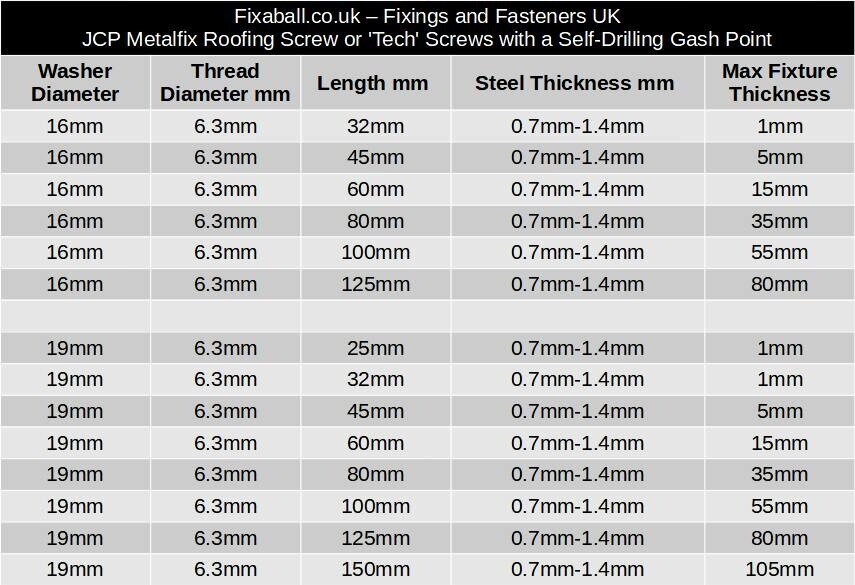

Sizing

• 16mm washer, 6.3mm thread diameter, 32mm length, max fixture thickness 1mm
• 16mm washer, 6.3mm thread diameter, 45mm length, max fixture thickness 5mm
• 16mm washer, 6.3mm thread diameter, 60mm length, max fixture thickness 15mm
• 16mm washer, 6.3mm thread diameter, 80mm length, max fixture thickness 35mm
• 16mm washer, 6.3mm thread diameter, 100mm length, max fixture thickness 55mm
• 16mm washer, 6.3mm thread diameter, 125mm length, max fixture thickness 80mm
• 19mm washer, 6.3mm thread diameter, 25mm length, max fixture thickness 1mm
• 19mm washer, 6.3mm thread diameter, 32mm length, max fixture thickness 1mm
• 19mm washer, 6.3mm thread diameter, 45mm length, max fixture thickness 5mm
• 19mm washer, 6.3mm thread diameter, 60mm length, max fixture thickness 15mm
• 19mm washer, 6.3mm thread diameter, 80mm length, max fixture thickness 35mm
• 19mm washer, 6.3mm thread diameter, 100mm length, max fixture thickness 55mm
• 19mm washer, 6.3mm thread diameter, 125mm length, max fixture thickness 80mm
• 19mm washer, 6.3mm thread diameter, 150mm length, max fixture thickness 105mm

Rackhams Reference : ZJPM6X5FBQ
