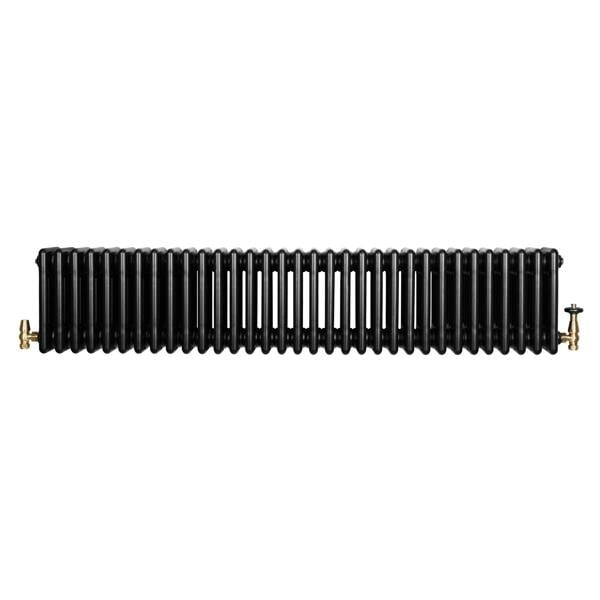

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1505mm - Black

A bold update for classic interiors, the MonsterShop Traditional 4 Column Radiator & Valves combines a horizontal, multi-column profile with a sleek black finish. Measuring 300mm high and 1505mm wide, it brings a strong architectural look to living spaces, hallways and larger rooms, while the 33-column layout supports a BTU rating @ 60 of 5706.

Built from 1.5mm carbon steel and finished with triple layered powder coating, it’s made for long-term use and everyday practicality. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, and the supplied satin brass thermostatic valve set adds precise control via a rotary knob with a 6–28°C temperature range. CE & UKCA certification, testing to BS EN 442 & ISO9001:2015 standards, and a 15-year guarantee complete the specification.

Key features

• Traditional 4 column horizontal radiator with 33 columns
• Size: 300mm (H) x 1505mm (W)
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Heat output: 5706 BTU rating @ 60
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set (rotary knob, 6–28°C)
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; 15-year guarantee

Specifications

Radiator

• Colour: Black
• Weight: 40.3kg
• Height: 300mm / 30cm / 11.8”
• Width: 1505mm / 150.5cm / 59.3”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• BTU rating @ 50: 4488
• BTU rating @ 60: 5706
• Watt rating @ 50: 1315
• Watt rating @ 60: 1672
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 17m²
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
