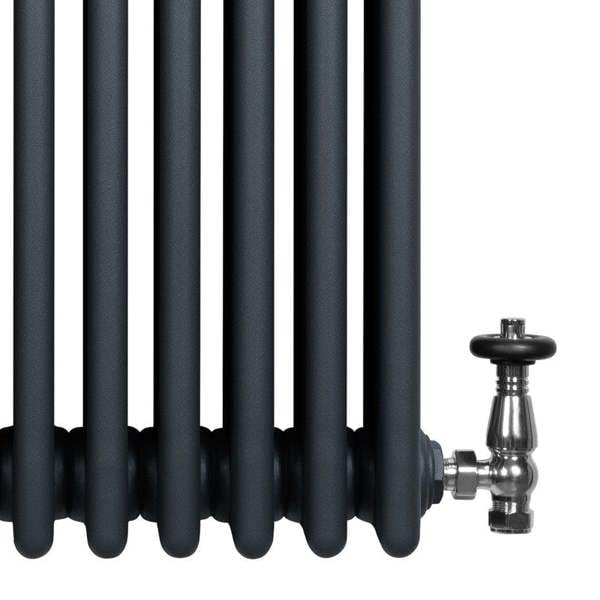

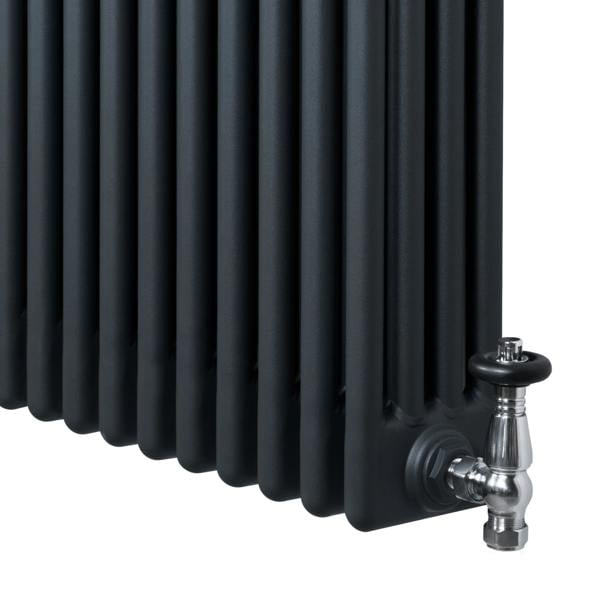

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 290mm - Anthracite Grey

Bring a refined, architectural look to your heating with the Monstershop Traditional 4 Column Radiator & Valves in anthracite grey. Measuring 1800 x 290mm, it pairs a tall vertical profile with a triple layered powder-coated finish for a clean, contemporary statement in living spaces, hallways and larger rooms.

Made from 1.5mm carbon steel, this radiator uses 25mm tubes with 20mm gaps between them and connects via standard 0.5" BSP inlets/outlets. Heat output is rated at 5897 BTU at 60 (1728 watts) and 4628 BTU at 50 (1356 watts), with a recommended application area of 17m². Supplied with a chrome thermostatic valve set in an angled style, temperature control is handled by a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for regulating water flow.

Key features

• Traditional vertical column radiator with thermostatic valve set
• Size: 1800 x 290mm
• Heat output: 5897 BTU at 60
• Triple layered powder coating in anthracite grey
• Standard 0.5" BSP bore inlets/outlets
• Angled, rotary-knob thermostatic valves with 6–28 degrees range
• CE and UKCA certified
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite grey
• Weight: 40.1kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 70.9”
• Width: 290mm / 29cm / 11.4”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 6
• BTU rating at 50: 4628
• BTU rating at 60: 5897
• Watt rating at 50: 1356
• Watt rating at 60: 1728
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 17m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
