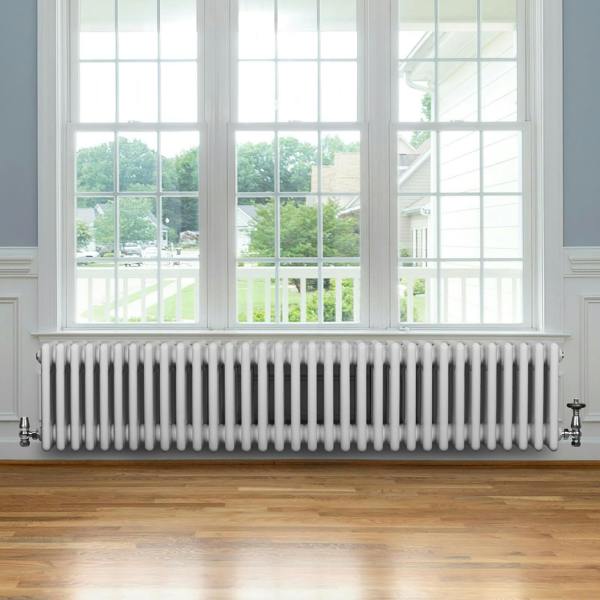

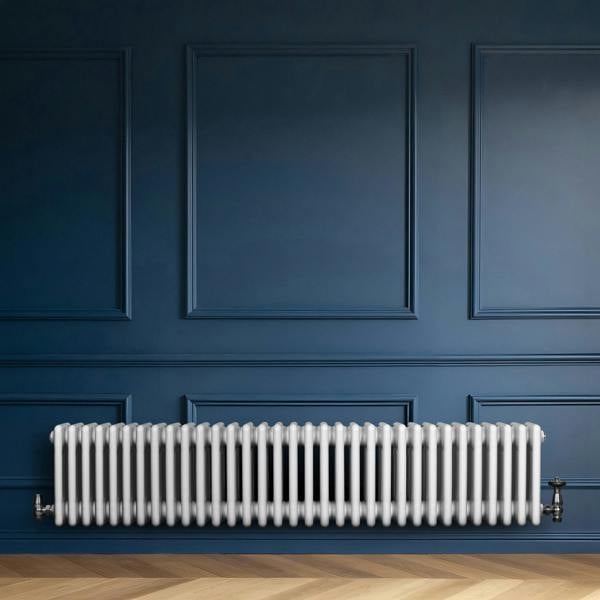

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1505mm - White

Bring a classic look to your heating with the Monstershop Traditional 4 Column Radiator & Valves, a horizontal radiator in a crisp white finish. Made from 1.5mm carbon steel and coated with a triple layered powder coating, it pairs a traditional column profile with a clean, contemporary presentation that suits a wide range of interiors.

Measuring 300mm high and 1505mm wide, this 33-column radiator delivers a heat output of 5706 BTU at 60 (1672 watts) and 4488 BTU at 50 (1315 watts). It uses standard 0.5" BSP inlets/outlets and is supplied with a chrome thermostatic valve set in an angled style, with rotary knob control and a 6–28 degrees temperature range. Secure brackets, a fixing kit and a flexible cleaning brush are included, alongside CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards, plus a 15 year guarantee.

Key features

• Traditional 4 column horizontal radiator with 33 columns
• 5706 BTU heat output at 60 (1672 watts)
• White finish with triple layered powder coating
• 1.5mm carbon steel construction
• Standard 0.5" BSP bore inlets/outlets
• Angled chrome thermostatic valve set with rotary knob control
• Temperature range: 6–28 degrees
• Includes brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015
• 15 year guarantee

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 40.3kg

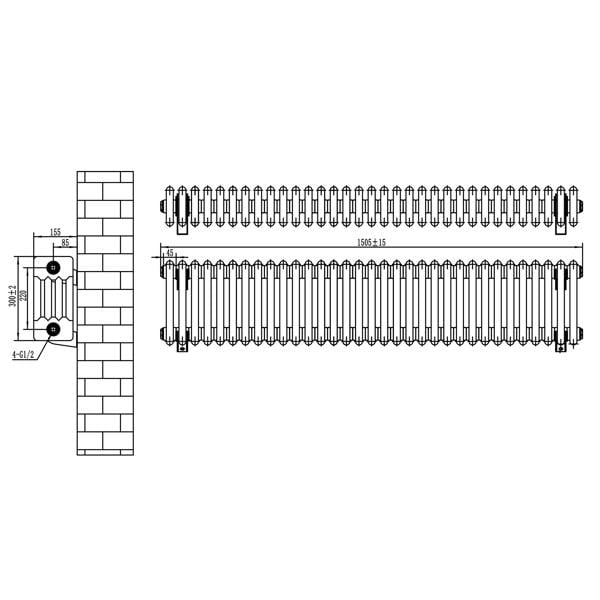

• Height: 300mm / 30cm / 11.8”
• Width: 1505mm / 150.5cm / 59.3”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 33
• BTU rating @ 50: 4488
• BTU rating @ 60: 5706
• Watt rating @ 50: 1315
• Watt rating @ 60: 1672
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 17m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve specifications

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
