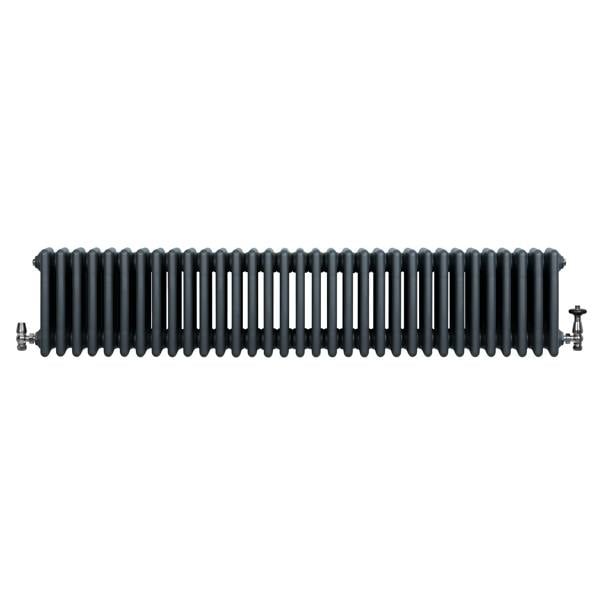

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1505mm - Anthracite Grey

Bring a confident, architectural look to your heating with the Monstershop Traditional 4 Column Radiator & Valves in anthracite grey. Measuring 300 x 1505mm, this horizontal, multi-column design pairs a classic profile with a bold, contemporary finish, making it a strong fit for living spaces, hallways and larger rooms.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it’s built for long-term use while keeping its clean-lined appearance. Heat output is rated at 5706 BTU @ 60 (1672 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Supplied with a chrome thermostatic valve set in an angled style, temperature control is handled via a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for regulating water flow.

Key features

• Traditional 4 column horizontal radiator with thermostatic valve set
• Size: 300 x 1505mm
• Heat output: 5706 BTU @ 60
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• CE & UKCA certified
• Tested to BS EN 442 & ISO9001:2015 standards
• 15 year quality guarantee

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 40.3kg
• Height: 300mm / 30cm / 11.8”
• Width: 1505mm / 150.5cm / 59.3”
• Radiator Depth: 140mm / 14cm / 5.5”
• Depth With Bracket: 155mm / 15.5cm / 6.1”
• Gap Between Tubes: 20mm / 2cm / 0.8”
• Individual Tube Size: 25mm / 2.5cm / 1”
• Number Of Columns: 33
• BTU Rating @ 50: 4488
• BTU Rating @ 60: 5706
• Watt Rating @ 50: 1315
• Watt Rating @ 60: 1672
• Max Working Temperature: 95°C
• Max Working Pressure: 12 Bar
• Test Pressure: 15.6 Bar
• Recommended Application Area: 17m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 85mm
• Valve-To-Valve Height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU Heating Systems
• CE Certificate: CE & UKCA

Valve specifications

• Colour: Silver Chrome
• Material: Powder Coated Brass
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control Style: Rotary Knob
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 10
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
• TRV Dimensions:137mm H x 85mm W x 55mm D
• Lockshield Dimensions: 87mm H x 75mm W x 34mm D

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
