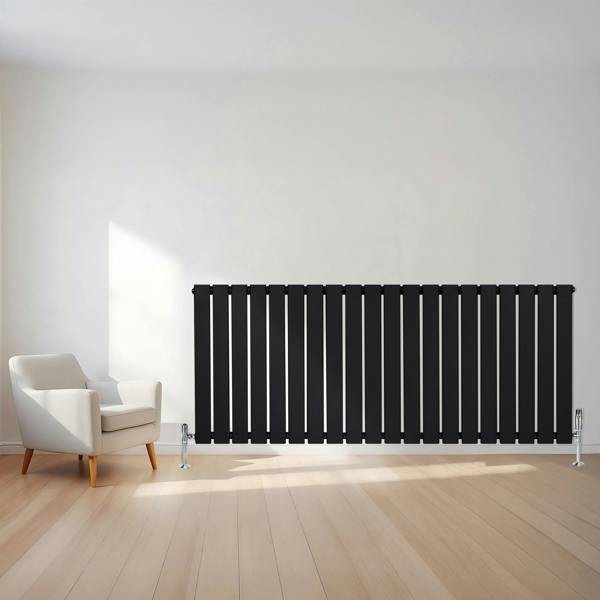

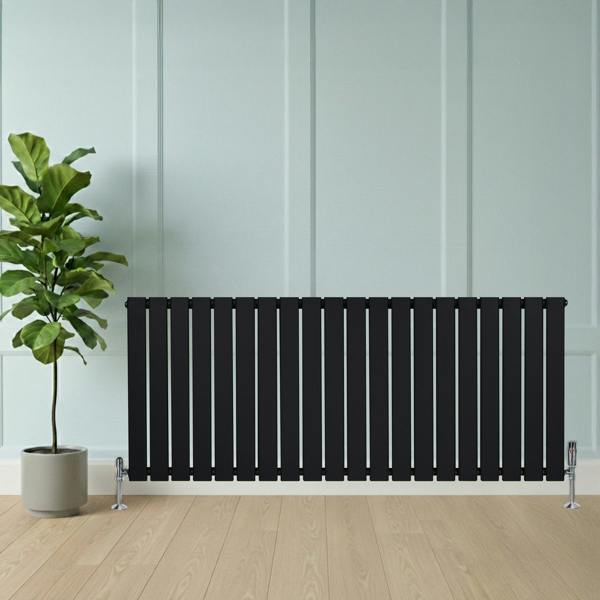

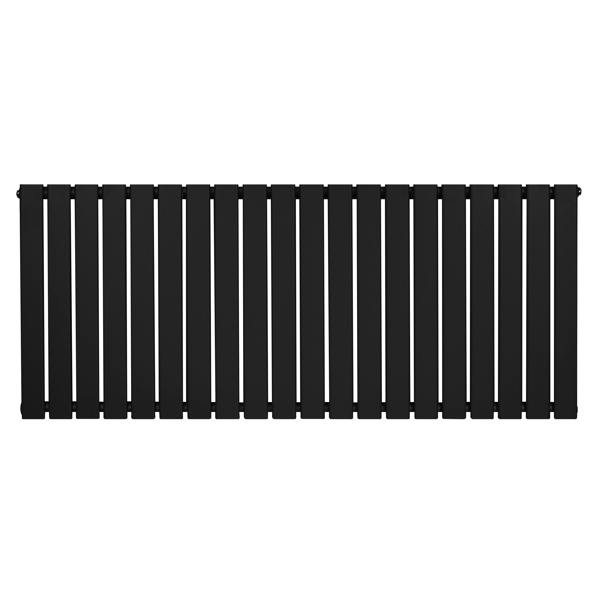

Monstershop Flat Single Column Radiator - 600 x 1400mm - Black

Bring a crisp, architectural look to your heating with the Monstershop Flat Single Column Radiator, finished in black and sized at 600 x 1400mm. Made from 1.5mm carbon steel with a triple layered powder coating, it pairs a clean, flat-front profile with a durable surface suited to everyday living.

With 20 columns and individual flat tubes measuring 60mm x 15mm, it delivers a heat output of 4335 BTU at 60 (1270W) and 3433 BTU at 50 (1006W). Standard 0.5" BSP inlets/outlets support straightforward valve selection, while the included brackets and fixing kit help keep installation neat. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification, alongside a 15-year guarantee.

Key features

• Flat single column radiator
• 600mm height and 1400mm width
• 20 columns with 60mm x 15mm flat tubes
• Triple layered powder coating in black
• Standard 0.5" BSP inlet/outlet size
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• 15-year guarantee

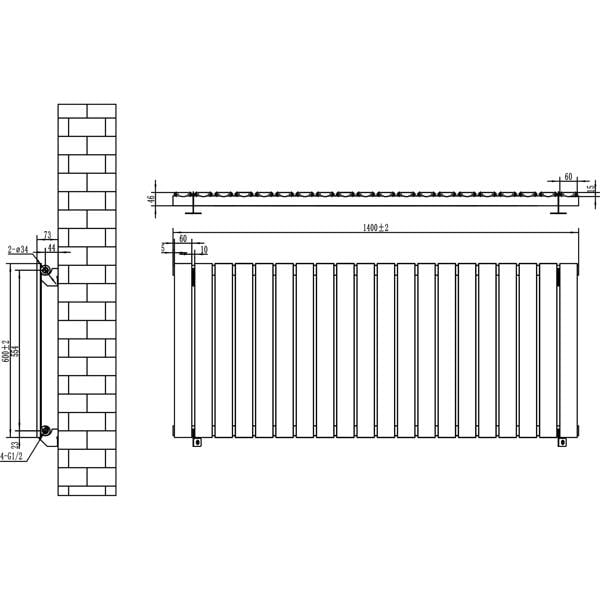

Specifications

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 22.8kg
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1400mm / 140cm / 55.1”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Number of columns: 20
• BTU rating @ 50: 3433
• BTU rating @ 60: 4335
• Watt rating @ 50: 1006
• Watt rating @ 60: 1270
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 13m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : ALF6643LLW
