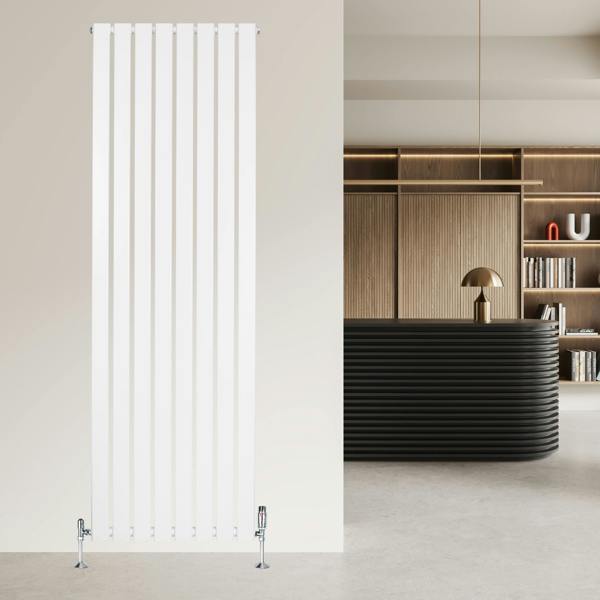

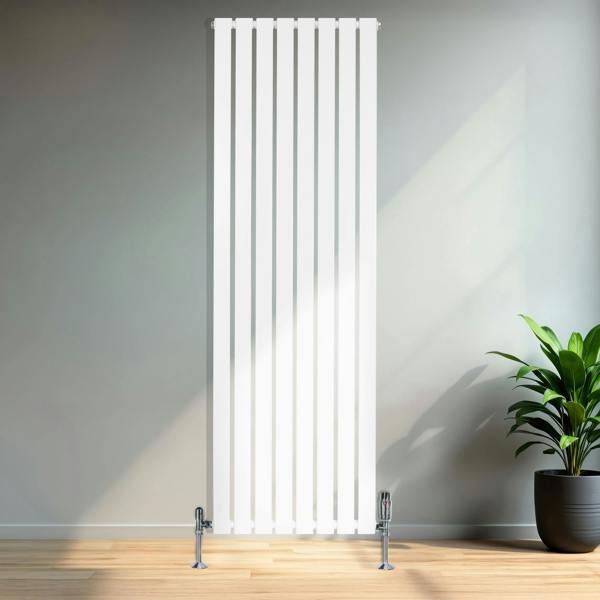

Monstershop Flat Single Column Radiator & Valves – 1800mm x 560mm – White

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator & Valves in white. Measuring 1800mm x 560mm, this 8-column design is made from 1.5mm carbon steel and finished with a triple layered powder coating for a crisp, durable surface. With a depth of 46mm (73mm with bracket), it suits spaces where a slimmer profile matters, while still delivering a BTU rating @ 60 of 4820 (1412 watts @ 60).

Supplied with a polished chrome thermostatic valve set, temperature can be adjusted from 6-28 degrees via a rotary knob. The angled valve style and integrated lock shield valve support straightforward control and regulation, with a maximum bar pressure of 12 and a maximum flow temperature of 100 degrees. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards, plus a 15-year guarantee for the radiator and 10 years for the valves.

Key features

• Flat single column radiator with 8 columns
• Size: 1800mm x 560mm
• Heat output: 4820 BTU rating @ 60 (1412 watts @ 60)
• Triple layered powder coating in white
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range: 6-28 degrees
• Includes brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 25.6kg
• Height: 1800mm / 180cm / 70.9”
• Width: 560mm / 56cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 8
• BTU rating @ 50: 3792
• BTU rating @ 60: 4820
• Watt rating @ 50: 1111
• Watt rating @ 60: 1412
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
