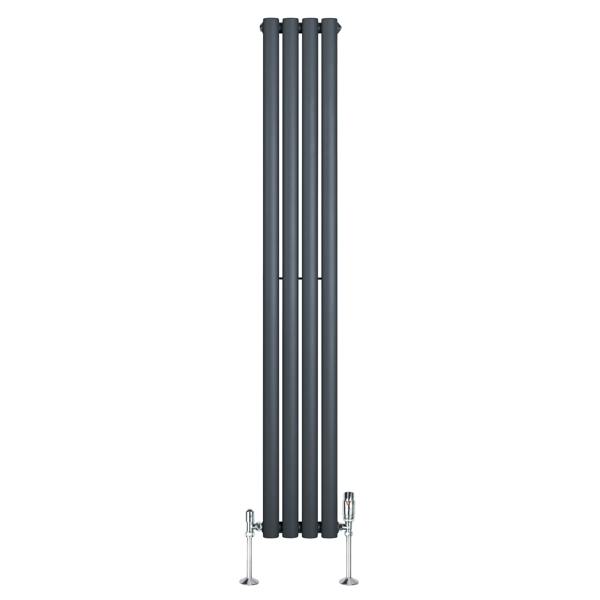

Monstershop Oval Single Column Radiator & Valves – 1600mm x 240mm – Anthracite Grey

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator & Valves combines an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 240mm, it brings a tall, slim profile that suits a wide range of rooms, with a recommended application area of 6m².

Made from 1.5mm carbon steel and finished with triple layered powder coating, the radiator pairs durability with a clean, contemporary look. Heat output is rated at 1512 BTU @ 50 and 1919 BTU @ 60 (443W @ 50 and 562W @ 60). Standard 0.5" BSP inlets/outlets support straightforward integration, while the angled thermostatic valves use a rotary knob for temperature adjustment from 6-28 degrees. CE & UKCA certification, BS EN 442 testing and a 15-year guarantee complete the specification.

Key features

• Oval tube, 4-column radiator in anthracite grey
• 1600mm x 240mm size with 6m² recommended application area
• 1.5mm carbon steel construction with triple layered powder coating
• Heat output: 1919 BTU @ 60 (562W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with polished chrome finish
• Rotary knob control with 6-28 degrees temperature range
• Supplied with brackets, fixing kit and flexible cleaning brush

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 9.6kg
• Height: 1600mm / 160cm / 63”
• Width: 240mm / 24cm / 9.4”
• Radiator Depth: 56mm / 5.6cm / 2.2”
• Depth With Bracket: 83mm / 8.3cm / 3.3”
• Gap Between Tubes: 10mm / 1cm / 0.4”
• Individual Oval Tube Size: 50mm x 25mm
• Number Of Columns: 4
• BTU Rating @ 50: 1512
• BTU Rating @ 60: 1919
• Watt Rating @ 50: 443
• Watt Rating @ 60: 562
• Max Working Temperature: 95°C
• Max Working Pressure: 10 Bar
• Test Pressure: 13 Bar
• Recommended Application Area: 6m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 44mm / 4.4cm / 1.7”
• Valve-To-Valve Height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control Style: Rotary Knob
• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 12
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee Length: 10 Years

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : 5K87KPDTTN
