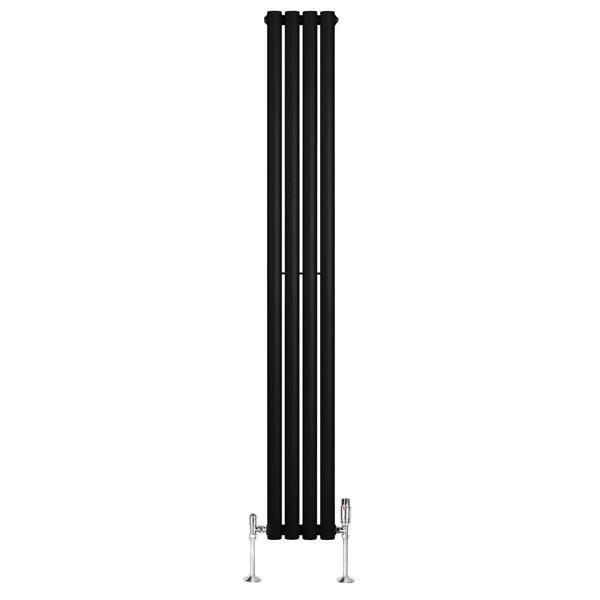

Monstershop Oval Single Column Radiator & Valves – 1800mm x 240mm – Black

A bold vertical statement for contemporary interiors, the Monstershop oval single column radiator and thermostatic valve set combines a black, triple layered powder-coated finish with polished chrome controls. Measuring 1800mm x 240mm, it suits spaces where wall area is limited but a tall profile works well, while the included angled thermostatic valves add straightforward temperature adjustment.

Made from 1.5mm carbon steel with individual oval tubes sized 50mm x 25mm, this 4-column radiator delivers a heat output of 2164 BTU at 60 (634W) and 1703 BTU at 50 (499W). It is tested to BS EN 442 and ISO9001:2015 standards, carries CE and UKCA certification, and is supplied with brackets, a fixing kit and a flexible cleaning brush for simple upkeep.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Size: 1800mm x 240mm
• 4-column design
• Heat output: 2164 BTU at 60; 1703 BTU at 50
• Triple layered powder coating in black
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Temperature range: 6–28 degrees
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 10.8kg
• Height: 1800mm / 180cm / 63”
• Width: 240mm / 24cm / 9.4”
• Depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 4
• BTU rating at 50: 1703
• BTU rating at 60: 2164
• Watt rating at 50: 499
• Watt rating at 60: 634
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certifications: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : WK1K8J7V88
