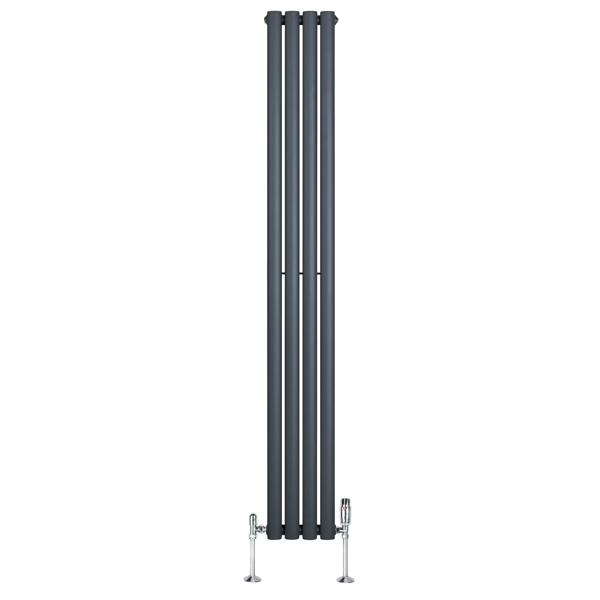

Monstershop Oval Single Column Radiator & Valves – 1800mm x 240mm – Anthracite Grey

Bring a refined, contemporary look to your heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in anthracite grey with a triple layered powder coating, this 1800mm x 240mm radiator creates a strong vertical statement while keeping the profile compact at 56mm deep (83mm with bracket).

Made from 1.5mm carbon steel and built around 4 columns of oval tubes (50mm x 25mm) with a 10mm gap between tubes, it delivers a BTU rating @ 60 of 2164 (634W) and a BTU rating @ 50 of 1703 (499W). The standard 0.5" BSP inlet/outlet supports straightforward integration, with compatibility across UK & EU heating systems. A polished chrome, angled thermostatic valve set is included, offering rotary control with a 6–28 degrees temperature range, alongside an integrated lock shield valve for water flow regulation.

Key features

• Monstershop oval radiator with thermostatic valve set
• Anthracite grey finish with triple layered powder coating
• 4-column design with oval tubes (50mm x 25mm)
• BTU rating @ 60: 2164; watt rating @ 60: 634
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary knob control
• Temperature range: 6–28 degrees
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 10.8kg
• Height: 1800mm / 180cm / 63”
• Width: 240mm / 24cm / 9.4”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 4
• BTU rating @ 50: 1703
• BTU rating @ 60: 2164
• Watt rating @ 50: 499
• Watt rating @ 60: 634
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 6m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU Heating Systems
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary Knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : BA2PVVYYNM
