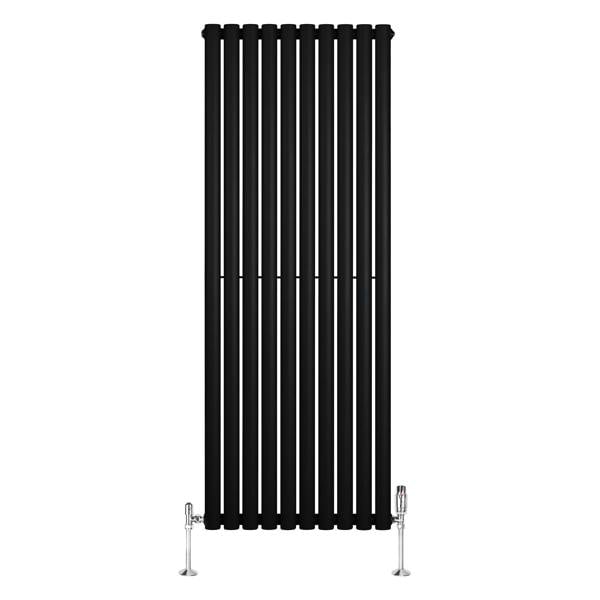

Monstershop Oval Single Column Radiator & Valves – 1600mm x 600mm – Black

Bring a clean, architectural look to your heating with the Monstershop Oval Single Column Radiator & Valves in black. Measuring 1600mm x 600mm, it pairs a tall, space-conscious profile with a triple layered powder-coated finish for a crisp, contemporary statement in living spaces, hallways or bedrooms.

Made from 1.5mm carbon steel, the 10-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 3782 BTU (1108W) @ 50 and 4800 BTU (1406W) @ 60, with a recommended application area of 14m². Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, while the included angled thermostatic valve set in polished chrome provides rotary control with a 6–28 degrees temperature range.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Size: 1600mm x 600mm
• 10-column design with 50mm x 25mm oval tubes
• Heat output: 4800 BTU @ 60 (1406W)
• Triple layered powder-coated black finish
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control (6–28 degrees)
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 24.5kg
• Height: 1600mm / 160cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 3782
• BTU rating @ 60: 4800
• Watt rating @ 50: 1108
• Watt rating @ 60: 1406
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : S31IX2EDB8
