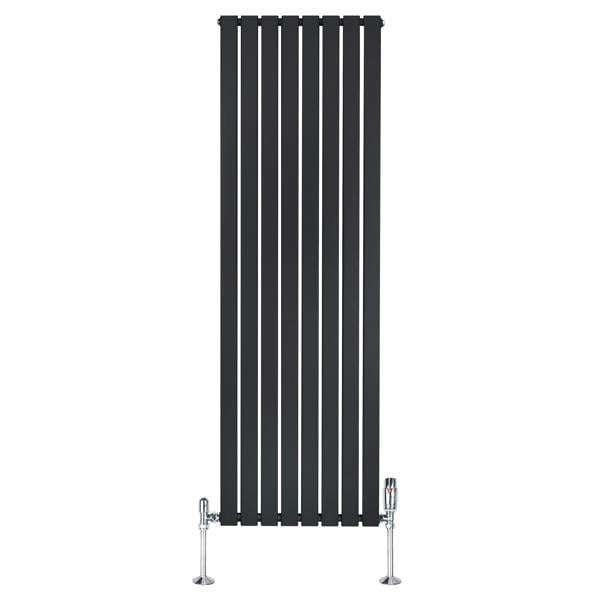

Monstershop Flat Single Column Radiator & Valves – 1800mm x 560mm – Black

A bold, architectural update for modern interiors, the Monstershop Flat Single Column Radiator & Valves combines a tall black radiator with a polished chrome thermostatic valve set. Measuring 1800mm x 560mm, it brings a clean, vertical profile that suits a wide range of rooms while keeping the look streamlined.

Made from premium 1.5mm carbon steel and finished with a triple layered powder coating, the radiator is built for long-term use and everyday durability. Heat output is rated at 4820 BTU at 60 (1412 watts) and 3792 BTU at 50 (1111 watts), with a maximum working temperature of 95°C and maximum working pressure of 5 bar. Standard 0.5" BSP inlets/outlets support straightforward compatibility, and the included angled thermostatic valves offer rotary control with a 6–28 degrees temperature range.

Key features

• Monstershop flat single column radiator with thermostatic valve set
• Radiator size: 1800mm x 560mm
• Colour: black
• Heat output: 4820 BTU at 60 (1412 watts)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Temperature range: 6–28 degrees
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Weight: 25.6kg
• Height: 1800mm / 180cm / 70.9”
• Width: 560mm / 56cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 8
• BTU rating at 50: 3792
• BTU rating at 60: 4820
• Watt rating at 50: 1111
• Watt rating at 60: 1412
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 14m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: thermostatic
• Style: angled
• Control style: rotary knob
• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x flat single column radiator
• 4 x secure brackets
• 1 x practical fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set
