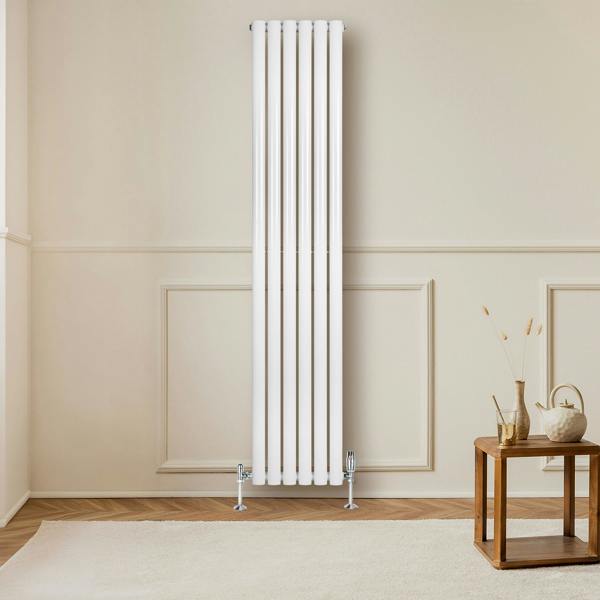

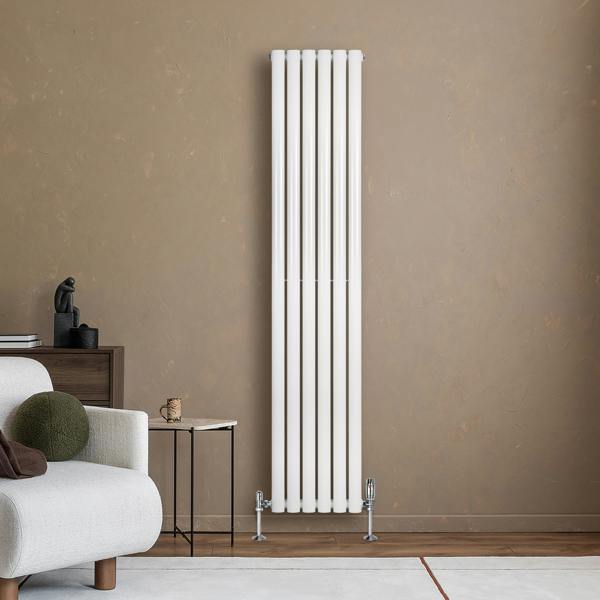

Monstershop Oval Single Column Radiator & Valves – 1800mm x 360mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 1800mm x 360mm radiator brings a crisp, modern presence to a range of interiors while maintaining a slim profile at 56mm deep.

Made from 1.5mm carbon steel and built with 6 columns of oval tubes (50mm x 25mm), it delivers a BTU rating of 3245 at 60 (951 watts) and 2553 at 50 (748 watts). The standard 0.5" BSP inlet/outlet supports straightforward integration with UK and EU heating systems, while the included angled thermostatic valve set in polished chrome provides rotary control with a 6–28 degrees temperature range. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• White finish with triple layered powder coating
• 6-column design with 50mm x 25mm oval tubes
• BTU rating @ 60: 3245; watt rating @ 60: 951
• Standard 0.5" BSP bore inlets/outlets
• Angled brass thermostatic valves with polished chrome finish
• Rotary knob control with 6–28 degrees temperature range
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 16kg
• Height: 1800mm / 180cm / 63”
• Width: 360mm / 36cm / 14.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 6
• BTU rating @ 50: 2553
• BTU rating @ 60: 3245
• Watt rating @ 50: 748
• Watt rating @ 60: 951
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
