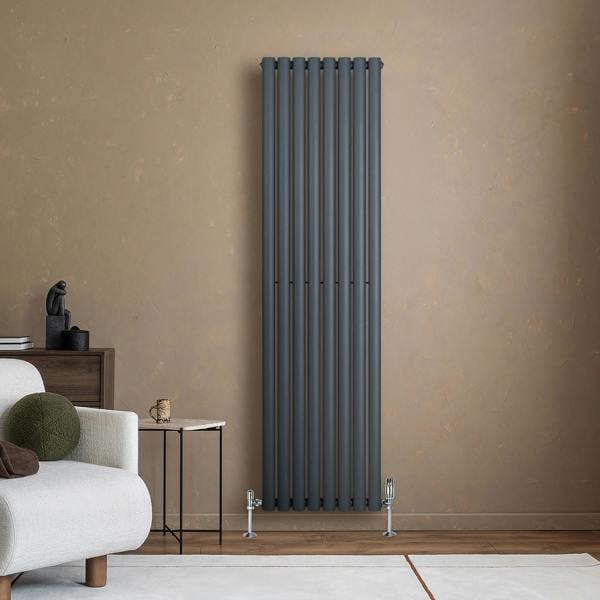

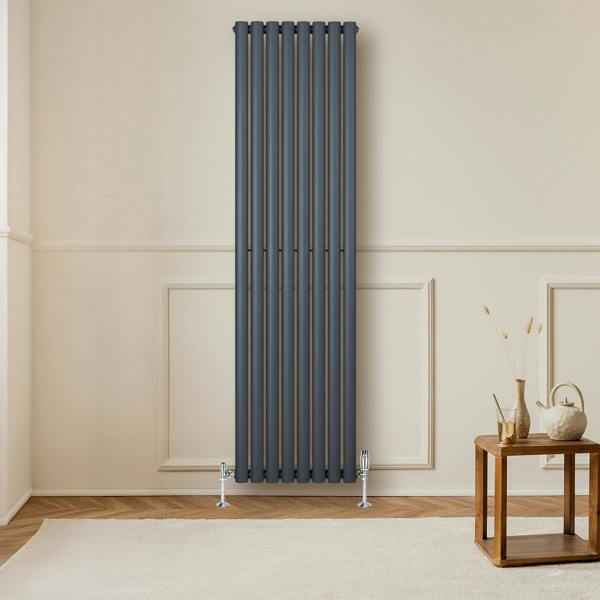

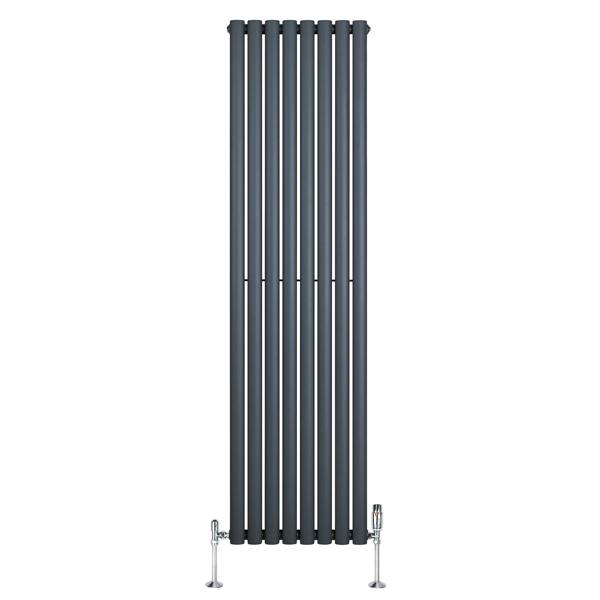

Monstershop Oval Single Column Radiator & Valves – 1800mm x 480mm – Anthracite Grey

Bring a refined, contemporary look to your heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in anthracite grey with a triple layered powder coating, this 1800mm x 480mm radiator creates a strong vertical statement while keeping a clean, architectural profile.

Made from premium 1.5mm carbon steel, the 8-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 3403 BTU @ 50 and 4325 BTU @ 60 (997W @ 50 and 1267W @ 60). Standard 0.5" BSP inlets/outlets support straightforward integration, and the set includes a polished chrome, angled thermostatic valve pair with rotary knob control and a 6–28 degrees temperature range. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Anthracite grey finish with triple layered powder coating
• 8-column construction in 1.5mm carbon steel
• Heat output: 4325 BTU @ 60 (1267W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves in polished chrome with rotary knob control
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 22.6kg

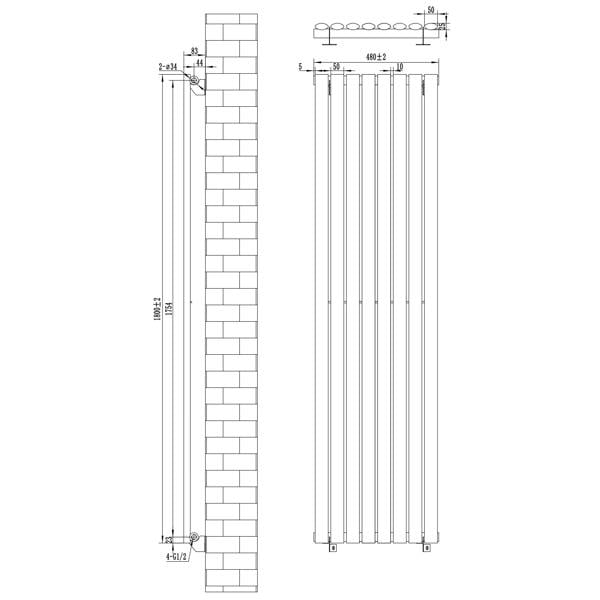

• Height: 1800mm / 180cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating @ 50: 3403
• BTU rating @ 60: 4325
• Watt rating @ 50: 997
• Watt rating @ 60: 1267
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 13m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary Knob
• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set
