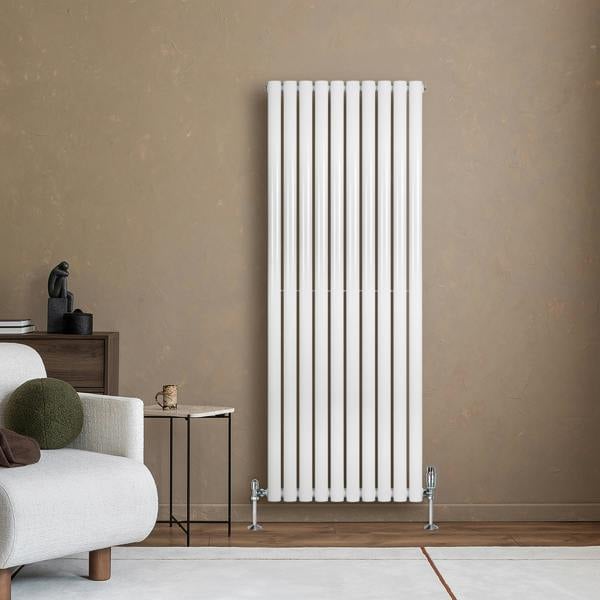

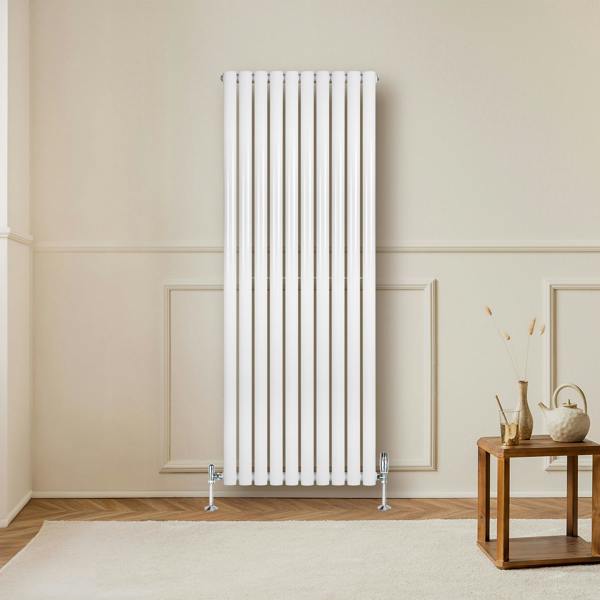

Monstershop Oval Single Column Radiator & Valves – 1600mm x 600mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 1600mm x 600mm radiator brings a crisp, modern presence to a range of interiors while offering a BTU rating @ 60 of 4800.

Made from premium 1.5mm carbon steel, the 10-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Standard 0.5" BSP bore inlets/outlets support compatibility with all UK & EU heating systems. Supplied with an angled, polished chrome thermostatic valve set in brass, temperature control is handled via a rotary knob with a 6-28 degrees range, alongside an integrated lock shield valve for water flow regulation. Secure brackets, a fixing kit and a flexible cleaning brush are included, with testing to BS EN 442 & ISO9001:2015 standards and CE & UKCA certification.

Key features

• Monstershop oval single column radiator in white with thermostatic valve set
• 1600mm x 600mm size with 10 columns
• BTU rating @ 60: 4800
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control and 6-28 degrees range
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee on radiator; 10-year guarantee on valves

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 24.5kg
• Height: 1600mm / 160cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 3782
• BTU rating @ 60: 4800
• Watt rating @ 50: 1108
• Watt rating @ 60: 1406
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
