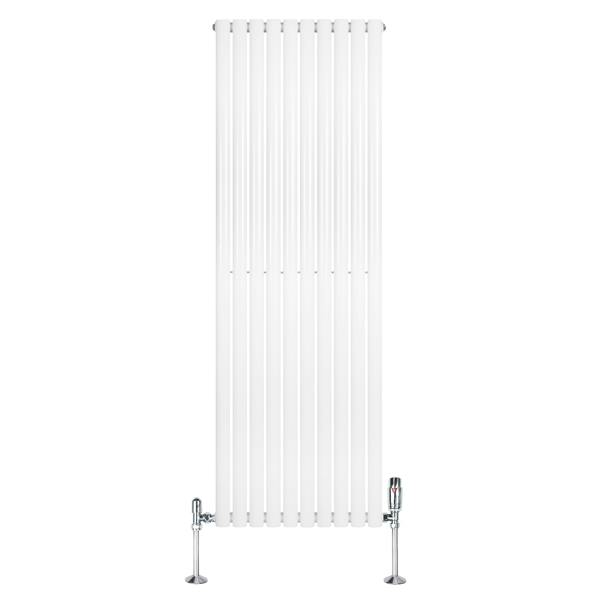

Monstershop Oval Single Column Radiator & Valves – 1800mm x 600mm – White

Bring a clean, architectural look to your heating with the MonsterShop Oval Single Column Radiator & Valves in white. Measuring 1800mm x 600mm, this 10-column design is made from 1.5mm carbon steel and finished with triple layered powder coating for a crisp, durable surface.

Heat output is rated at 5409 BTU at 60 (1585 watts) and 4256 BTU at 50 (1247 watts), with a recommended application area of 16m². Standard 0.5" BSP inlets/outlets support straightforward integration, while the supplied angled thermostatic valve set in polished chrome adds controlled adjustment via a rotary knob, with a 6–28 degrees temperature range. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards.

Key features

• MonsterShop oval single column radiator with thermostatic valve set
• Size: 1800mm x 600mm; 10 columns
• Material: 1.5mm carbon steel; white finish with triple layered powder coating
• Heat output: 5409 BTU at 60 / 1585 watts; 4256 BTU at 50 / 1247 watts
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control and 6–28 degrees range
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Weight: 27.1kg
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 4256
• BTU rating @ 60: 5409
• Watt rating @ 50: 1247
• Watt rating @ 60: 1585
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years
