Monstershop Oval Single Column Radiator & Valves – 600mm x 1620mm – Anthracite Grey

A bold, architectural update for contemporary interiors, this Monstershop oval single column radiator brings an anthracite grey finish together with a polished chrome thermostatic valve set. Sized at 600mm high and 1620mm wide, it suits a range of room layouts while keeping a clean, linear profile.

Made from 1.5mm carbon steel with a triple layered powder coating, it pairs a durable build with a refined look. The 27-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 5260 BTU at 60 (1541 watts) and 4171 BTU at 50 (1222 watts). Standard 0.5" BSP inlets/outlets support straightforward integration, and the angled thermostatic valves offer rotary control with a 6–28 degrees temperature range.

Key features

• Oval single column radiator with 27 columns
• 600mm x 1620mm size
• Anthracite grey finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 5260 BTU at 60; 4171 BTU at 50
• Standard 0.5" BSP bore inlets/outlets
• Angled brass thermostatic valve set in polished chrome
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite grey
• Weight: 26.8kg
• Material: 1.5mm carbon steel

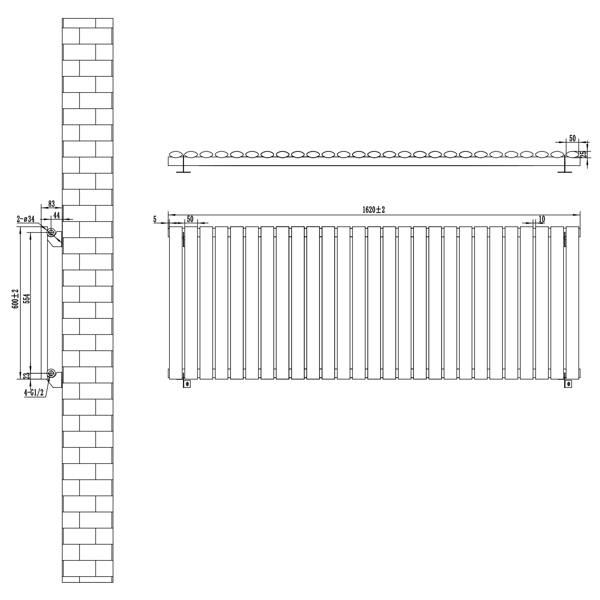

• Height: 600mm / 60cm / 23.6”
• Width: 1620mm / 162cm / 63.8”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 4171
• BTU rating @ 60: 5260
• Watt rating @ 50: 1222
• Watt rating @ 60: 1541
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Certifications: BS EN 442; ISO9001:2015; CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
