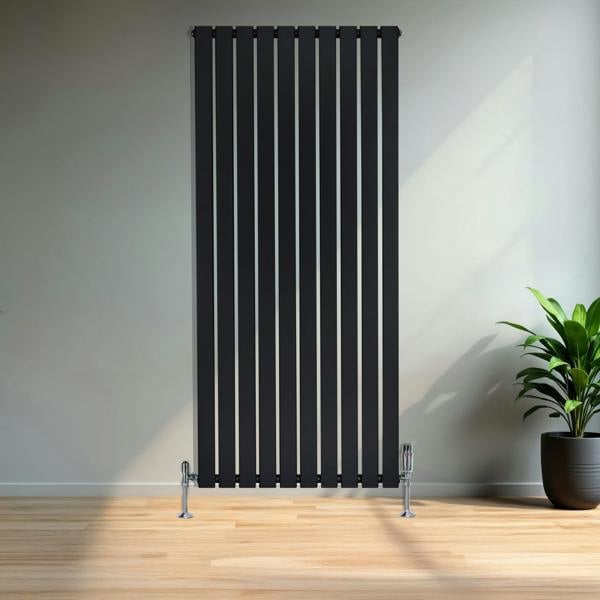

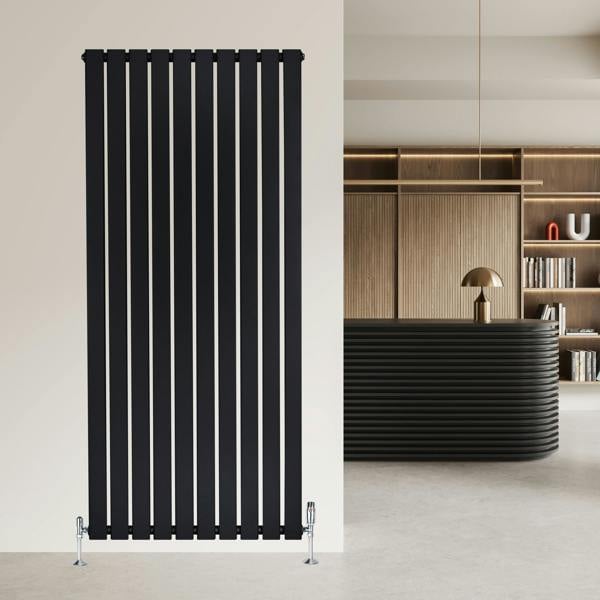

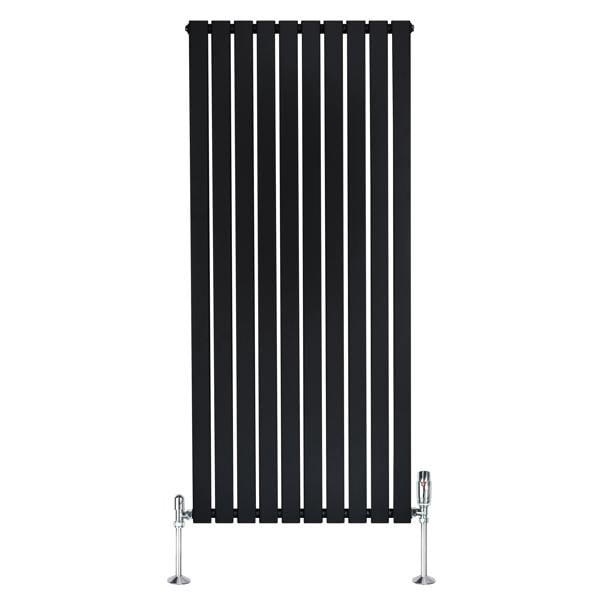

Monstershop Flat Single Column Radiator – 1600mm x 700mm & Valves – Black

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator pairs a sleek black finish with a polished chrome thermostatic valve set. Measuring 1600mm x 700mm, it brings a tall, space-conscious profile that suits a wide range of rooms while keeping the look clean and considered.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it’s built for long-term everyday use. Heat output is rated at 4215 BTU @ 50 and 5352 BTU @ 60 (1235 watts @ 50 and 1568 watts @ 60), with a recommended application area of 16m². Standard 0.5" BSP inlets/outlets support straightforward compatibility, while the included angled thermostatic valves use a rotary knob for temperature adjustment from 6 to 28 degrees.

Key features

• Flat single column radiator with 10 columns
• 1600mm x 700mm size in a black finish
• Triple layered powder coating
• Heat output: 5352 BTU @ 60 (1568 watts @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Includes angled thermostatic valve set in polished chrome
• Supplied with brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 28.1kg
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 700mm / 70cm / 27.6”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 10
• BTU rating @ 50: 4215
• BTU rating @ 60: 5352
• Watt rating @ 50: 1235
• Watt rating @ 60: 1568
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certificates: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
