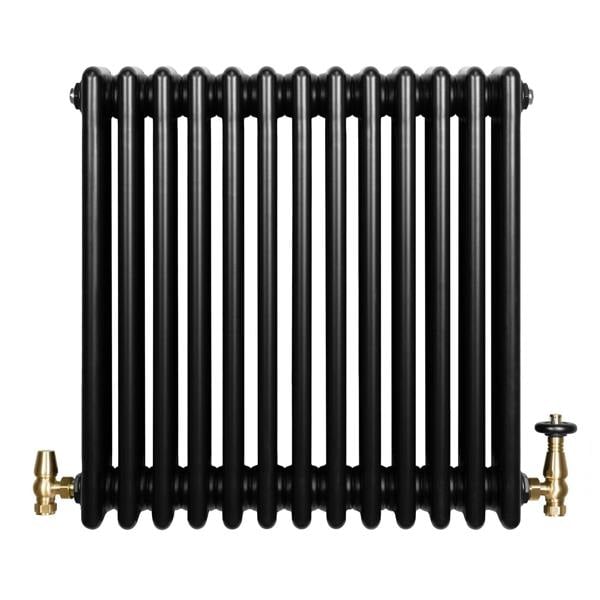

Monstershop Traditional 4 Column Radiator & Valves - 600 x 605mm - Black

Bring a classic, architectural look to your heating with the Monstershop Traditional 4 Column Radiator & Valves. Finished in black with a triple layered powder coating, it pairs a bold horizontal profile with a robust carbon steel build for a clean, considered fit in a wide range of interiors.

Measuring 600mm high by 605mm wide, this 13-column radiator uses 25mm steel tubes with a 20mm gap between tubes, and includes secure brackets and a fixing kit for straightforward mounting. Heat output is rated at 2581 BTU at 60 (756W) and 2031 BTU at 50 (595W), with a recommended application area of 8m². Supplied with a satin brass angled thermostatic valve set, temperature can be adjusted from 6–28 degrees via a rotary knob, while the integrated lockshield helps regulate water flow. CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards, and backed by a 15-year guarantee.

Key features

• Black traditional-style horizontal radiator with 13 columns
• 1.5mm carbon steel construction with triple layered powder coating
• Heat output: 2581 BTU at 60 (756W) and 2031 BTU at 50 (595W)
• Standard 0.5" BSP bore inlets/outlets
• Includes angled brass thermostatic valve set with 6–28 degrees temperature range
• Supplied with 4 secure brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 29.8kg
• Height: 600mm / 60cm / 23.6”
• Width: 605mm / 60.5cm / 23.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 13
• BTU rating @ 50: 2031
• BTU rating @ 60: 2581
• Watt rating @ 50: 595
• Watt rating @ 60: 756
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 8m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
