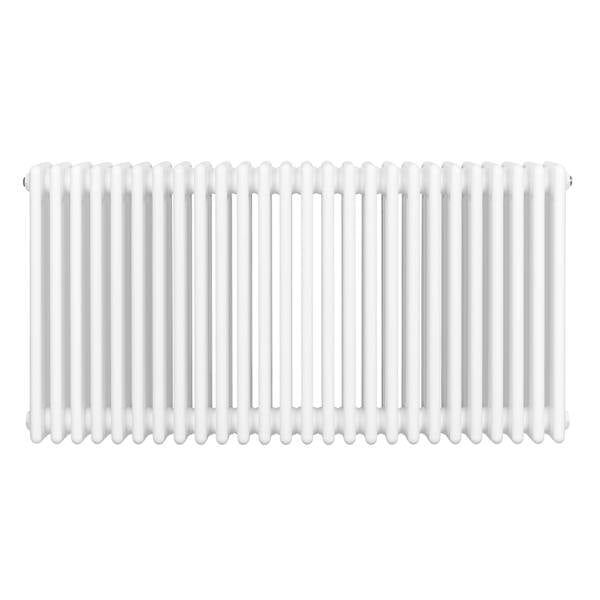

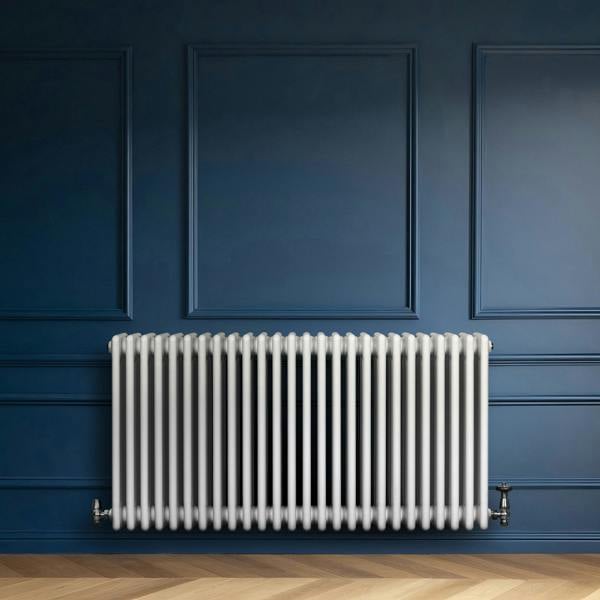

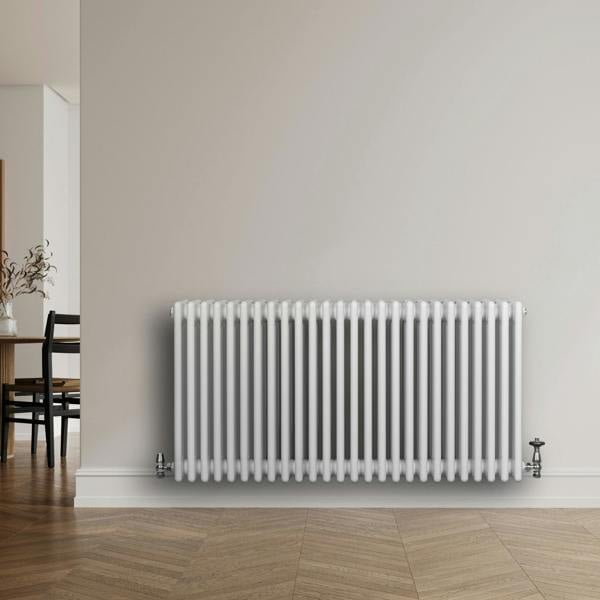

Monstershop Traditional 4 Column Radiator - 600 x 1190mm - White

A classic column profile meets a clean, modern finish in the Monstershop Traditional 4 Column Radiator. This horizontal radiator measures 600 x 1190mm and comes in white with a triple layered powder coating for a durable, hard-wearing surface.

Made from 1.5mm carbon steel, it uses 26 columns with 25mm individual tube sizing and a 20mm gap between tubes. Heat output is rated at 5160 BTU at 60 (1512 watts) and 4061 BTU at 50 (1190 watts), with a recommended application area of 15m². Built for demanding heating systems, it supports a maximum working temperature of 95°C and maximum working pressure of 12 bar, with a test pressure of 15.6 bar. Standard 0.5" BSP inlets/outlets make it compatible with all UK & EU heating systems.

Key features

• Traditional 4 column horizontal radiator
• 600 x 1190mm size
• White finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 5160 BTU at 60 (1512 watts)
• Standard 0.5" BSP bore inlets/outlets
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: White
• Weight: 59.1kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 26
• BTU rating @ 50: 4061
• BTU rating @ 60: 5160
• Watt rating @ 50: 1190
• Watt rating @ 60: 1512
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
