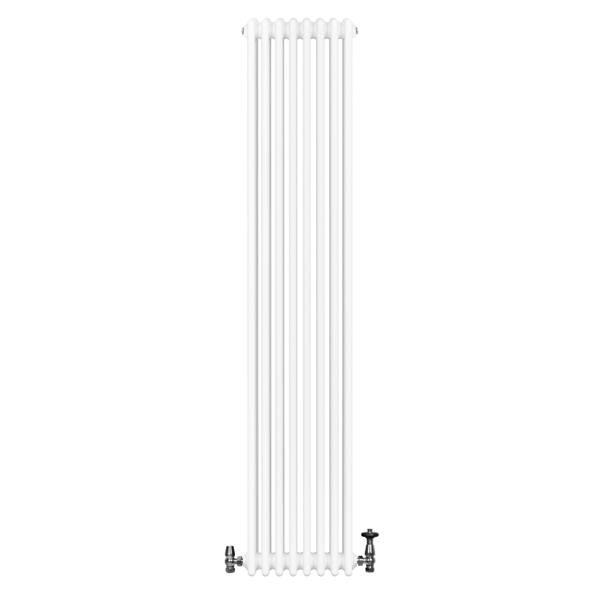

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 380mm - White

A crisp, architectural update for classic interiors, the Monstershop Traditional 4 Column Radiator & Valves combines a tall vertical profile with a clean white finish. Measuring 1800 x 380mm, it brings a strong visual presence to hallways, living spaces and larger rooms, while the triple layered powder coating helps protect the surface for long-lasting everyday use.

Made from 1.5mm carbon steel, this 8-column radiator uses 25mm steel tubes with 20mm gaps between them. Heat output is rated at 7863 BTU at 60 (2304 watts) and 6171 BTU at 50 (1808 watts), with a recommended application area of 23m². Supplied with a chrome thermostatic valve set in an angled style, temperature can be adjusted from 6–28 degrees via a rotary knob, with an integrated lockshield valve for water flow regulation. CE and UKCA certified, and tested to BS EN 442 and ISO9001:2015 standards.

Key features

• Monstershop Traditional 4 Column Radiator & Valves
• 1800 x 380mm vertical radiator in white
• 8-column design with triple layered powder coating
• Heat output: 7863 BTU at 60 (2304 watts); 6171 BTU at 50 (1808 watts)
• Standard 0.5" BSP inlet/outlet size
• Includes angled chrome thermostatic valve set with 6–28 degrees temperature range
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 54.5kg
• Height: 1800mm / 180cm / 70.9”
• Width: 380mm / 38cm / 15”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 8
• BTU rating @ 50: 6171
• BTU rating @ 60: 7863
• Watt rating @ 50: 1808
• Watt rating @ 60: 2304
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 23m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
