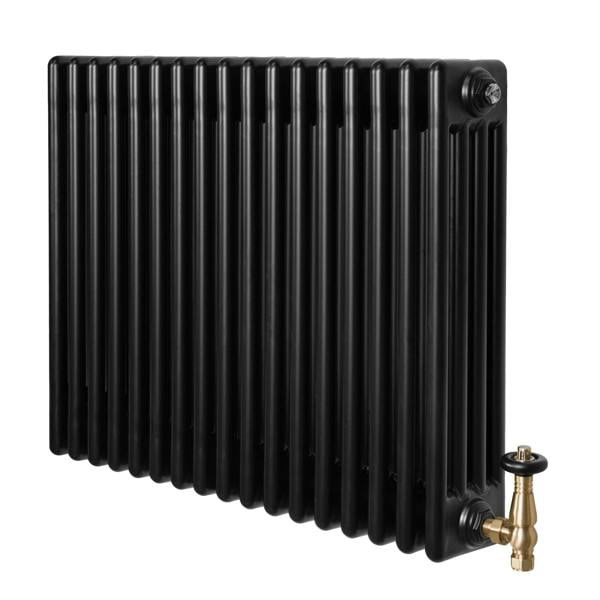

Monstershop Traditional 4 Column Radiator & Valves - 600 x 785mm - Black

A bold, traditional look meets modern specification in the Monstershop Traditional 4 Column Radiator & Valves, a horizontal radiator finished in black. Made from premium 1.5mm carbon steel and sized at 600mm high by 785mm wide, it brings a strong architectural presence to living spaces, hallways and other rooms where a statement heating feature suits the décor.

With 17 columns and 25mm steel tubes, it delivers a BTU rating of 3373 at 60 (2655 at 50), with watt ratings of 756 at 60 (595 at 50). A triple layered powder coating supports long-term durability, while the included flexible cleaning brush helps keep the finish looking its best. Supplied with a satin brass thermostatic valve set in an angled style, temperature control is handled via a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for regulating water flow.

Key features

• Traditional style 4 column horizontal radiator
• Black finish with triple layered powder coating
• Premium 1.5mm carbon steel construction
• 17 columns with 25mm individual tube size
• BTU rating @ 60: 3373
• Standard 0.5" BSP inlet/outlet compatibility
• Supplied with angled satin brass thermostatic valve set
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee on radiator; 10-year guarantee on valves

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 38.6kg
• Height: 600mm / 60cm / 23.6”
• Width: 785mm / 78.5cm / 30.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 17
• BTU rating @ 50: 2655
• BTU rating @ 60: 3373
• Watt rating @ 50: 595
• Watt rating @ 60: 756
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 10m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems

Valves

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years
