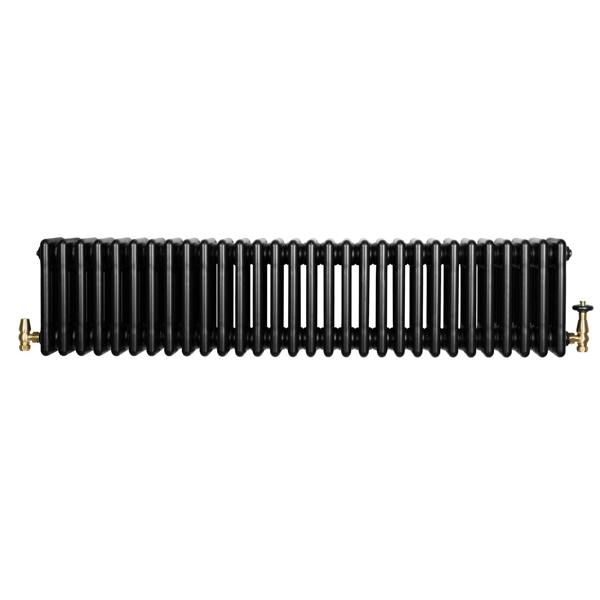

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1370mm - Black

Bring a refined, traditional look to your heating with the Monstershop Traditional 4 Column Radiator & Valves in black. Measuring 300mm high by 1370mm wide, this horizontal radiator combines a bold finish with a robust carbon steel build, making it a strong choice for a wide range of interiors.

Constructed from 1.5mm carbon steel and finished with triple layered powder coating, it’s made for long-term use while keeping a clean, uniform appearance. The radiator uses 30 columns with 25mm tubes and delivers a BTU rating @ 60 of 5185 (1519 watts @ 60). Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems. A satin brass thermostatic valve set is supplied, with angled valves, a rotary knob control style and a 6–28 degrees temperature range.

Key features

• Traditional 4 column horizontal radiator
• Size: 300mm (H) x 1370mm (W)
• Colour: black
• Material: 1.5mm carbon steel
• Triple layered powder coating finish
• BTU rating @ 60: 5185
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in brass
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards
• 15 year guarantee (radiator); 10 years (valves)

Specifications

Radiator

• Weight: 36.6kg
• Height: 300mm / 30cm / 11.8”
• Width: 1370mm / 137cm / 53.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 30
• BTU rating @ 50: 4078
• BTU rating @ 60: 5185
• Watt rating @ 50: 1195
• Watt rating @ 60: 1519
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: all UK & EU heating systems

Valves

• Colour: brass
• Material: powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: angled
• Control style: rotary knob
• Type: thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set
