Monstershop Traditional 4 Column Radiator & Valves - 1800 x 200mm - White

A classic column profile meets modern specification in the Monstershop Traditional 4 Column Radiator & Valves, finished in white. Measuring 1800mm high by 200mm wide, this vertical radiator suits a wide range of interiors, with a triple layered powder coating for a durable, clean-lined look.

Made from 1.5mm carbon steel with 4 columns and 25mm tubes, it delivers a BTU rating @ 60 of 3931 (1152W) and a BTU rating @ 50 of 3085 (904W). Standard 0.5" BSP inlets/outlets support straightforward integration, while the supplied chrome thermostatic valve set adds precise control via a rotary knob, with an adjustable temperature range of 6–28°C.

Key features

• Traditional 4 column vertical radiator
• Size: 1800mm x 200mm
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Heat output: 3931 BTU rating @ 60 (1152W)
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled chrome thermostatic valve set (6–28°C)
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

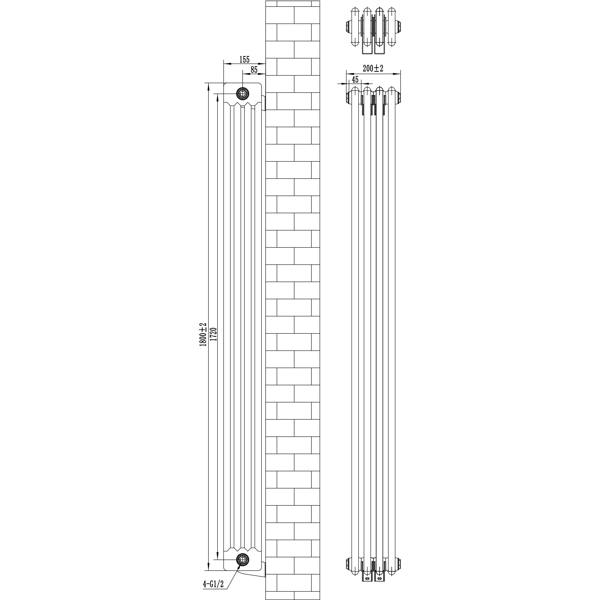

Specifications

Radiator

• Colour: White
• Weight: 25.9kg
• Height: 1800mm / 180cm / 70.9”
• Width: 200mm / 20cm / 7.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 4
• BTU rating @ 50: 3085
• BTU rating @ 60: 3931
• Watt rating @ 50: 904
• Watt rating @ 60: 1152
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU heating systems

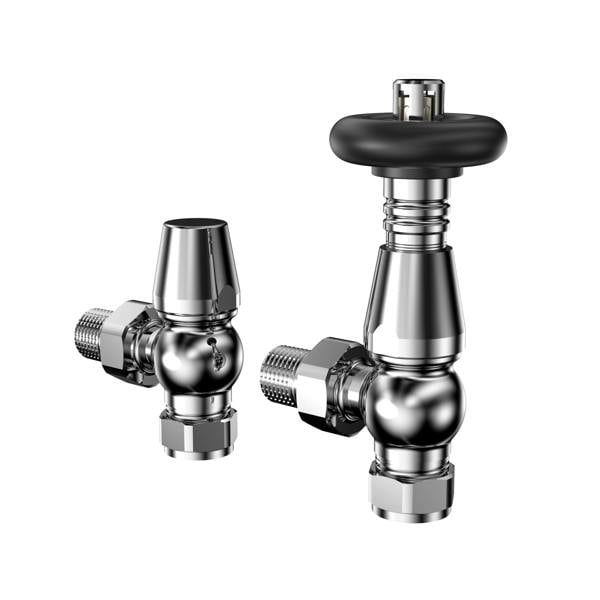

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit

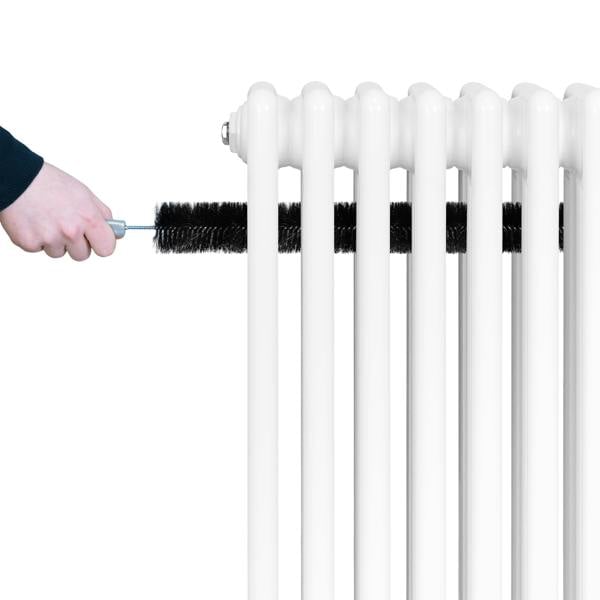

• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : 4QR4SFV5QV
