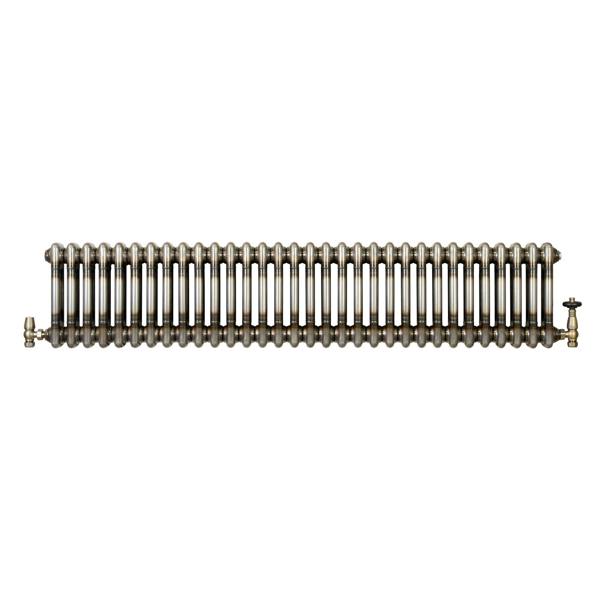

Traditional 2 Column Radiator & Valves - 300 x 1460mm - Raw Metal

From MonsterShop, this traditional 2 column horizontal radiator brings an industrial raw metal finish to everyday heating, balancing period-inspired styling with practical performance. Designed for a range of interiors, it creates a distinctive focal point while delivering dependable warmth for spaces up to 5.9m².

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 32 columns and 25mm steel tubes for efficient heat output. The supplied angled thermostatic valve set allows for straightforward temperature adjustment from 6–28C using a rotary knob, while the lockshield valve helps regulate water flow. With standard 0.5" BSP inlet and outlet compatibility, it is suitable for all UK and EU heating systems and is supplied with fixtures and fittings for installation.

Key features

• Raw metal finish with industrial look
• 2 column horizontal design
• 3801 BTU heat output at 60
• 1.5mm carbon steel construction
• Angled thermostatic valve set with rotary knob control
• Temperature range from 6–28C
• CE and UKCA certified
• 15-year radiator guarantee

Specifications

• Material: 1.5mm carbon steel
• Finish: Lacquer coating
• Weight: 17.7kg
• Number of columns: 32
• BTU rating @ 50: 3027
• BTU rating @ 60: 3801
• Watt rating @ 50: 887
• Watt rating @ 60: 1114
• Max working temperature: 95C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 5.9m²
• Heating surface area: 1.61m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve material: Powder coated brass
• Valve style: Angled
• Valve type: Thermostatic
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 300mm H x 1460mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 324mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 2 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : AICEQH6LPV
