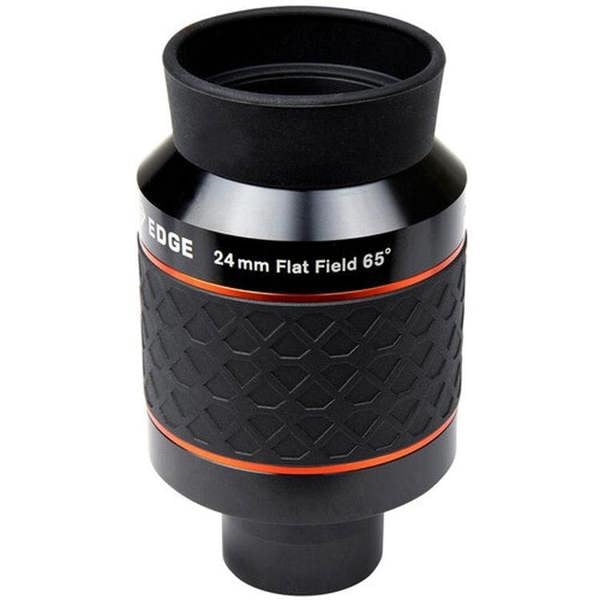

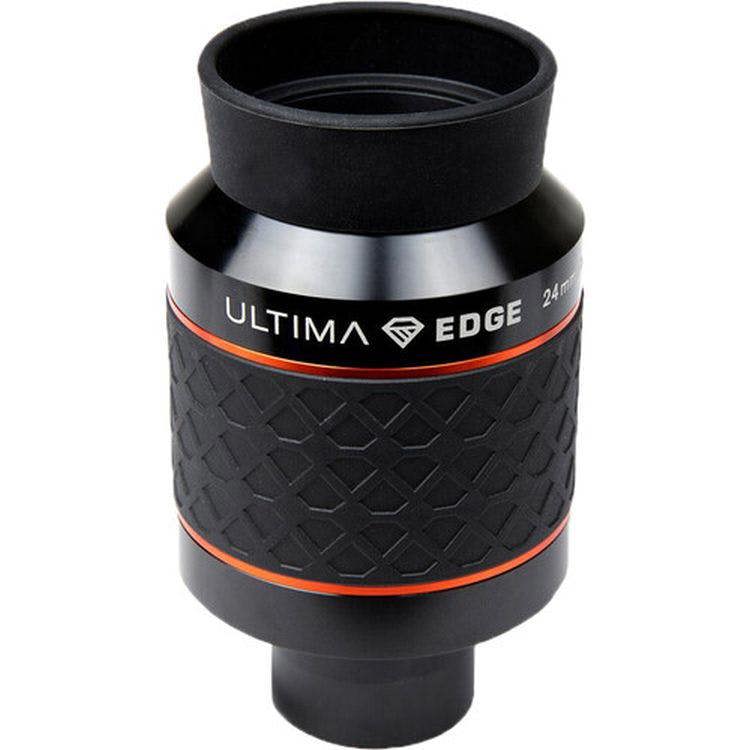

Celestron Ultima Edge 24mm Flat Field Eyepiece - 1.25 inch

Sharpness across the full field is the defining quality of the Celestron Ultima Edge 24mm Flat Field Eyepiece, a 1. 25-inch telescope eyepiece with an 8-element optical design and a wide 65 apparent field of view. Fully multi-coated optics support strong light transmission, while the 24mm focal length makes it a useful choice when a broader, immersive view is preferred.

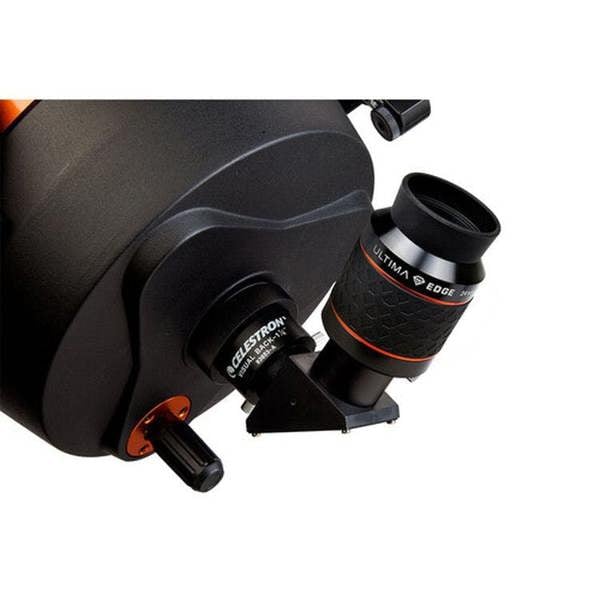

Comfort and handling have been given equal attention. A long 29mm eye relief, fold-down rubber eyecup and moulded rubber grip ring make the eyepiece easy to use during extended observing sessions, including for eyeglass wearers. The aluminium body has a black anodised finish, and the 1. 25-inch barrel is internally threaded for standard 1. 25-inch filters and adaptors. It is compatible with 1. 25-inch star diagonals and focusers.

Key features

• 24mm flat field eyepiece for 1. 25-inch focusers
• 8-element lens design in 5 groups
• Fully multi-coated optics
• 65 apparent field of view
• 29mm eye relief with fold-down rubber eyecup
• Aluminium body with black anodised finish
• 1. 25-inch filter thread: M28. 5 x 0. 6
• Model number: 93453-CGL

Specifications

Optical

• Focal length: 24mm
• Barrel size diameter: 1. 25-inch
• Apparent field of view: 65
• Field stop diameter: 30. 2mm
• Optical design: Proprietary
• Number of lens elements: 8
• Number of lens groups: 5
• Optical coatings: Fully multi-coated
• Eye relief: 29mm
• Parfocal: No
• Filter threads: 1. 25-inch (M28. 5 x 0. 6)

Build

• Eye guard: Yes - roll up
• Body material: Aluminium
• Weight: 12. 32 oz (349. 3 g)

Sizing

104mm x 60mm x 60mm

Support & warranty

• 2-year warranty
