Fixaball M10 Hex Bolt Nut Washers High Tensile 8.8 BZP

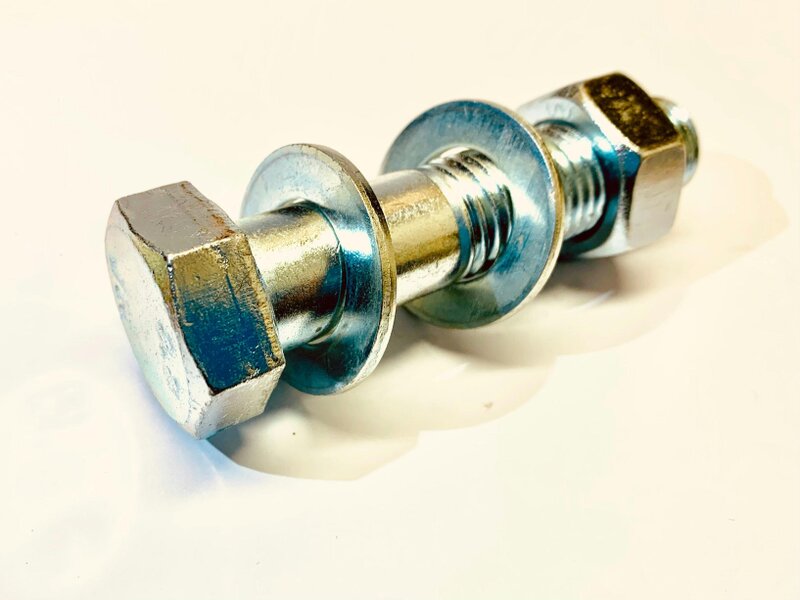

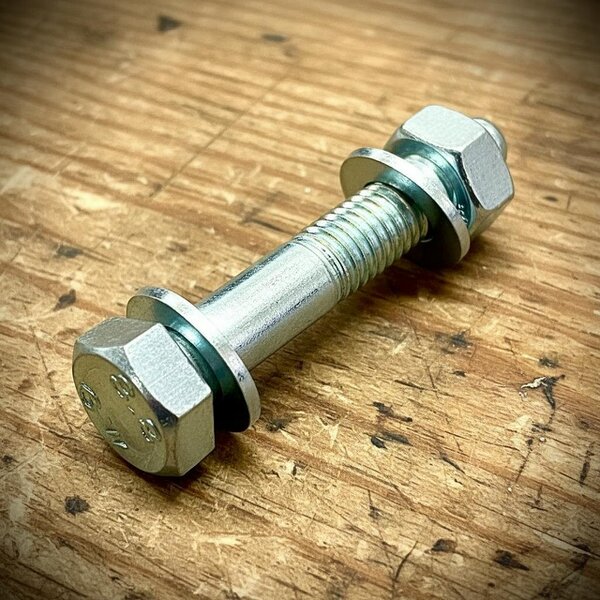

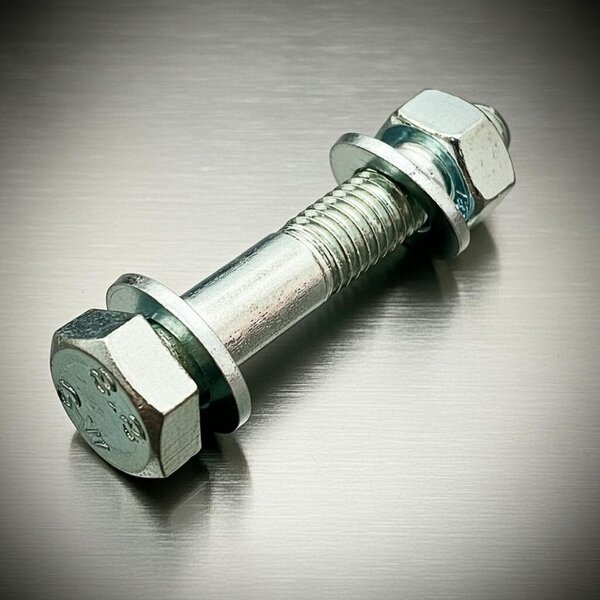

For general fastening applications, this Fixaball M10 hexagon head bolt set includes a partially threaded high tensile steel grade 8.8 bolt with a zinc plated finish, supplied with a full hex nut and 2 Form A washers. Manufactured to DIN 931, it features a part plain shank and metric coarse thread.

Suitable where a nut and washer fixing is required, each set is offered in a choice of M10 lengths from 35mm to 200mm. The zinc plated finish adds moisture resistance to the steel and is suited to internal applications.

Available options

• M10 x 35
• M10 x 40
• M10 x 45
• M10 x 50
• M10 x 55
• M10 x 60
• M10 x 65
• M10 x 70
• M10 x 75
• M10 x 90
• M10 x 100
• M10 x 110
• M10 x 120
• M10 x 130
• M10 x 140
• M10 x 150
• M10 x 160
• M10 x 180
• M10 x 200

Key features

• Diameter: M10
• High tensile steel grade 8.8
• Zinc plated finish
• Partially threaded bolt with part plain shank
• Metric coarse thread
• DIN 931
• Supplied with 1 full hex nut and 2 Form A washers

Specifications

• Thread pitch: 1.5
• Spanner size: 17mm
• Width across flat (s): DIN 931 min 16.73, max 17.00
• Width across flat (s): ISO 4014 min 15.73, max 16.00
• Head height (k): DIN 931 min 6.22, max 6.58
• Head height (k): ISO 4014 min 6.22, max 6.58
• Thread length: DIN 931 26 up to 125, 32 over 125 up to 200, 45 over 200

Image is for illustrative purposes only.
