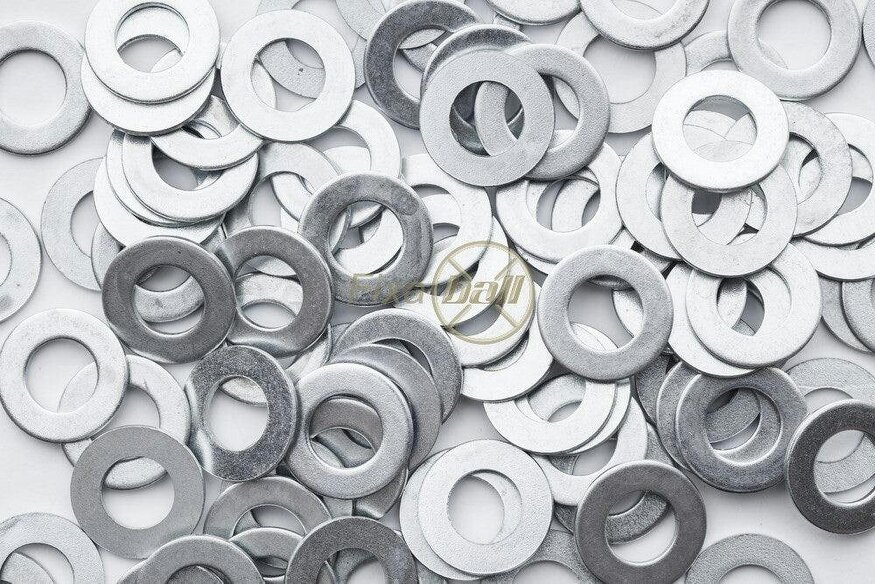

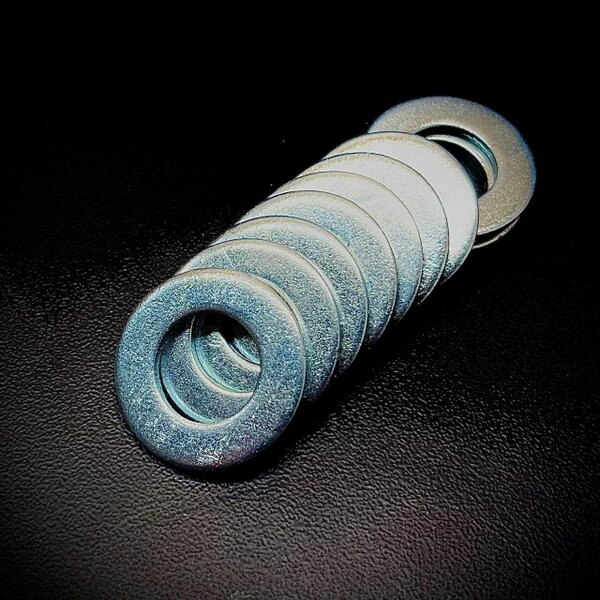

Fixaball Metric Washers Steel BZP Zinc Flat Form A DIN125 M3 - M30

For general fastening applications, these Fixaball Form A flat washers are manufactured from steel with a BZP zinc finish and conform to DIN 125A. This range covers metric sizes from M3 to M30, making it suitable for a wide spread of engineering fasteners and construction fixings where a flat washer to DIN 125 is required.

Each washer is specified as 140 HV zinc CR+3. Multiple internal diameter options are available, with pack size selected from the available options.

Available options

• M3
• M4
• M5
• M6
• M8
• M10
• M12
• M14
• M16
• M18
• M20
• M22
• M24
• M27
• M30

Key features

• Form A flat washers
• Steel with BZP zinc finish
• DIN 125A
• 140 HV zinc CR+3
• Pack quantity selectable

Sizing

• M3: 3.2mm internal diameter, 7.0mm outside diameter, 0.5mm thickness
• M4: 4.3mm internal diameter, 9.0mm outside diameter, 0.8mm thickness
• M5: 5.3mm internal diameter, 10mm outside diameter, 1.0mm thickness
• M6: 6.4mm internal diameter, 12mm outside diameter, 1.6mm thickness
• M8: 8.4mm internal diameter, 16mm outside diameter, 1.6mm thickness
• M10: 10.5mm internal diameter, 20mm outside diameter, 2.0mm thickness
• M12: 13mm internal diameter, 24mm outside diameter, 2.5mm thickness
• M14: 15mm internal diameter, 28mm outside diameter, 2.5mm thickness
• M16: 17mm internal diameter, 30mm outside diameter, 3.0mm thickness
• M18: 19mm internal diameter, 34mm outside diameter, 3.0mm thickness
• M20: 21mm internal diameter, 37mm outside diameter, 3.0mm thickness
• M22: 23mm internal diameter, 39mm outside diameter, 3.0mm thickness
• M24: 25mm internal diameter, 44mm outside diameter, 4.0mm thickness
• M27: 28mm internal diameter, 50mm outside diameter, 4.0mm thickness
• M30: 31mm internal diameter, 56mm outside diameter, 4.0mm thickness
