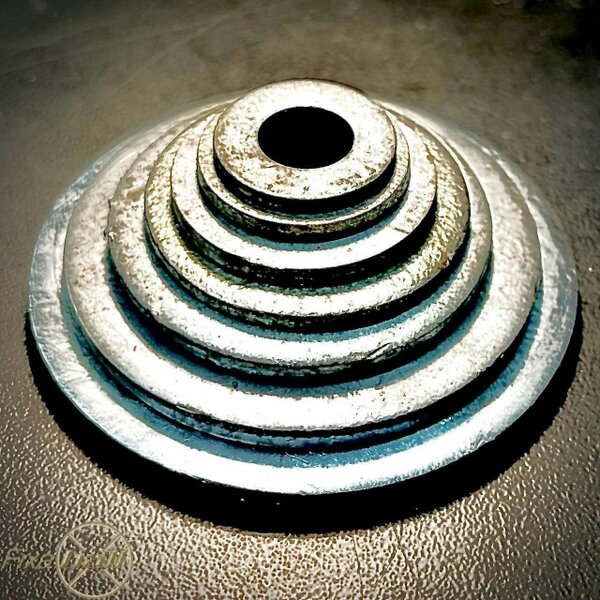

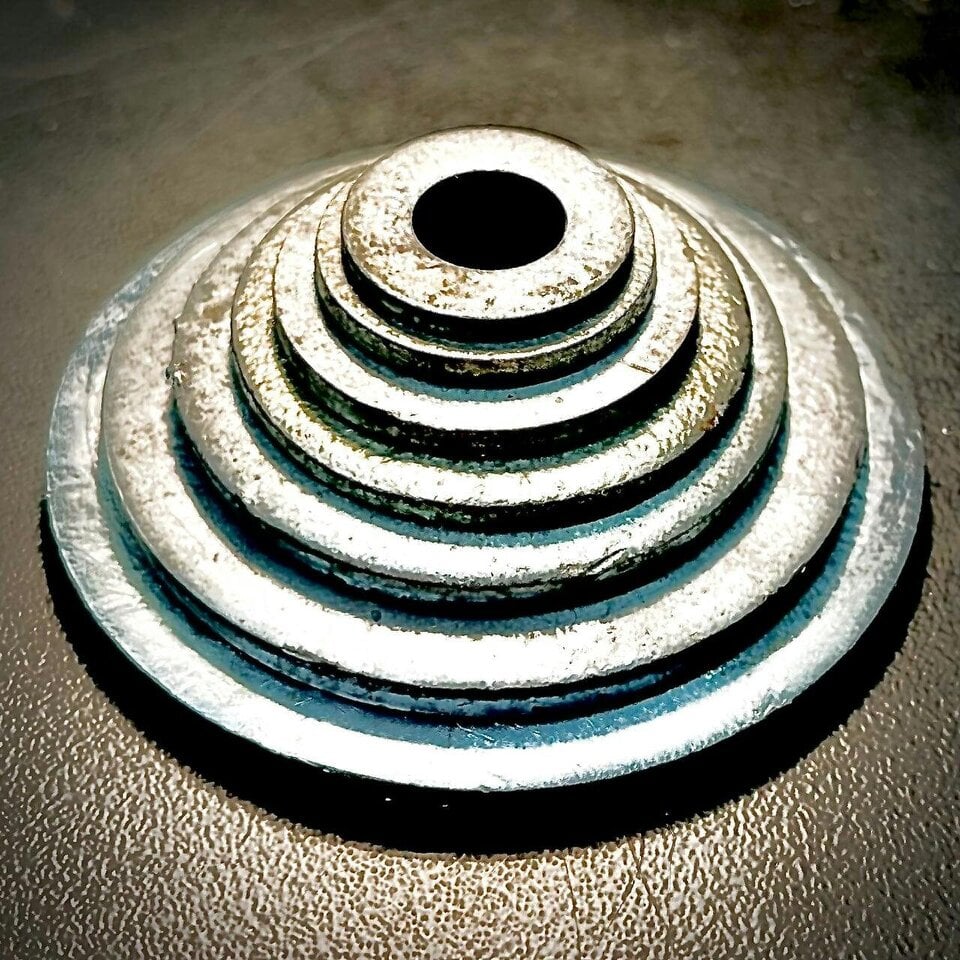

Fixaball Metric Washers Galvanised Flat Form A M8 - M36 DIN 125A

For general fastening applications, these Fixaball Form A flat washers are manufactured in galvanised steel to DIN 125A. The range covers metric sizes from M8 to M36, making them suitable for matching with corresponding bolt sizes across engineering fasteners and construction fixings.

Form A washers provide a flat bearing surface between the fastener and the material being secured. This helps distribute pressure at the fixing point and can assist with spacing and surface protection in assembled components.

Available options

• M8
• M10
• M12
• M16
• M16, Form G
• M20
• M24
• M30
• M36

Key features

• Galvanised steel flat washers
• Form A
• DIN 125A
• Metric sizes available from M8 to M36

Sizing

• M8: 8.4mm internal diameter, 16mm outside diameter, 1.6mm thickness
• M10: 10.5mm internal diameter, 20mm outside diameter, 2.0mm thickness
• M12: 13mm internal diameter, 24mm outside diameter, 2.5mm thickness
• M16: 17mm internal diameter, 30mm outside diameter, 3.0mm thickness
• M20: 21mm internal diameter, 37mm outside diameter, 3.0mm thickness
• M24: 25mm internal diameter, 44mm outside diameter, 4.0mm thickness
• M30: 31mm internal diameter, 56mm outside diameter, 4.0mm thickness
• M36: 37mm internal diameter, 66mm outside diameter, 5.0mm thickness

Rackhams Reference : PEI485321P
