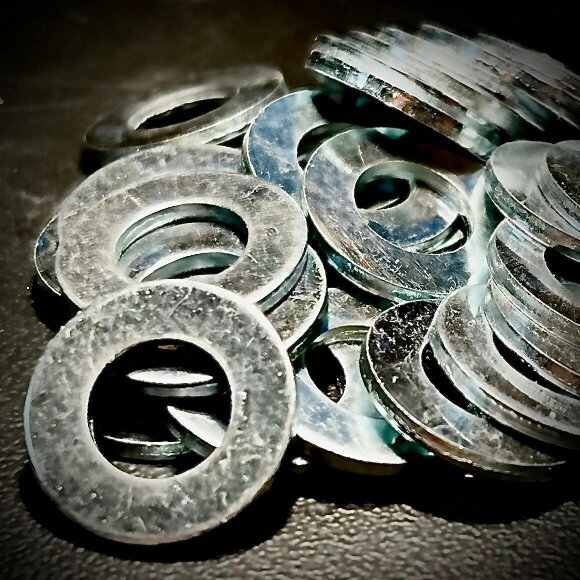

Fixaball Imperial Washers Steel BZP Zinc Table 3 Heavy Thick

For threaded fasteners, these Fixaball Table 3 heavy pattern imperial washers are made from mild steel Grade 4.8 with a bright zinc plated finish. They are suited to use with bolts and nuts where increased load distribution is required across the fastening point.

The heavy pattern format follows BS 3410 and is available in a range of imperial diameters. The BZP finish provides resistance to corrosion.

Available options

• 1/4"
• 5/16"
• 3/8"
• 7/16"
• 1/2"
• 9/16"
• 5/8"
• 3/4"
• 7/8"
• 1"
• 1. 1/8"
• 1. 1/4"
• 1. 3/8"
• 1. 1/2"
• 1. 3/4"
• 2"

Key features

• Table 3 heavy pattern
• Mild steel Grade 4.8
• Bright zinc plated (BZP) finish
• BS 3410

Specifications

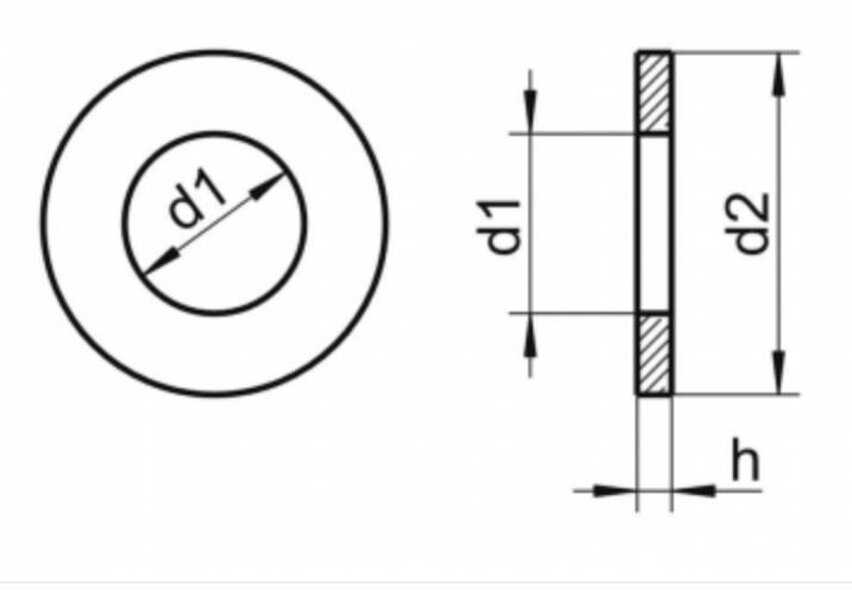

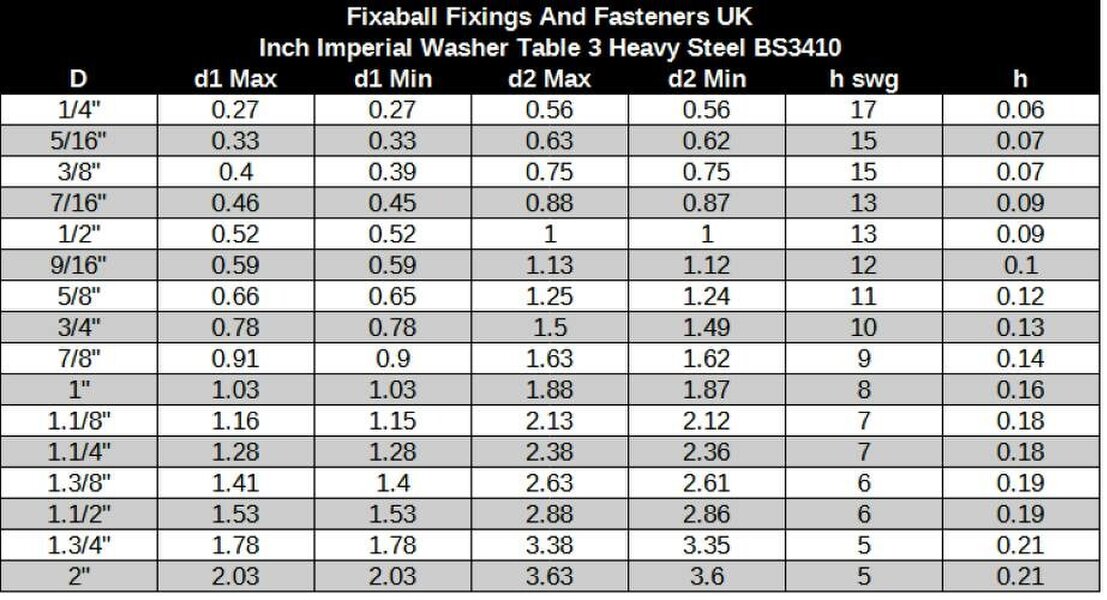

Washer dimensions

• 1/4": d1 Max 0. 27, d1 Min 0. 27, d2 Max 0. 56, d2 Min 0. 56, h swg 17, h 0. 06
• 5/16": d1 Max 0. 33, d1 Min 0. 33, d2 Max 0. 63, d2 Min 0. 62, h swg 15, h 0. 07
• 3/8": d1 Max 0. 4, d1 Min 0. 39, d2 Max 0. 75, d2 Min 0. 75, h swg 15, h 0. 07
• 7/16": d1 Max 0. 46, d1 Min 0. 45, d2 Max 0. 88, d2 Min 0. 87, h swg 13, h 0. 09
• 1/2": d1 Max 0. 52, d1 Min 0. 52, d2 Max 1, d2 Min 1, h swg 13, h 0. 09
• 9/16": d1 Max 0. 59, d1 Min 0. 59, d2 Max 1. 13, d2 Min 1. 12, h swg 12, h 0. 1
• 5/8": d1 Max 0. 66, d1 Min 0. 65, d2 Max 1. 25, d2 Min 1. 24, h swg 11, h 0. 12
• 3/4": d1 Max 0. 78, d1 Min 0. 78, d2 Max 1. 5, d2 Min 1. 49, h swg 10, h 0. 13
• 7/8": d1 Max 0. 91, d1 Min 0. 9, d2 Max 1. 63, d2 Min 1. 62, h swg 9, h 0. 14
• 1": d1 Max 1. 03, d1 Min 1. 03, d2 Max 1. 88, d2 Min 1. 87, h swg 8, h 0. 16
• 1. 1/8": d1 Max 1. 16, d1 Min 1. 15, d2 Max 2. 13, d2 Min 2. 12, h swg 7, h 0. 18
• 1. 1/4": d1 Max 1. 28, d1 Min 1. 28, d2 Max 2. 38, d2 Min 2. 36, h swg 7, h 0. 18
• 1. 3/8": d1 Max 1. 41, d1 Min 1. 4, d2 Max 2. 63, d2 Min 2. 61, h swg 6, h 0. 19
• 1. 1/2": d1 Max 1. 53, d1 Min 1. 53, d2 Max 2. 88, d2 Min 2. 86, h swg 6, h 0. 19
• 1. 3/4": d1 Max 1. 78, d1 Min 1. 78, d2 Max 3. 38, d2 Min 3. 35, h swg 5, h 0. 21
• 2": d1 Max 2. 03, d1 Min 2. 03, d2 Max 3. 63, d2 Min 3. 6, h swg 5, h 0. 21
