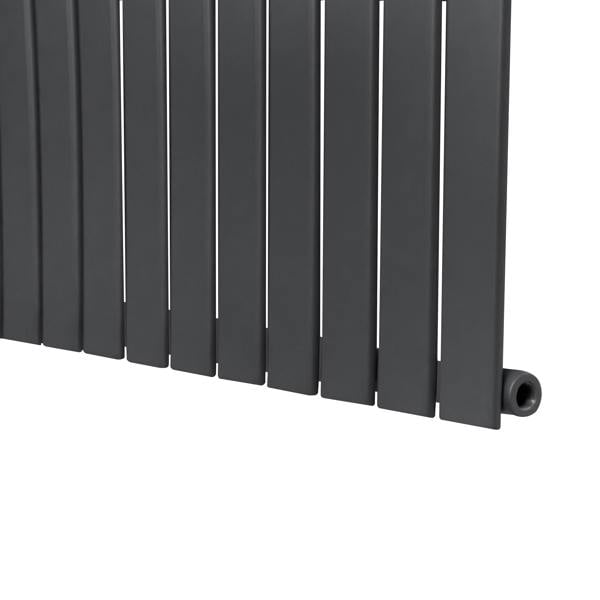

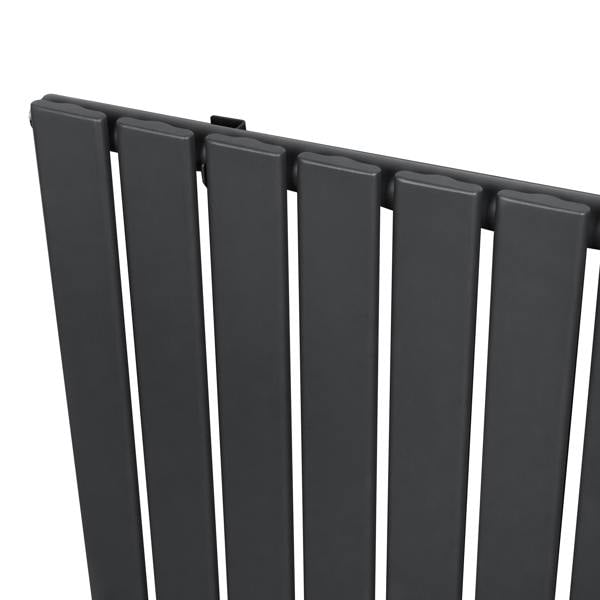

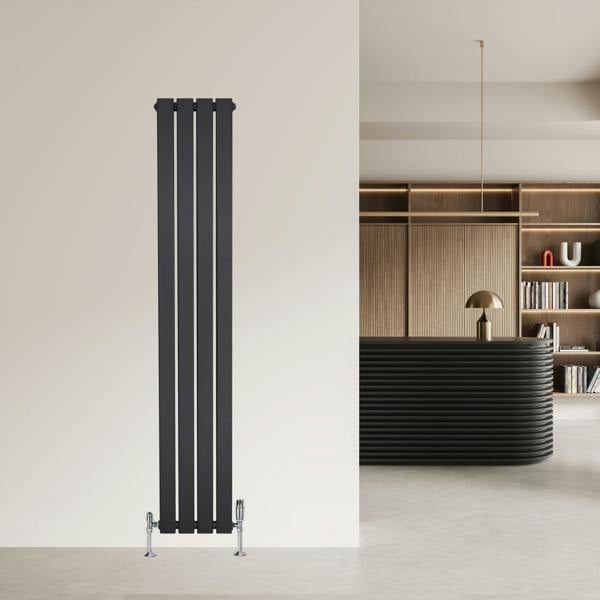

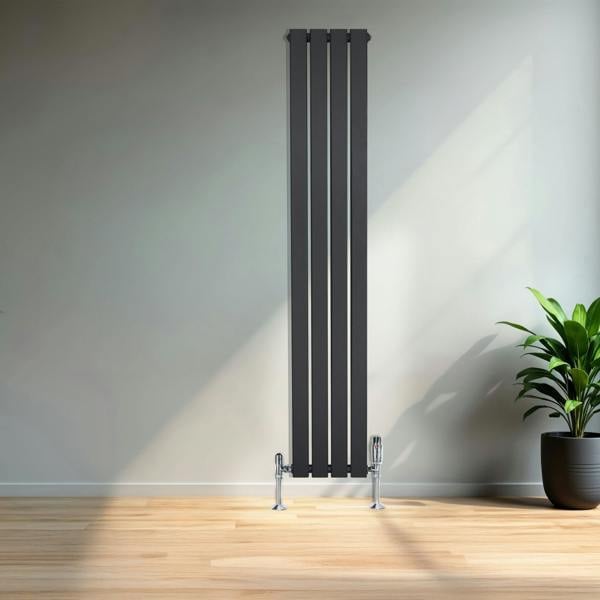

Monstershop Flat Single Column Radiator - 1600 x 280mm - Anthracite Grey

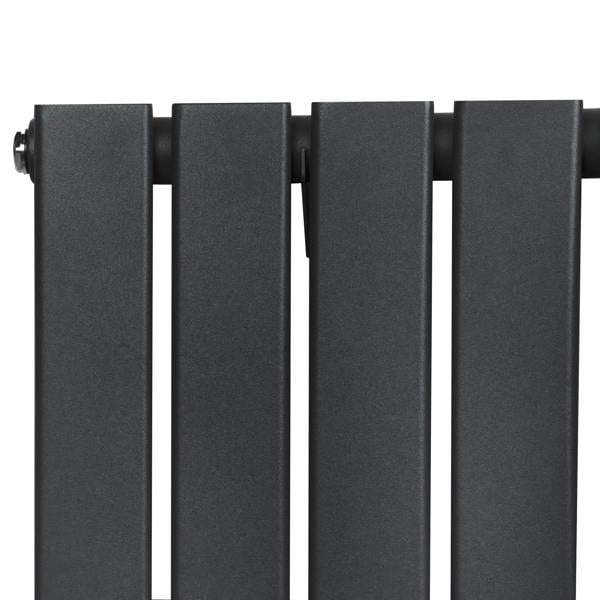

A bold, architectural update for contemporary interiors, the MonsterShop Flat Single Column Radiator brings a clean-lined look in anthracite grey. Measuring 1600 x 280mm, it suits a wide range of rooms while keeping the profile slim, with a 46mm radiator depth and 73mm depth with bracket.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it pairs a durable build with a refined, matte-style appearance. Heat output is rated at 2141 BTU @ 60 (627W @ 60), with additional figures of 1686 BTU @ 50 (494W @ 50). Standard 0.5" BSP inlets/outlets support straightforward valve selection, and the set includes brackets, a fixing kit and a flexible cleaning brush for easier upkeep. Tested to BS EN 442 and ISO9001:2015 standards, it carries CE & UKCA certification and a 15 year guarantee.

Key features

• Flat single column radiator
• 1600 x 280mm size
• Anthracite grey finish
• 1.5mm carbon steel construction
• Triple layered powder coating
• Heat output: 2141 BTU @ 60 (627W @ 60)

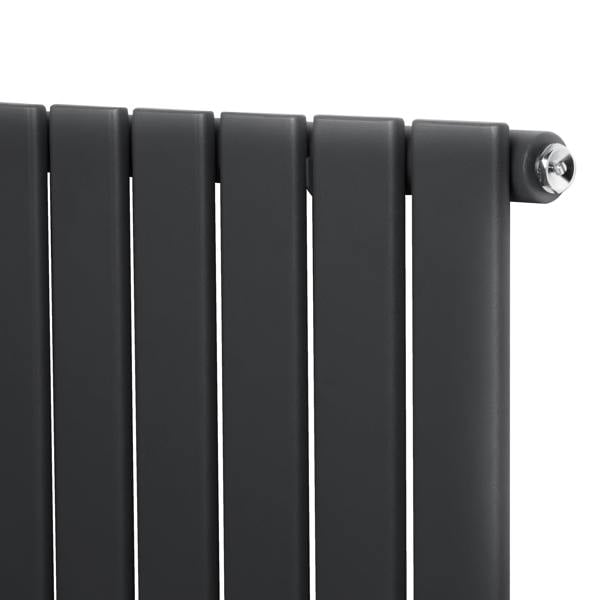

• Standard 0.5" BSP bore inlets/outlets
• 15 year guarantee

Specifications

• Weight: 11.2kg
• Height: 1600mm / 160cm / 63”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 4
• BTU rating @ 50: 1686
• BTU rating @ 60: 2141
• Watt rating @ 50: 494
• Watt rating @ 60: 627
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Flat single column radiator

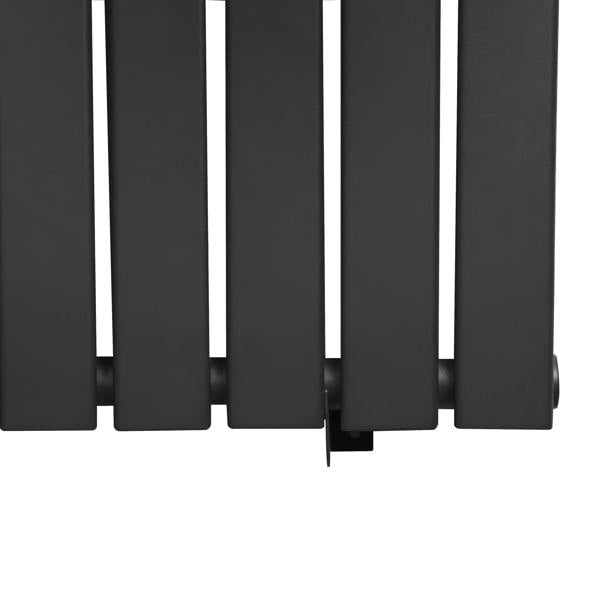

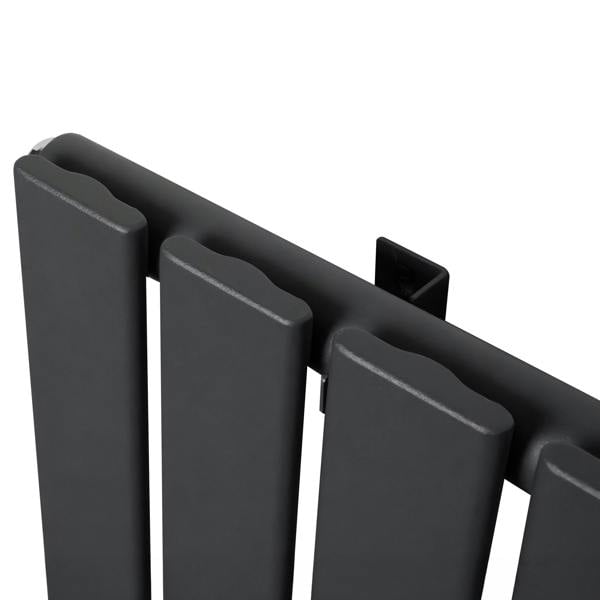

• 4 x Secure brackets
• 1 x Practical fixing kit

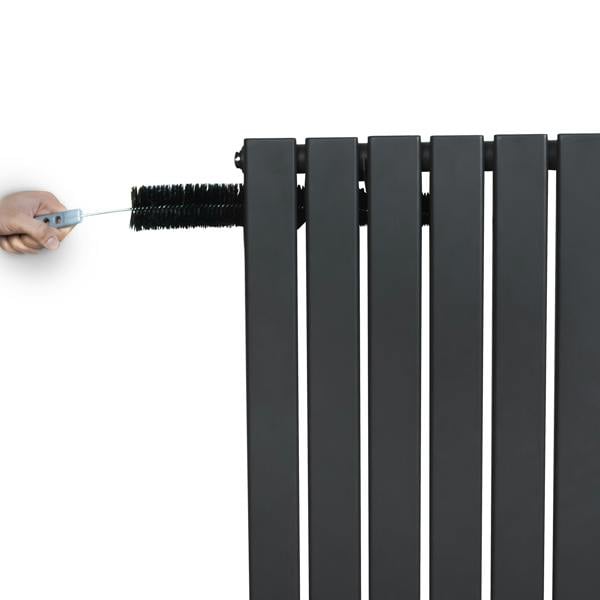

• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : R7VA4DLLR1
