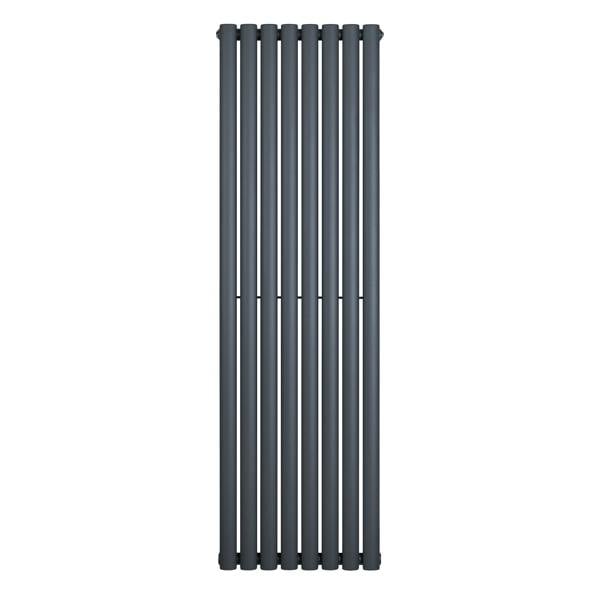

Monstershop Oval Single Column Radiator - 1600 x 480mm - Anthracite Grey

Bring a bold, architectural look to your heating with the Monstershop Oval Single Column Radiator in anthracite grey. Measuring 1600 x 480mm, this 8-column design combines a slim profile with a distinctive oval-tube silhouette, finished in a triple layered powder coating for a clean, contemporary appearance.

Made from 1.5mm carbon steel, it delivers a BTU rating @ 60 of 3838 (1125 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 10 bar. Standard 0.5" BSP inlets/outlets keep valve choice flexible, while the included brackets and fixing kit support a straightforward fit. A flexible cleaning brush is supplied for easy upkeep, and certification includes CE & UKCA, with testing to BS EN 442 & ISO9001:2015 standards. A 15-year guarantee completes the specification.

Key features

• Monstershop oval single column radiator
• 1600 x 480mm size with 8 columns
• Anthracite grey finish with triple layered powder coating
• 1.5mm carbon steel construction
• BTU rating @ 60: 3838; watt rating @ 60: 1125
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• 15-year guarantee
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards

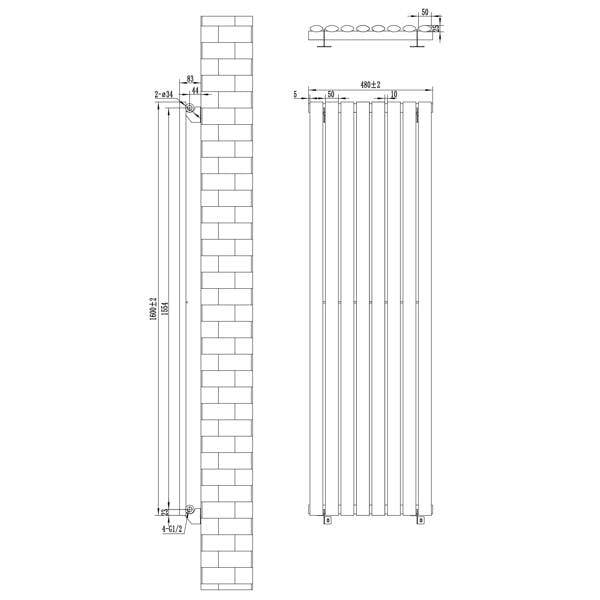

Specifications

• Colour: Anthracite Grey
• Weight: 19.2kg
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator Depth: 56mm / 5.6cm / 2.2”
• Depth With Bracket: 83mm / 8.3cm / 3.3”
• Gap Between Tubes: 10mm / 1cm / 0.4”
• Individual Oval Tube Size: 50mm x 25mm
• Number Of Columns: 8
• BTU Rating @ 50: 3024
• BTU Rating @ 60: 3838
• Watt Rating @ 50: 886
• Watt Rating @ 60: 1125
• Max Working Temperature: 95°C
• Max Working Pressure: 10 Bar
• Test Pressure: 13 Bar
• Recommended Application Area: 11m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 44mm / 4.4cm / 1.7”
• Valve-To-Valve Height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU Heating Systems

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
