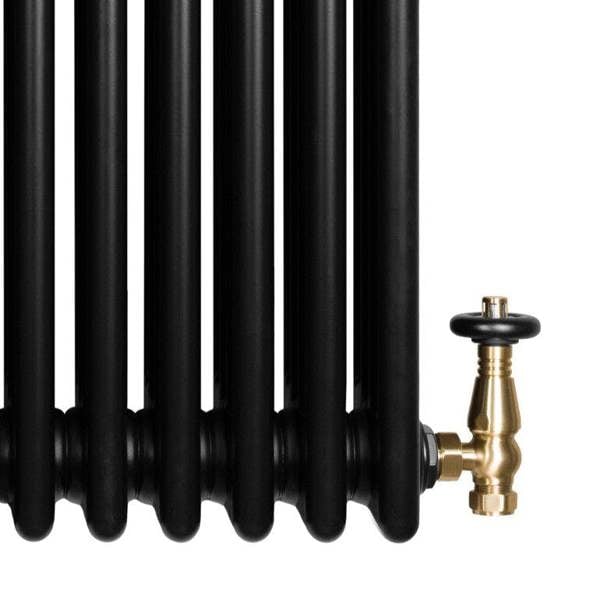

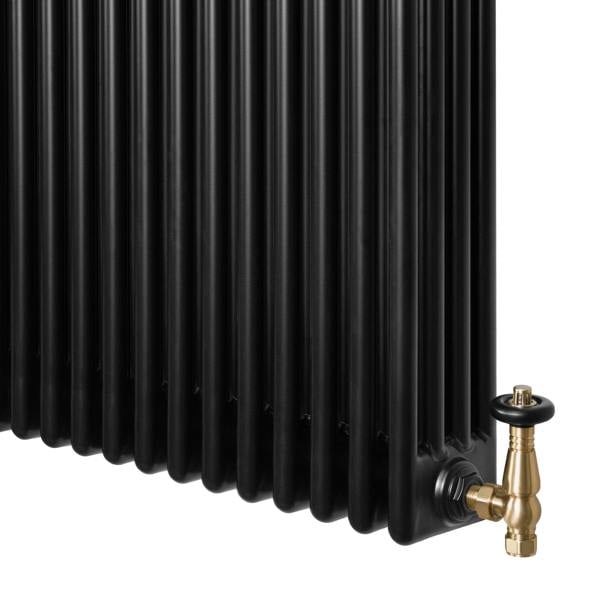

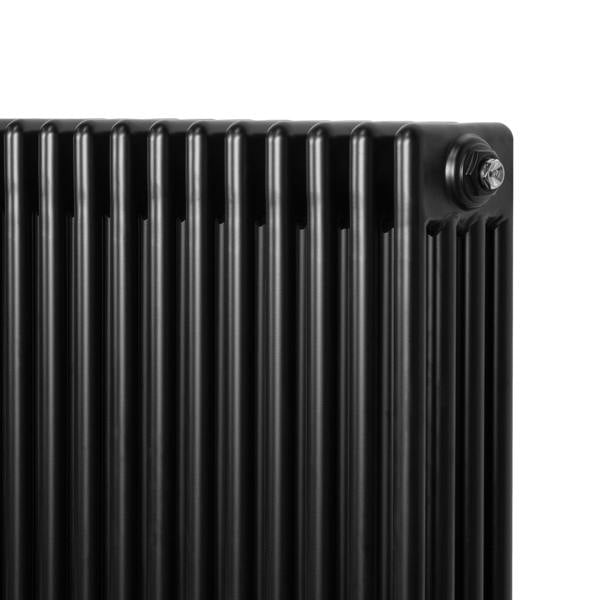

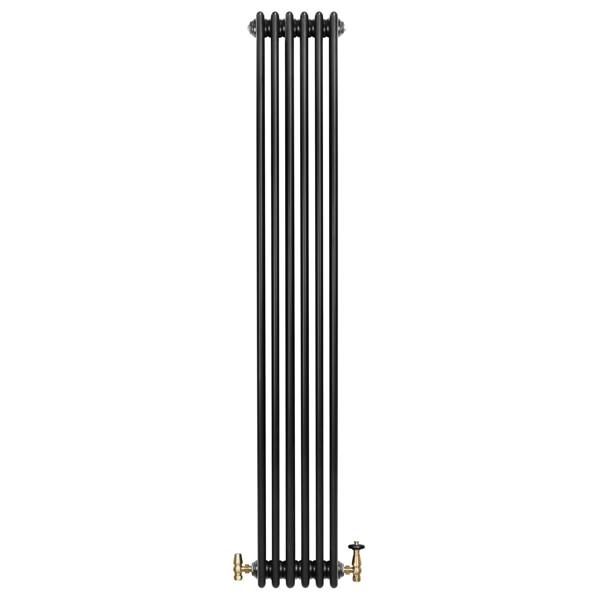

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 290mm - Black

Bring a confident, architectural look to your heating with the MonsterShop Traditional 4 Column Radiator & Valves in black. Made from 1.5mm carbon steel and finished with a triple layered powder coating, it pairs a classic column profile with a bold, modern colour choice for living spaces, hallways and larger rooms.

Measuring 1800mm high and 290mm wide, this vertical radiator delivers a BTU rating @ 60 of 5897 (1728 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Standard 0.5" BSP inlets/outlets support straightforward integration, while the supplied satin brass angled thermostatic valve set provides rotary control with a 6–28°C temperature range and an integrated lockshield valve for regulating water flow. A flexible cleaning brush, brackets and a fixing kit are included, alongside CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards.

Key features

• MonsterShop traditional style vertical column radiator with thermostatic valve set
• Size: 1800mm (H) x 290mm (W)
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Colour: black radiator with brass valve set
• Heat output: 5897 BTU rating @ 60 (1728 watts @ 60)
• Standard 0.5" BSP bore inlets/outlets
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Weight: 40.1kg
• Height: 1800mm / 180cm / 70.9”
• Width: 290mm / 29cm / 11.4”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 6
• BTU rating @ 50: 4628
• BTU rating @ 60: 5897
• Watt rating @ 50: 1356
• Watt rating @ 60: 1728
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 17m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

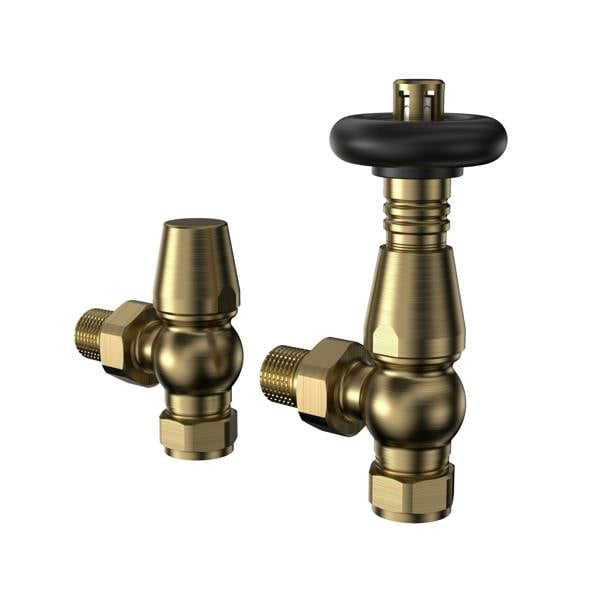

Valves

• Material: powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm (H) x 85mm (W) x 55mm (D)
• Lockshield dimensions: 87mm (H) x 75mm (W) x 34mm (D)
• Style: angled
• Control style: rotary knob
• Type: thermostatic
• Temperature range: 6–28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure brackets
• 1 x Practical fixing kit

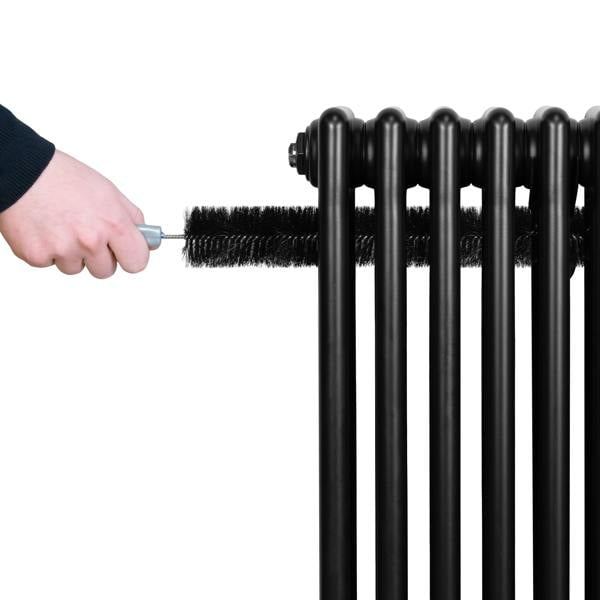

• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
