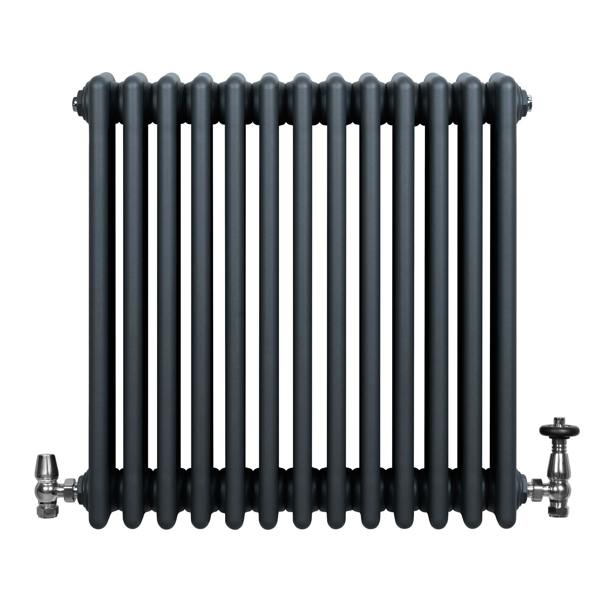

Monstershop Traditional 4 Column Radiator & Valves - 600 x 605mm - Anthracite Grey

A bold, architectural update for classic interiors, the Monstershop Traditional 4 Column Radiator & Valves combines an anthracite grey finish with a horizontal, 4-column format. Measuring 600 x 605mm, it suits a wide range of rooms while keeping a clean, structured look on the wall.

Made from 1.5mm carbon steel with a triple layered powder coating, it’s built for long-term use and everyday practicality. Heat output is rated at 2031 BTU @ 50 and 2581 BTU @ 60 (595W @ 50 and 756W @ 60), with a recommended application area of 8m². Standard 0.5" BSP inlets/outlets support straightforward integration, and the supplied angled chrome thermostatic valve set offers rotary control with a 6–28°C temperature range.

Key features

• Traditional style horizontal radiator with 4-column design
• Anthracite grey finish with triple layered powder coating
• 13 columns with 25mm individual tube size and 20mm gap between tubes
• Heat output: 2031 BTU @ 50 and 2581 BTU @ 60
• Watt rating: 595W @ 50 and 756W @ 60
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled chrome thermostatic valve set (6–28°C)
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

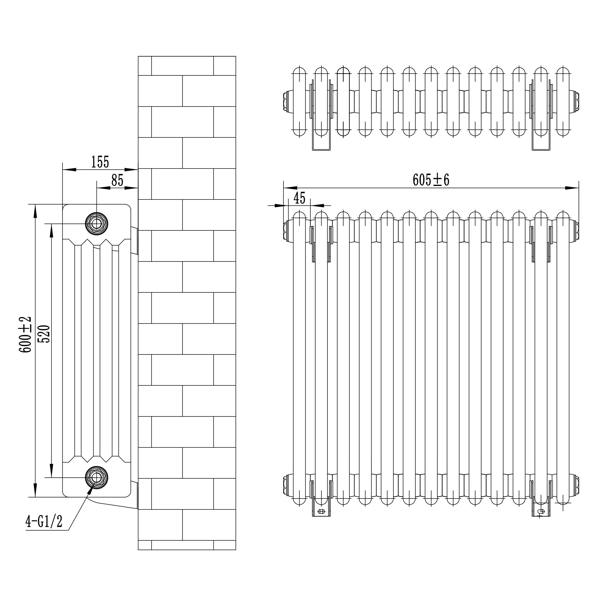

Specifications

Radiator

• Colour: Anthracite grey
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 29.8kg
• Height: 600mm / 60cm / 23.6”
• Width: 605mm / 60.5cm / 23.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 13
• BTU rating @ 50: 2031
• BTU rating @ 60: 2581
• Watt rating @ 50: 595
• Watt rating @ 60: 756
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 8m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : KND14X6U33
