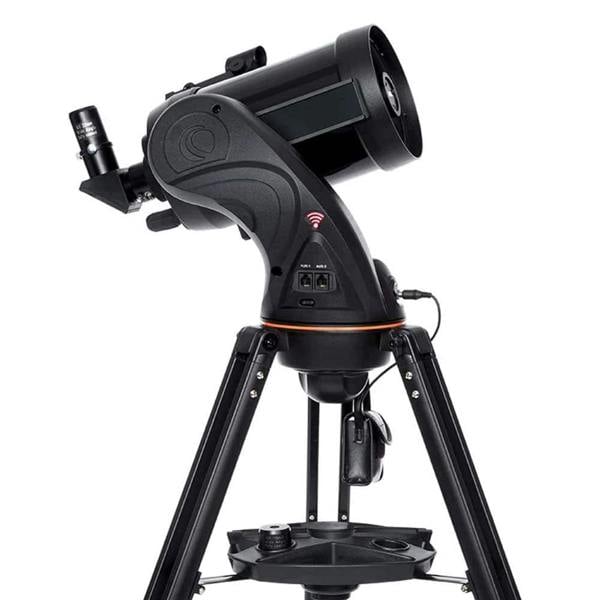

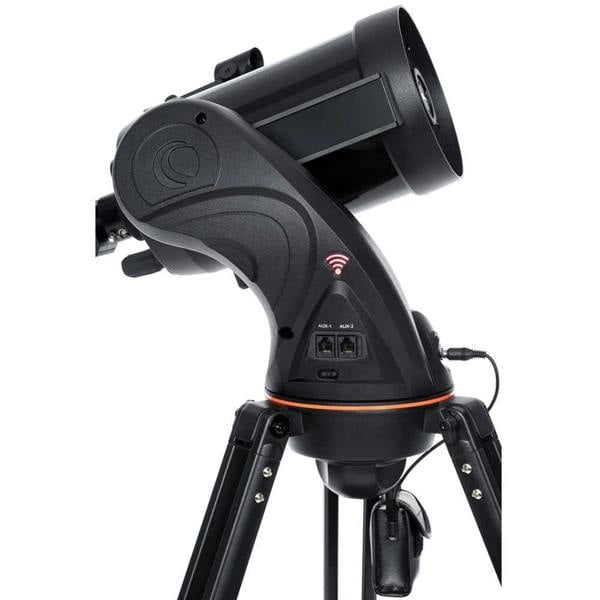

Celestron Astro Fi 5" SchmidtCassegrain Telescope

Smartphone control brings a notably clean, modern approach to this Celestron Astro Fi 5-inch Schmidt-Cassegrain telescope. With a 125mm aperture, 1250mm focal length and f/10 optical system on a computerised alt-azimuth mount, it combines compact proportions with the familiar versatility of a Schmidt-Cassegrain design.

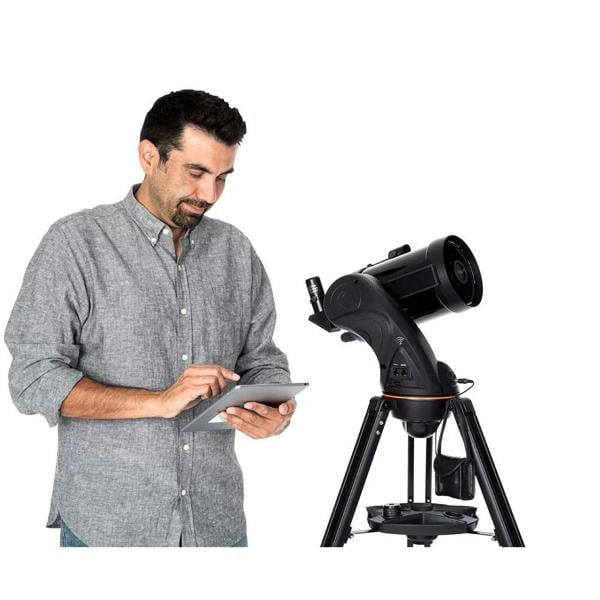

Integrated Wi-Fi works with the free Celestron SkyPortal app for iPhone, iPad and Android devices, creating a direct wireless connection between the telescope and your smart device. SkyAlign technology supports quick alignment, while the app can slew the telescope to selected objects and display information on screen. XLT fully multi-coated optics, a StarPointer red dot finderscope, two Kellner eyepieces and a 1. 25-inch mirror star diagonal complete a well-specified setup for lunar, planetary and bright deep-sky observation.

Key features

• 125mm Schmidt-Cassegrain optical tube
• 1250mm focal length with f/10 focal ratio
• Computerised alt-azimuth single fork arm mount
• Integrated Wi-Fi control via the free Celestron SkyPortal app
• XLT fully multi-coated optics
• SkyAlign alignment technology
• StarPointer red dot finderscope included
• 2 x 1. 25-inch Kellner eyepieces included
• 2-year warranty
• Model number: 22204-CGL

Specifications

Optics

• Optical design: Schmidt-Cassegrain
• Aperture: 125mm
• Focal length: 1250mm
• Focal ratio: f/10
• Highest useful magnification: 295x
• Lowest useful magnification: 18x
• Limiting stellar magnitude: 13
• Resolution (Rayleigh): 1. 11 arc seconds
• Resolution (Dawes): 0. 93 arc seconds
• Light gathering power (compared to human eye): 329x
• Secondary mirror obstruction: 50mm (1. 96-inch)
• Secondary mirror obstruction by area: 16%
• Secondary mirror obstruction by diameter: 40%
• Optical coatings: Fully coated
• Optical tube: Aluminium
• Dovetail: CG-5 dovetail bar
• Finderscope: StarPointer red dot finderscope
• Star diagonal: 1. 25-inch

Eyepieces

• Eyepiece 1 focal length: 25mm
• Eyepiece 1 magnification: 50x
• Eyepiece 2 focal length: 10mm
• Eyepiece 2 magnification: 125x

Mount

• Mount type: Computerised altitude-azimuth single fork arm
• Instrument load capacity: 3. 6kg
• Tripod leg diameter: 31. 75mm (1. 25-inch)
• Tripod material: Aluminium
• Mount head weight: 2. 3kg (5 lbs)
• Tripod weight: 2. 3kg (5 lbs)
• Slew speeds: max slew rate is 3/second
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North and EQ South
• Number of auxiliary ports: 2 x AUX port for optional accessories
• Power requirements: 12V DC, 1A (tip positive)
• Motor drive: DC servo motor
• Alignment procedures: SkyAlign, 3-Star Align, Solar System Align
• Periodic error correction: No

Software

• Software: Celestron Starry Night Special Edition software and SkyPortal app
• Database: each provides over 100,000 objects

Weight

• Product weight: 6. 44kg
• Optical tube weight: 3. 08kg (6. 8 lbs)
• Total kit weight: 7kg (16. 8 lbs)

Sizing

• Optical tube length: 355. 6mm (14-inch)
• Optical tube diameter: 180mm
• Height adjustment range (includes mount and tripod): 863. 6mm - 1371. 6mm (34-inch - 54-inch)

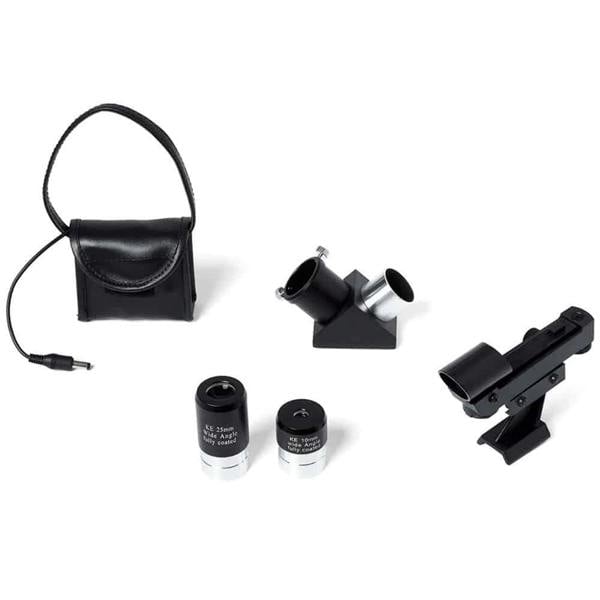

In the box

• Mount and tripod

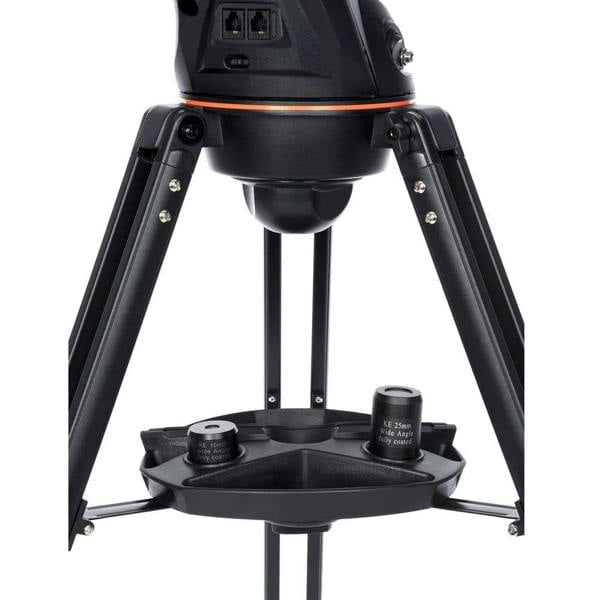

• Accessory tray
• 25mm eyepiece
• 10mm eyepiece
• StarPointer red dot finderscope
• 1. 25-inch mirror star diagonal
• Battery pouch

Support & warranty

2-year warranty.
