Celestron EQ Wedge for NexStar Evolution and SE 6/8

For NexStar Evolution and NexStar SE owners ready to move beyond basic tracking, the Celestron EQ Wedge converts a compatible Alt-Az mounted telescope into an equatorial platform for longer-exposure imaging. Built for the NexStar Evolution 6/8/9. 25 and NexStar SE 6/8 mounts, it supports astrophotography and autoguiding while keeping the setup portable.

Adjustment is straightforward, with captive hardware, tool-less operation and the ability to fine-tune under load. A sturdy latitude adjustment screw, easy-to-read scale and integrated bubble level help with accurate setup, while the wedge’s solid construction is balanced with a manageable overall weight. It suits beginner to intermediate users looking to expand the imaging capability of their existing Celestron mount.

Key features

• Equatorial wedge for compatible Celestron NexStar Evolution and NexStar SE Alt-Az mounted computerised telescopes
• Supports long-exposure astrophotography and autoguiding by converting the mount to an equatorial platform
• Captive hardware and tool-less operation
• Easily adjustable under load

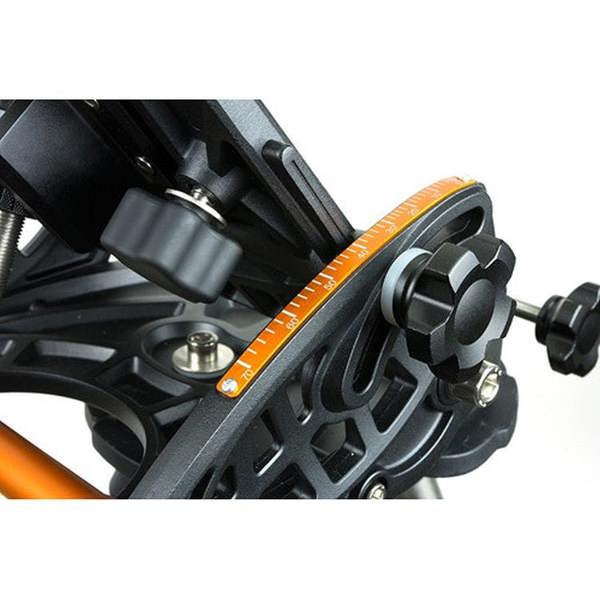

• Sturdy latitude adjustment screw with easy-to-read scale
• Integrated bubble level
• Portable, sturdy design
• Model number: 93665-CGL

Specifications

• Load capacity: 36 lbs
• Weight: 15 lbs
• Mount compatibility: NexStar Evolution 6/8/9. 25, NexStar SE 6/8
• Latitude range: 0 - 70
• Product weight: 9. 71 kg

In the box

• Wedge
• 5 hex keys for assembly
• Instruction manual

Support & warranty

• 2-year warranty

Rackhams Reference : F5IBBUXNTA
