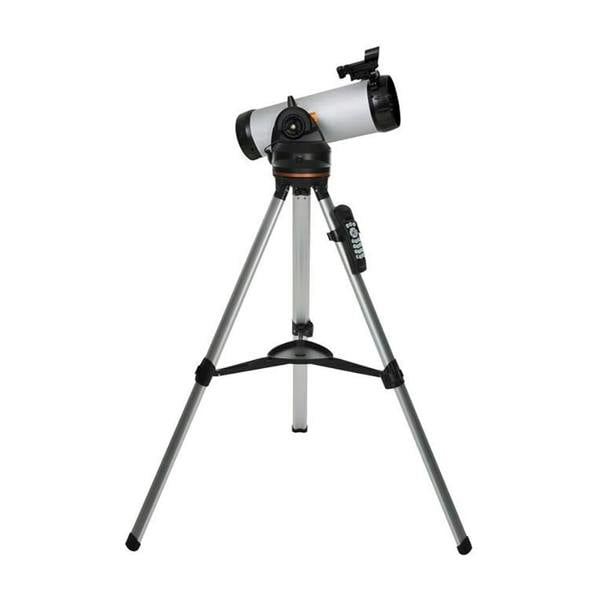

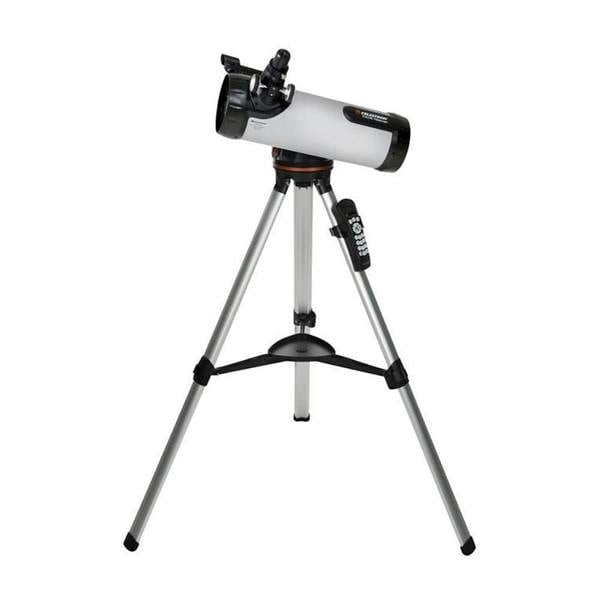

Celestron Short Reflector Telescope LCM 114

For straightforward, computerised observing, the Celestron LCM 114 reflector telescope brings together a 114mm Newtonian reflector, 1000mm focal length and a motorised alt-azimuth mount in one accessible setup. Within the first moments of use, the NexStar+ hand control and SkyAlign procedure provide automatic location of thousands of celestial objects, while the built-on StarPointer red dot finderscope helps with initial aiming.

Fully coated glass optics and the largest light-gathering aperture in the LCM range give this model strong visual reach for lunar, planetary and deep-sky observation. A full-height aluminium tripod is included, along with two eyepieces for 40x and 111x magnification straight from the box. Sky Tour can generate a list of currently visible objects, and the mount supports sidereal, solar and lunar tracking rates. With its beginner-friendly operation and substantial 114mm aperture, this telescope suits those starting out with a computerised astronomy setup.

Key features

• 114mm Newtonian reflector telescope
• 1000mm focal length with f/8. 77 focal ratio

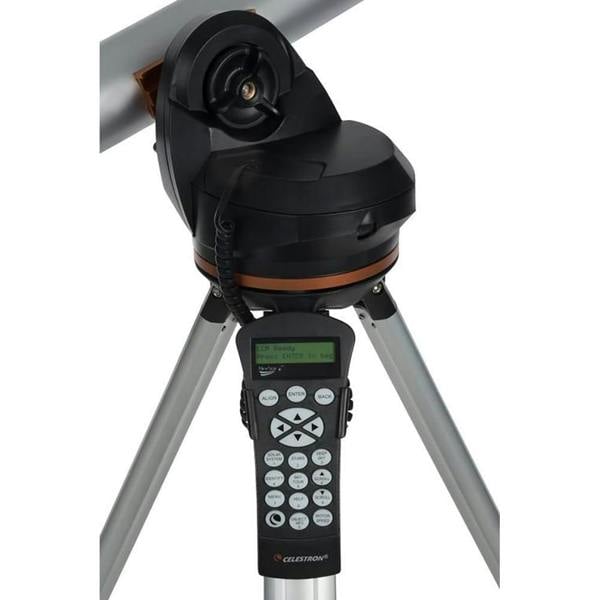

• Motorised alt-azimuth mount with NexStar+ hand control
• SkyAlign alignment system with Sky Tour function
• Fully coated glass optics

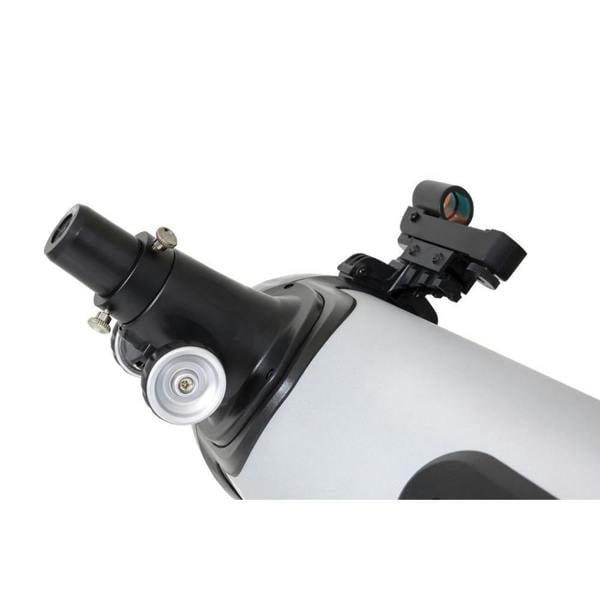

• Built-on StarPointer red dot finderscope
• Full-height aluminium tripod with no-tool quick-release accessory tray
• 2-year warranty
• Model number: 31150-CGL

Specifications

Optics

• Optical design: Newtonian Reflector
• Aperture: 114mm (4. 49")
• Focal length: 1000mm (39")
• Focal ratio: f/8. 77
• Highest useful magnification: 269x
• Lowest useful magnification: 16x
• Limiting stellar magnitude: 12. 8
• Resolution (Rayleigh): 1. 22 arc seconds
• Resolution (Dawes): 1. 02 arc seconds
• Light gathering power (compared to human eye): 265x
• Optical coatings: Fully Coated

Eyepieces and viewing

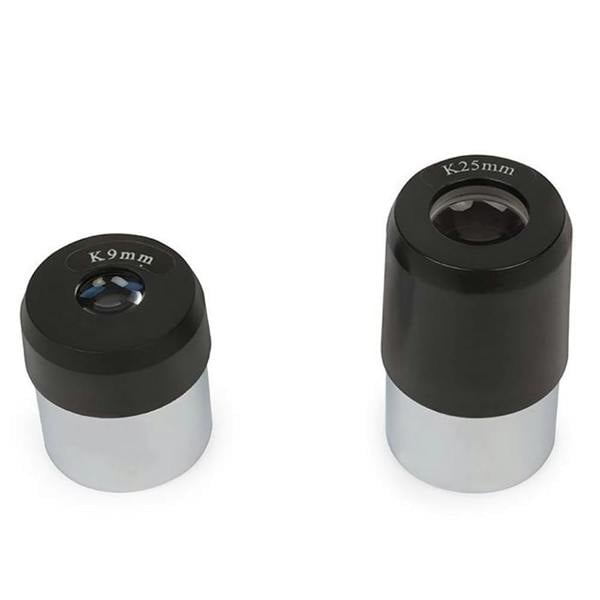

• Eyepiece 1 focal length: 25mm
• Eyepiece 1 magnification: 40x
• Eyepiece 2 focal length: 9mm
• Eyepiece 2 magnification: 111x
• Apparent field of view: 1. 6
• Linear field of view (@1000 yds): 84 ft (26 m)
• Finderscope: Built-on StarPointer red dot finderscope

Mount

• Mount type: Motorised Altazimuth
• Slew speeds: Nine slew speeds
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North and EQ South
• Alignment procedures: SkyAlign, Auto 2-Star Align, 1-Star Align, 2-Star Align, Solar System Align
• Computer hand control: Fully Computerised / Flash Upgradeable
• NexStar+ database: 40,000 object database

General

• Tripod: Aluminium
• Weight: 9. 43kg
• Skill level: Beginner
• Software: Celestron Starry Night Basic Edition Software and SkyPortal App
• Technologies: CPWI, S. N. Basic Edition

In the box

• 25mm eyepiece
• 9mm eyepiece
• Built-on StarPointer red dot finderscope
• Full-height aluminium tripod
• No-tool quick-release accessory tray

Support & warranty

• 2-year warranty

Rackhams Reference : DY1H2NSZ4J
