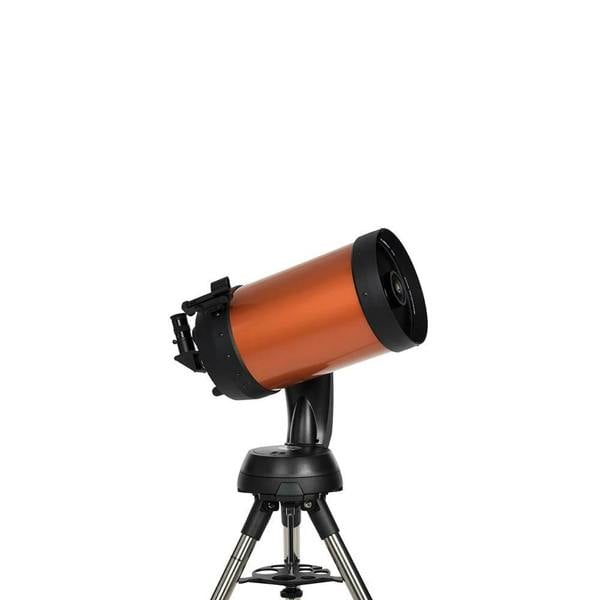

Celestron NexStar 8SE Computerised Telescope

For observers ready to move into a more capable computerised setup, the Celestron NexStar 8SE brings together an 203. 2mm Schmidt-Cassegrain optical tube, 2032mm focal length and f/10 focal ratio on a computerised alt-azimuth single fork arm mount. As the largest model in the SE range, it pairs substantial aperture with a format that breaks down into separate components for transport and straightforward assembly.

Celestron’s orange-tube NexStar 8SE combines automated object location and tracking with a database of 40,000 celestial objects, operated through the included NexStar+ hand control. SkyAlign support keeps setup simple, while StarBright XLT optical coatings and the supplied 25mm eyepiece complete a well-specified system for lunar, planetary and deep-sky observation. The steel tripod includes an accessory tray, and the mount supports multiple tracking rates and alignment procedures for flexible observing sessions.

Key features

• 203. 2mm Schmidt-Cassegrain optical system
• 2032mm focal length with f/10 focal ratio
• Computerised alt-azimuth single fork arm mount
• Database of 40,000 celestial objects with automatic locating and tracking
• SkyAlign technology for quick alignment
• StarBright XLT optical coatings
• Steel tripod with accessory tray
• USB port and autoguide port
• Model number: 11069-CGL

Specifications

Optics

• Optical design: Schmidt-Cassegrain
• Aperture: 203. 2mm
• Focal length: 2032mm
• Focal ratio: f/10
• Highest useful magnification: 480x
• Lowest useful magnification: 29x
• Optical coatings: StarBright XLT
• Limiting stellar magnitude: 14
• Resolution (Rayleigh): 0. 69 arc seconds
• Resolution (Dawes): 0. 57 arc seconds
• Light gathering power (compared to human eye): 843x
• Secondary mirror obstruction: 64mm (2. 5")
• Secondary mirror obstruction by diameter: 31%
• Secondary mirror obstruction by area: 9. 77%

Included optical components

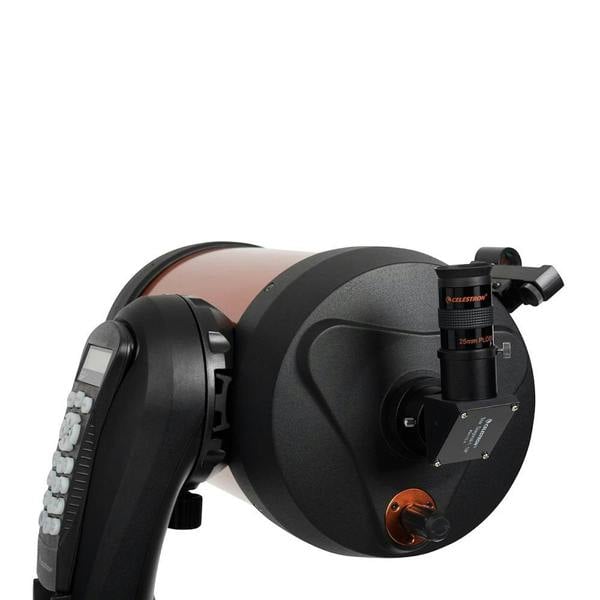

• Eyepiece: 25mm
• Eyepiece magnification: 81x
• Finderscope: StarPointer red dot finderscope
• Star diagonal: 1. 25"
• Dovetail: CG-5 dovetail bar

Mount and control

• Mount type: Computerised altitude-azimuth single fork arm
• Instrument load capacity: 12 lbs (5. 44 kg)
• Slew speeds: 9 slew speeds - max speed 5/second
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North & EQ South
• Alignment procedures: SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, EQ North / EQ South Alignment (EQ align requires an equatorial wedge)
• Periodic error correction: No

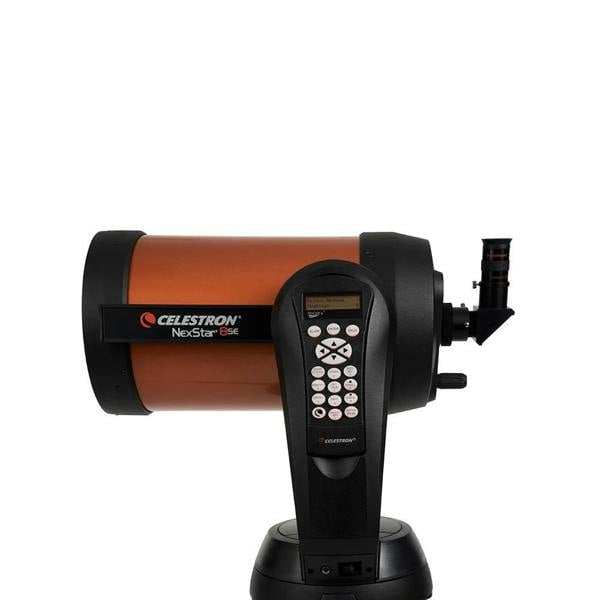

• Computerised hand control: Double line, 18 character Liquid Crystal Display with 19 fibre optic backlit LED buttons
• NexStar+ database: 40,000 objects

Connectivity and power

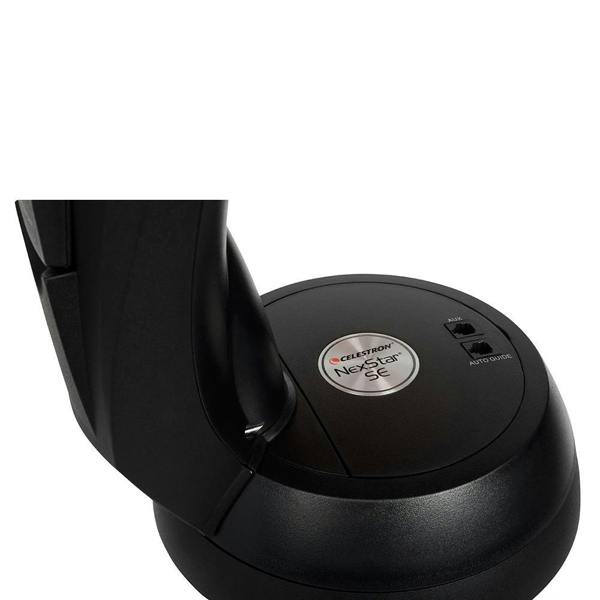

• Number of auxiliary ports: 1x Aux port
• Autoguide port: Yes
• USB port: Yes, hand control input
• Power requirements: 8-AA batteries (not included) | 12 VDC-750 mA (tip positive)
• Motor drive: DC serve motors
• GPS: N/A
• Dovetail compatibility: CG-5 dovetail

Build

• Tripod leg diameter: 50. 8mm (2") stainless steel
• Accessory tray: Yes
• Optical tube weight: 12 lbs (5. 4 kg)
• Mount head weight: 11 lbs (5 kg)
• Tripod weight: 9 lbs (4. 08 kg)
• Weight: 22. 00 kg
• Skill level: Intermediate

Sizing

• Optical tube length: 432mm (17")
• Optical tube diameter: 232mm (9. 1")
• Height adjustment range (includes mount and tripod): 965. 2mm - 1422. 4mm (38" - 56")

In the box

• 25mm eyepiece
• StarPointer red dot finderscope
• 1. 25" star diagonal
• Steel tripod
• Accessory tray
• NexStar+ hand control

Support & warranty

• 2-year warranty

Rackhams Reference : VZUIS7JEUJ
