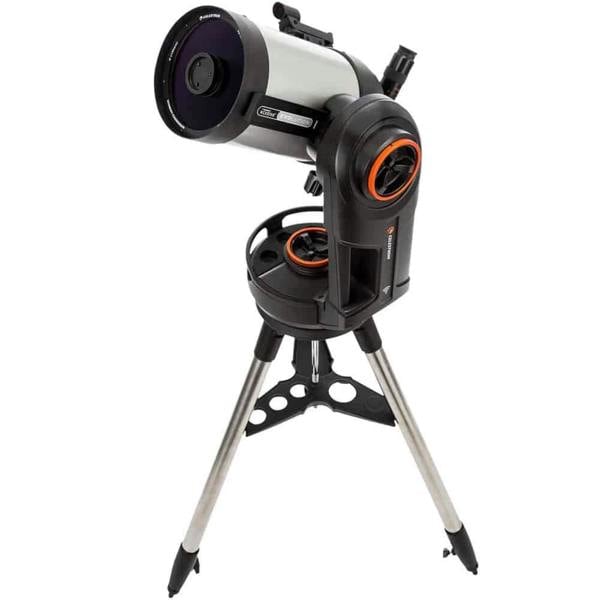

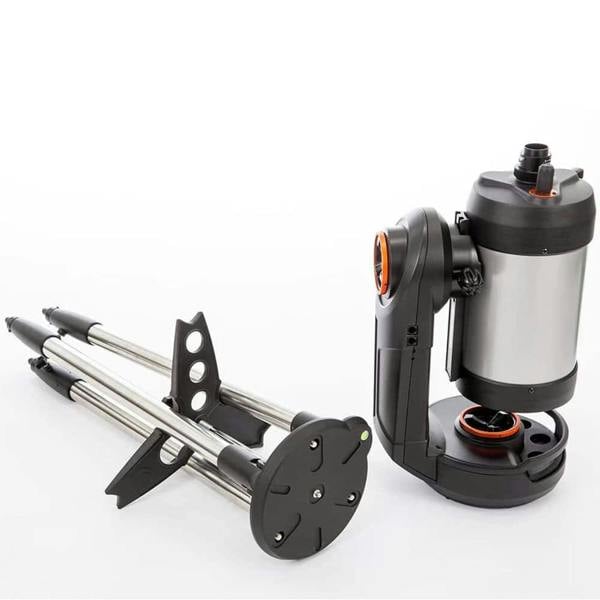

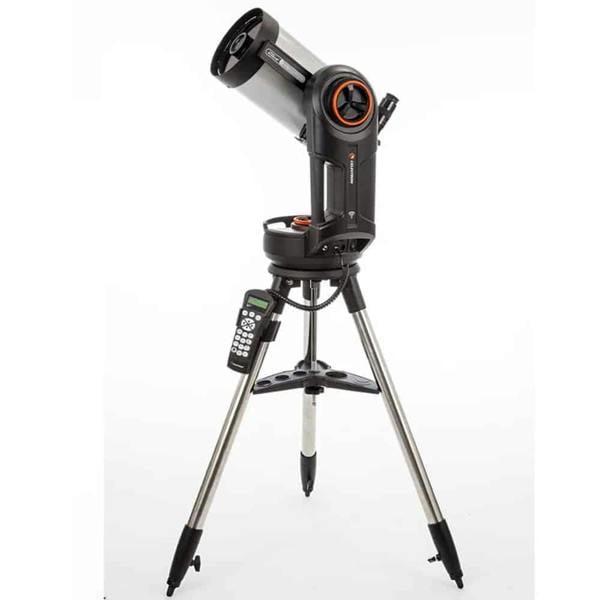

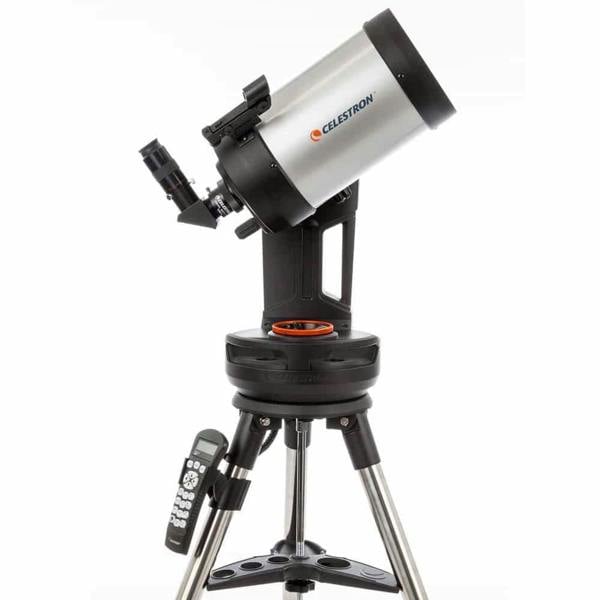

Celestron NexStar Evolution 6 Computerised Telescope

Built for streamlined, app-based observing, the Celestron NexStar Evolution 6 is a computerised Schmidt-Cassegrain telescope with a 150mm aperture, 1500mm focal length and f/10 optical system on a computerised alt-azimuth single fork arm mount. Built-in Wi-Fi works with the free Celestron SkyPortal app, giving smartphone or tablet control alongside real-time sky navigation and SkyAlign alignment.

This 6-inch model pairs StarBright XLT optical coatings with a rechargeable lithium iron phosphate battery, integrated carry handles and manual clutches in both altitude and azimuth. The all-metal tripod includes a metal accessory tray, while two accessory trays provide storage for up to 7 eyepieces, with adjustable red LED illumination on one tray. A USB charging port is built in for powering a smart device during observing sessions, and the telescope is also compatible with the HD Pro Wedge when used with the CPC tripod, both available separately.

Key features

• 150mm Schmidt-Cassegrain optical system with 1500mm focal length and f/10 focal ratio
• Computerised alt-azimuth single fork arm mount with built-in Wi-Fi
• StarBright XLT optical coatings
• Rechargeable 9. 6V, 4. 5Ah lithium iron phosphate battery
• Free Celestron SkyPortal app for iOS and Android with SkyAlign alignment
• Manual clutches in altitude and azimuth
• USB charging port for a smart device

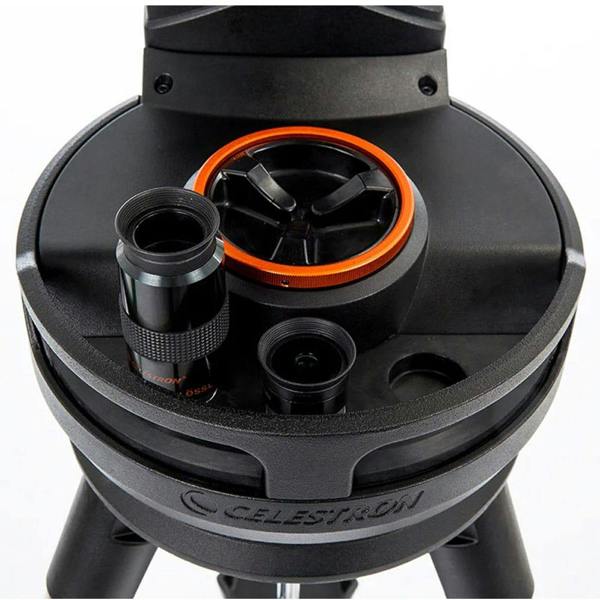

• Two accessory trays, one with adjustable red LED illumination
• 2-year warranty
• Model number: 12090-CGL

Specifications

Optics

• Optical design: Schmidt-Cassegrain
• Aperture: 150mm (6-inch)
• Focal length: 1500mm (59-inch)
• Focal ratio: f/10
• Highest useful magnification: 354x
• Lowest useful magnification: 21x
• Limiting stellar magnitude: 13. 4
• Resolution (Rayleigh): 0. 93 arc seconds
• Resolution (Dawes): 0. 77 arc seconds
• Light gathering power (compared to human eye): 459x
• Secondary mirror obstruction: 56mm (2. 2-inch)
• Secondary mirror obstruction by diameter: 37%
• Secondary mirror obstruction by area: 14%
• Optical coatings: StarBright XLT
• Optical tube: Aluminium
• Dovetail: CG-5 dovetail bar

Mount

• Mount type: Computerised altitude-azimuth single fork arm
• Instrument load capacity: 11kg (25 lbs)
• Tripod leg diameter: 38. 1mm (1. 5-inch) stainless steel
• Accessory tray: Yes
• Slew speeds: 9 slew speeds - max speed 4/second
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North and EQ South
• Dovetail compatibility: CG-5 saddle plate
• Number of auxiliary ports: 4 AUX ports
• USB port: Yes, hand control input and mount output
• Power requirements: Internal 9. 6V, 4. 5Ah lithium iron phosphate battery (LiFePO4), charge battery with 12VDC, 5. 0 Amps
• Motor drive: DC
• Weight: 25. 40kg

Sizing

• Optical tube length: 406mm (16-inch)
• Optical tube diameter: 184. 15mm (7. 25-inch)
• Height adjustment range (includes mount and tripod): 1193. 8mm - 1752. 6mm (47-inch – 69-inch)

In the box

• StarPointer finderscope
• 40mm 1. 25-inch Plossl eyepiece
• 13mm 1. 25-inch Plossl eyepiece
• 1. 25-inch star diagonal
• AC adapter
• Traditional NexStar+ hand control

Support & warranty

• 2-year warranty
