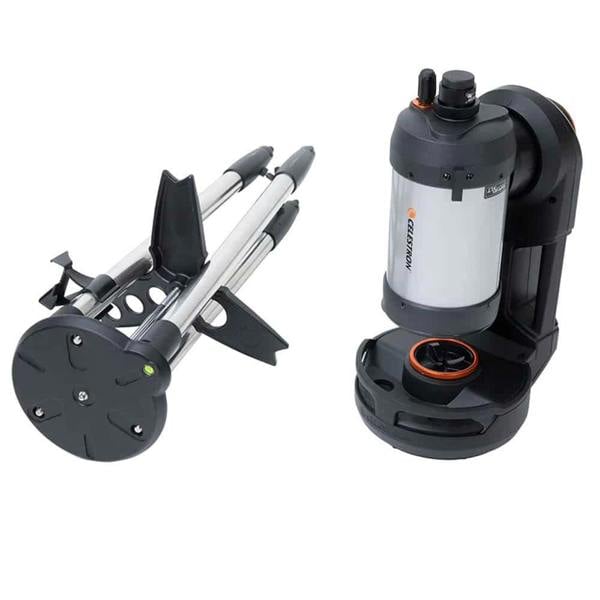

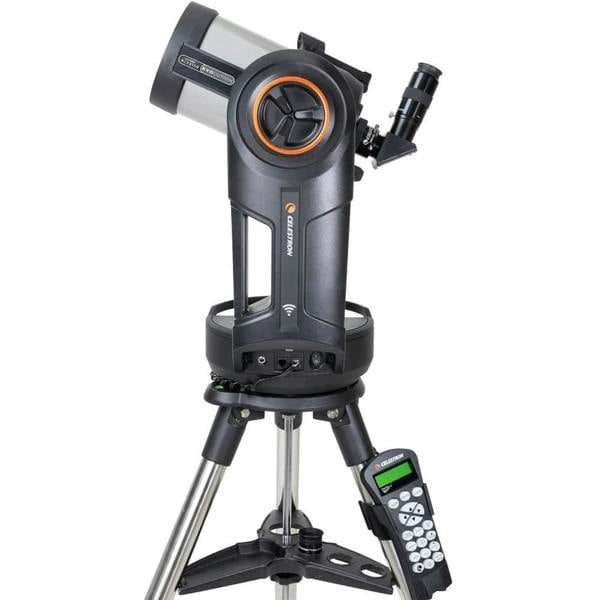

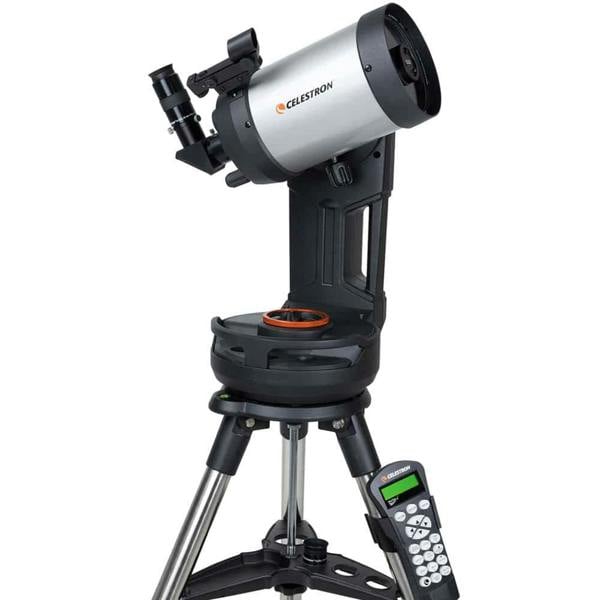

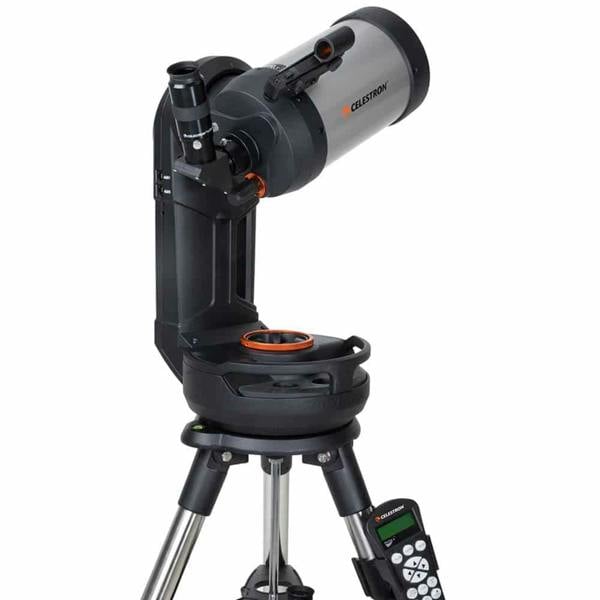

Celestron NexStar Evolution 5 Computerised Telescope

Built for streamlined, app-led observing, the Celestron NexStar Evolution 5 is a Schmidt-Cassegrain telescope with a 125mm aperture, 1250mm focal length and f/10 optical system on a computerised alt-azimuth mount. Built-in Wi-Fi works with the free Celestron SkyPortal app, giving direct control from a smartphone or tablet, while StarBright XLT optical coatings support bright, sharp views.

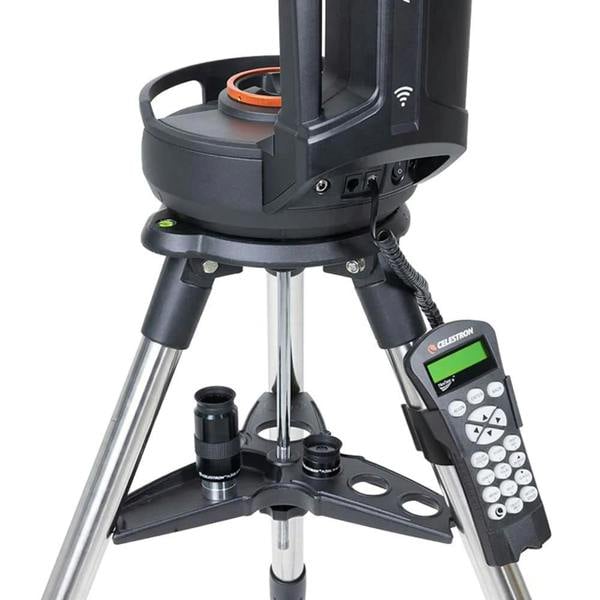

This model combines a single fork arm mount with an internal lithium iron phosphate battery, manual clutches in altitude and azimuth, and integrated carry handles for easier setup and transport. The all-metal tripod includes a metal accessory tray, and a USB charging port is built in for powering a smart device during observing sessions. A traditional NexStar+ hand control is included, alongside two 1. 25-inch Plossl eyepieces, a 1. 25-inch 90 prism star diagonal and a StarPointer red dot finderscope. Suitable for visual observing and for those beginning with astroimaging, it is also compatible with the HD Pro Wedge when used with the CPC tripod, both available separately.

Key features

• 125mm Schmidt-Cassegrain optical tube with 1250mm focal length and f/10 focal ratio
• Computerised alt-azimuth single fork arm mount with built-in Wi-Fi
• StarBright XLT optical coatings
• Internal 9. 6V, 4. 5Ah lithium iron phosphate battery
• USB charging port
• Manual clutches in both altitude and azimuth
• Four AUX ports
• 2-year warranty
• Model number: 12095-CGL

Specifications

Optics

• Optical design: Schmidt-Cassegrain
• Aperture: 125mm (5-inch)
• Focal length: 1250mm (49-inch)
• Focal ratio: f/10
• Highest useful magnification: 295x
• Lowest useful magnification: 18x
• Limiting stellar magnitude: 13
• Resolution (Rayleigh): 1. 11 arc seconds
• Resolution (Dawes): 0. 93 arc seconds
• Light gathering power (compared to human eye): 329x
• Secondary mirror obstruction: 51mm (2-inch)
• Secondary mirror obstruction by diameter: 40%
• Secondary mirror obstruction by area: 17%
• Optical coatings: StarBright XLT
• Optical tube material: Aluminium
• Dovetail: CG-5 dovetail bar
• Focal length of eyepiece 1: 40mm (1. 57-inch)
• Magnification of eyepiece 1: 31x
• Focal length of eyepiece 2: 13mm (0. 51-inch)
• Magnification of eyepiece 2: 96x
• Finderscope: StarPointer red dot finderscope
• Star diagonal: 90 prism, 1. 25-inch

Mount

• Mount type: Computerised altitude-azimuth single fork arm
• Instrument load capacity: 11kg (25 lbs)
• Tripod leg diameter: 31. 75mm (1. 25-inch) stainless steel
• Mount head weight: 7kg (16 lbs)
• Accessory tray: Yes
• Tripod weight: 5. 44kg (12 lbs)
• Slew speeds: 9 slew speeds, max speed 4/second
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North and EQ South
• Dovetail compatibility: CG-5 saddle plate
• Number of auxiliary ports: 4 AUX ports
• USB port: Yes, hand control input and mount output
• Power requirements: Internal 9. 6V, 4. 5Ah lithium iron phosphate battery (LiFePO4)
• Motor drive: DC servo motors
• Alignment procedures: SkyAlign, 1-Star

General

• Skill level: Intermediate
• Weight: 24. 95kg
• Technologies: CPWI, S. N. Special Edition, SkyAlign Technology

Sizing

• Optical tube length: 330mm (13-inch)
• Optical tube diameter: 152mm (6-inch)
• Optical tube weight: 4. 54kg (10 lbs)
• Height adjustment range (includes mount and tripod): 1193. 8mm - 1752. 6mm (47-inch – 69-inch)

In the box

• StarPointer red dot finderscope
• Two 1. 25-inch Plossl eyepieces
• 1. 25-inch 90 prism star diagonal
• NexStar+ hand control
• AC adapter

Support & warranty

• 2-year warranty
