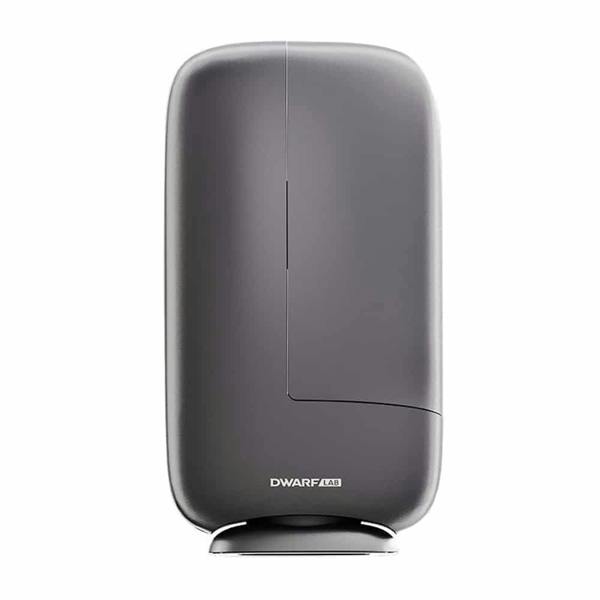

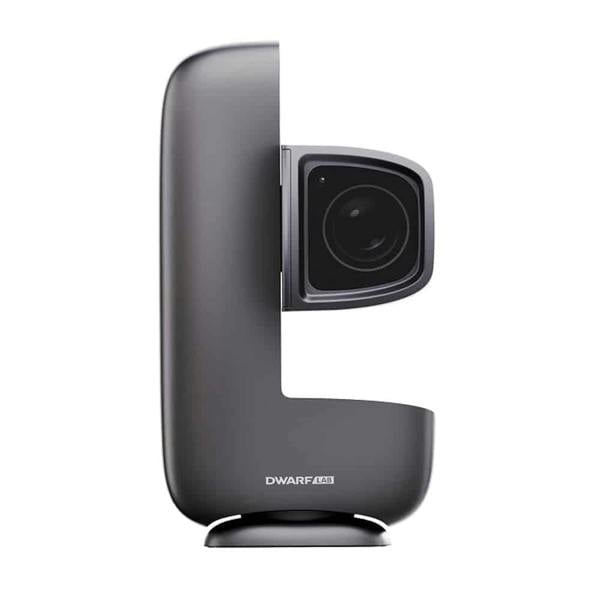

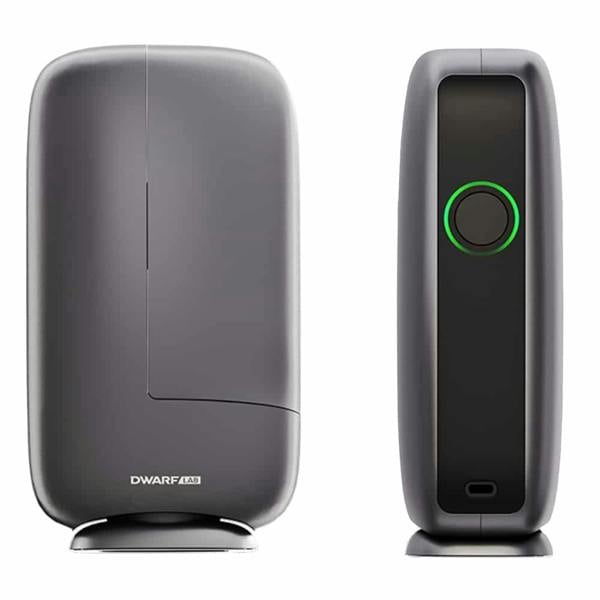

DwarfLab DWARF mini Smart Telescope

Compact enough for a backpack yet equipped for app-controlled imaging, the DwarfLab DWARF mini is a computerised smart telescope built around a 30mm aperture and an alt-azimuth mount. Its telephoto focal length is 150mm, with an equivalent focal length of 1016mm, and the integrated Sony IMX662 sensor records images at 1920 x 1080 resolution. At 840g, it is a notably portable option for beginners and for anyone focused on astrophotography with a lightweight, connected setup.

Automatic calibration, focusing and GoTo target location streamline the process from setup to capture, while automatic tracking keeps celestial subjects centred. The DWARF mini supports EQ mode for exposures up to 90 seconds and works with a smartphone or tablet via Wi-Fi or USB. Internal 64GB eMMC storage, a built-in 7,000mAh battery and support for external USB charging complete a self-contained system for imaging the Moon, nebulae, galaxies and the Milky Way.

Key features

• 30mm aperture smart telescope with computerised GoTo alt-azimuth mount
• 150mm telephoto focal length with 1016mm equivalent focal length
• Sony IMX662 sensor with 1920 x 1080 resolution
• Automatic focusing, calibration, target location and tracking
• Supports EQ mode for exposures up to 90 seconds
• 64GB eMMC internal storage
• Built-in 7,000mAh battery with external USB charging support
• Wi-Fi and USB connectivity with iOS and Android compatibility
• Built-in Astro, Dark and Due Band filters
• Model number: Es-dwarfmini

Specifications

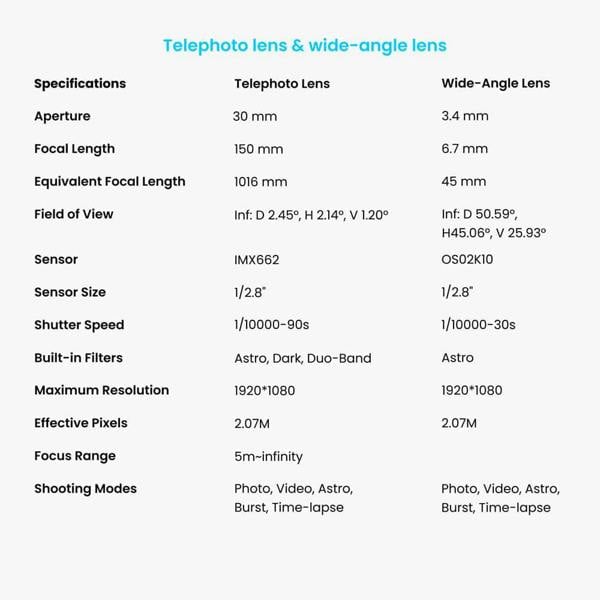

Optics

• Optical design: Smart telescope
• Aperture: 30mm
• Focal length of the telephoto: 150mm
• Equivalent focal length: 1016mm (Tele), 45mm (Wide)
• Field of view: 2. 45 (Tele), 50 (Wide)
• Working distance: 5m~∞
• Built-in filters: Astro, Dark, Due Band

Imaging

• Sensor: Sony IMX662
• Sensor size: 1/2. 8 inch
• Pixel size: 2. 9μm
• Effective pixels: 2. 07M
• Maximum resolution: 1920 x 1080
• Storage format: JPEG, MP4 (FITS/TIFF)
• Display: User's smartphone or tablet

Connectivity and power

• Connectivity: Wi-Fi and USB (15m in open environment)
• Compatible system: iOS and Android
• Storage: 64GB eMMC included
• Built-in battery: 7,000mAh
• Battery life: 4 hours (Astrophotography)
• Charging time: 100 min (Full Charge)
• Charging power: 22W
• Charging port: Type-C
• USB protocol: USB2. 0
• Max Wi-Fi transmission speed: 433 Mbps

Operation

• Mount type: Alt-azimuth
• Electronics: Computerised GoTo
• Lens barrel rotation: 225 rotatable
• Pan/tilt rotation: 360
• Operating temperature: -20~45C
• Charging temperature: 0~45C
• Weight: 840g
• Skill level: Beginner

Sizing

100. 4 × 60. 7 × 183. 6mm

In the box

• Solar (ND) filter
• Cleaning cloth
• C-C charging cable

Support & warranty

• 2-year warranty

Rackhams Reference : CI44MPBEYP
