Fixaball Split Cotter Pins A2 304 Stainless Steel 1mm - 4mm Diameters

For securing assembled components, these Fixaball split cotter pins are manufactured from A2/304 stainless steel and conform to DIN 94. The range covers diameters from 1mm to 4mm, with multiple length options available to suit different fixing requirements.

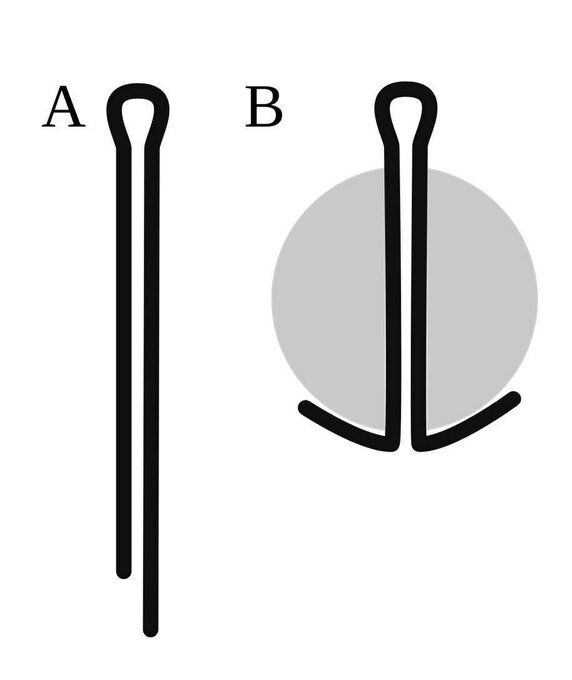

Each pin is formed from thick wire with a half-circular cross section and features two tines that are bent during installation. Lengths are measured from the underside of the head to the end.

Key features

• Diameter range: 1mm to 4mm
• Material: A2/304 stainless steel
• Standard: DIN 94
• Formed from thick wire with a half-circular cross section
• Two-tine split pin construction

Available options

• 1.0 x 10
• 1.0 x 20
• 1.6 x 20
• 1.6 x 25
• 2.0 x 20
• 2.0 x 25
• 2.0 x 36
• 2.5 x 25
• 2.5 x 36
• 2.5 x 50
• 3.2 x 25
• 3.2 x 36
• 3.2 x 50
• 4.0 x 25
• 4.0 x 36
• 4.0 x 50

Sizing

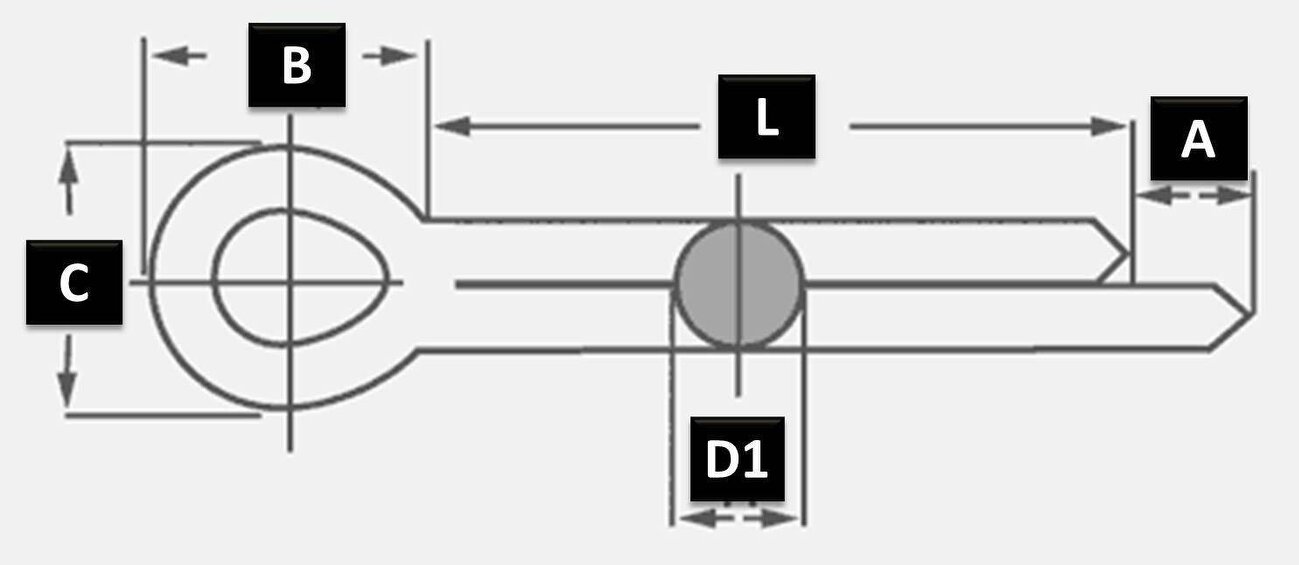

Lengths are measured from the underside of the head to the end.

Rackhams Reference : 81JRPY38BR
