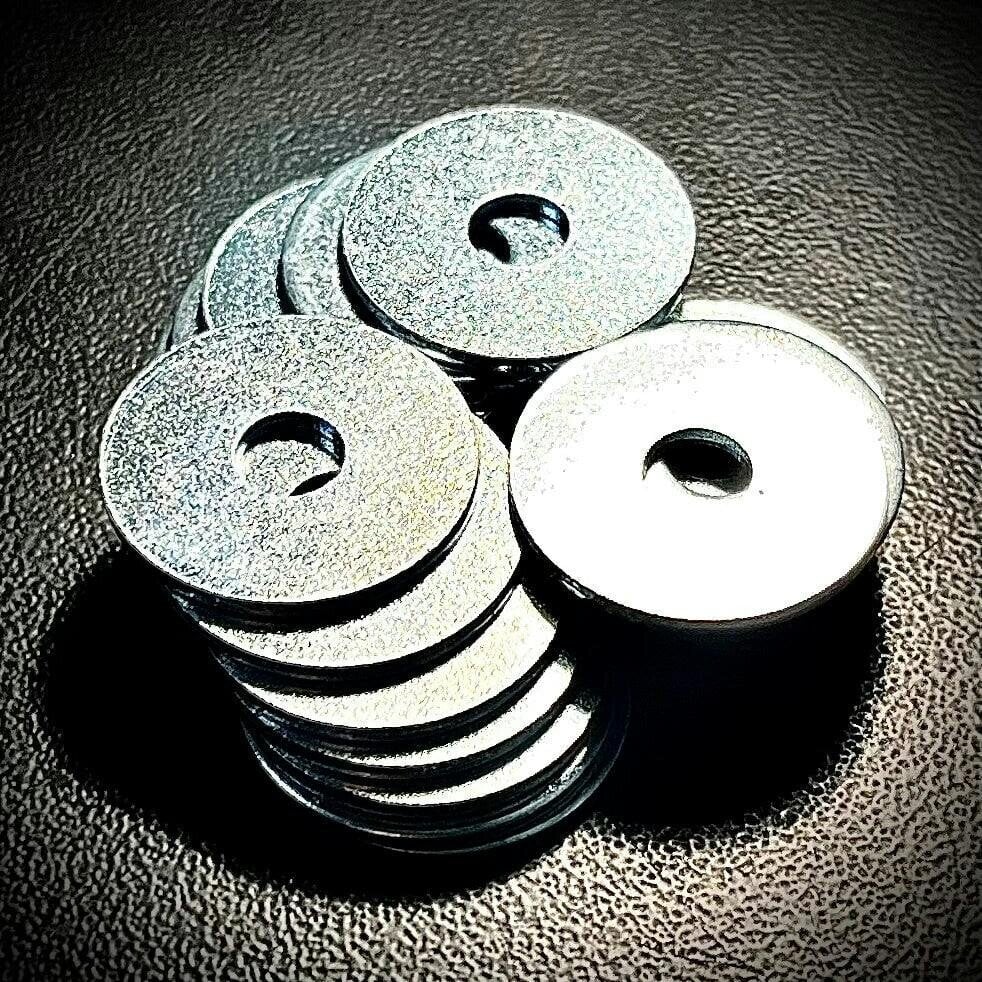

Fixaball Imperial Penny Repair Washers BZP Zinc DIN9021 1/4" 5/16" 3/8" 7/16"

For load spreading across a wider surface area, these Fixaball mudguard repair penny washers are finished in bright zinc plate and made to DIN 9021 and ISO 7093. They are suited to use with threaded fasteners such as bolts and nuts, with a particularly large outside diameter that helps bridge damaged or oversized holes.

This range covers imperial sizes with metric equivalents, offering options to suit 1/4", 5/16", 3/8" and 1/2" I.D. applications. Each washer is 1.5mm thick.

Key features

• Bright zinc plated finish
• DIN 9021 and ISO 7093
• Particularly large outside diameter
• Suitable for use with threaded fasteners including bolts and nuts
• Helps spread tightening load over a greater area than a conventional flat washer

Available options

• 1/4" I.D - M6 x 25 x (1.5mm thick)
• 1/4" I.D - M6 x 30 x (1.5mm thick)
• 1/4" I.D - M6 x 40 x (1.5mm thick)
• 1/4" I.D - M6 x 50 x (1.5mm thick)
• 5/16" I.D - M8 x 25 x (1.5mm thick)
• 5/16" I.D - M8 x 30 x (1.5mm thick)
• 5/16" I.D - M8 x 40 x (1.5mm thick)
• 5/16" I.D - M8 x 50 x (1.5mm thick)
• 3/8" I.D - M10 x 25 x (1.5mm thick)
• 3/8" I.D - M10 x 30 x (1.5mm thick)
• 3/8" I.D - M10 x 40 x (1.5mm thick)
• 3/8" I.D - M10 x 50 x (1.5mm thick)
• 1/2" I.D - M12 x 30 x (1.5mm thick)
• 1/2" I.D - M12 x 38 x (1.5mm thick)
• 1/2" I.D - M12 x 50 x (1.5mm thick)

Specifications

• 1/4" equivalent is M6 and the I.D is 0.35mm bigger
• 5/16" equivalent is M8 and the I.D is 0.06mm smaller
• 1/2" equivalent is M12 and the I.D is 0.7mm smaller
• 7/16" equivalent is M12 and the I.D is 0.89mm bigger

Sizing

• 1/4" I.D - M6 x 25 x (1.5mm thick)
• 1/4" I.D - M6 x 30 x (1.5mm thick)
• 1/4" I.D - M6 x 40 x (1.5mm thick)
• 1/4" I.D - M6 x 50 x (1.5mm thick)
• 5/16" I.D - M8 x 25 x (1.5mm thick)
• 5/16" I.D - M8 x 30 x (1.5mm thick)
• 5/16" I.D - M8 x 40 x (1.5mm thick)
• 5/16" I.D - M8 x 50 x (1.5mm thick)
• 3/8" I.D - M10 x 25 x (1.5mm thick)
• 3/8" I.D - M10 x 30 x (1.5mm thick)
• 3/8" I.D - M10 x 40 x (1.5mm thick)
• 3/8" I.D - M10 x 50 x (1.5mm thick)
• 1/2" I.D - M12 x 30 x (1.5mm thick)
• 1/2" I.D - M12 x 38 x (1.5mm thick)
• 1/2" I.D - M12 x 50 x (1.5mm thick)
